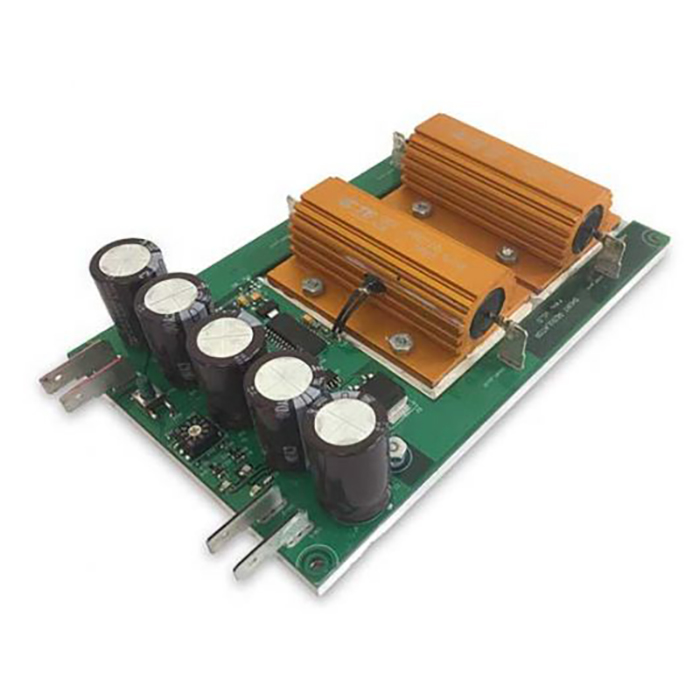

Dynamic Shunt Regulator (SR5K100V25R)


RBT-03123
The SR5K Shunt Regulator is a protection subsystem for dissipating the regenerative energy when braking or drastically reducing the speed of electric motors. During braking, the regenerative voltage can equal to or even exceed the supply voltage in some cases depending on the rotational inertia...

The SR5K Shunt Regulator is a protection subsystem for dissipating the regenerative energy when braking or drastically reducing the speed of electric motors.

During braking, the regenerative voltage can equal to or even exceed the supply voltage in some cases depending on the rotational inertia of the mechanical system, causing system failures or permanent damage to the power supply or/and the motor controller.

The SRK5K works by monitoring the system's supply's voltage and instantly applying a two-level resistive load during over voltage conditions to absorb up to 5 kilowatts of excess energy and bring voltages back to safe levels.

The SR5K has been designed to work in conjunction with a wide variety of power sources and motor controllers.

Specifications:

  • Dissipates Excess Back-EMF and Regeneration voltage to prevent system failure or damage.
  • 5000 Watt instantaneous, 200 Watts continuous load capability
  • Simple adjustment of nine preset shunt voltages thresholds from 12V to 100V
  • Overheat protection. Automatically disconnects when resistors are too hot.
