Temperature Sensor - TMP36

524 pc(s)
SEN-00772

$2.90

The TMP36 are low voltage, precision centigrade temperature sensors. They provide a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 do not require any external calibration to provide typical accuracies of ±1°C at +25°C and...
+

The TMP36 are low voltage, precision centigrade temperature sensors. They provide a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 do not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the −40°C to +125°C temperature range.

The low output impedance of the TMP36 and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs. All three devices are intended for single-supply operation from 2.7 V to 5.5 V maximum. The supply current runs well below 50 μA, providing very low self-heating - less than 0.1°C in still air.

The TMP36 is specified from −40°C to +125°C, provides a 750 mV output at 25°C, and operates to 125°C from a single 2.7 V supply. The TMP36 have an output scale factor of 10 mV/°C.

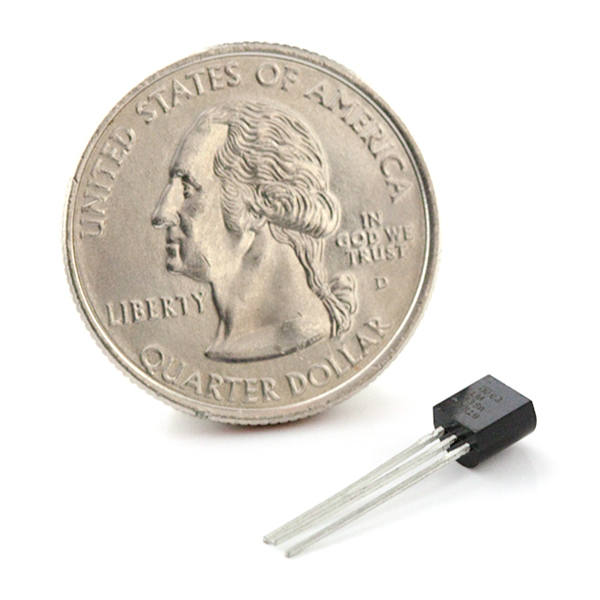

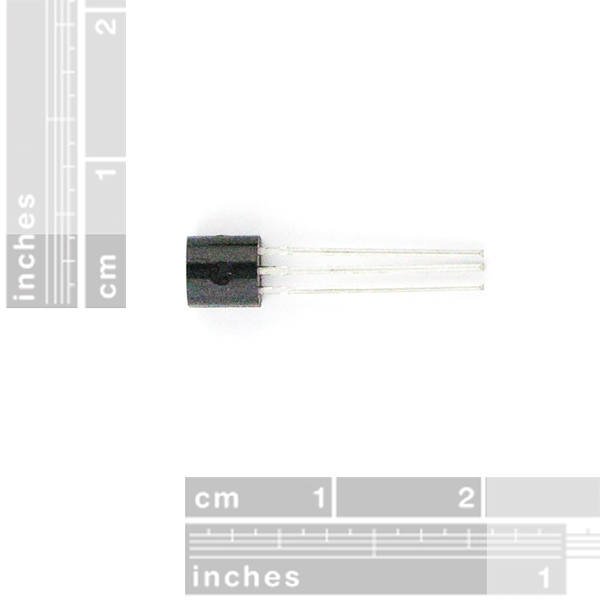

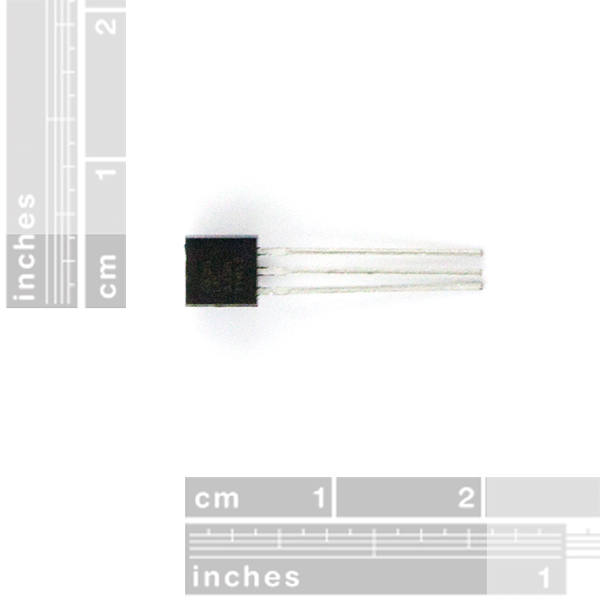

Comes in a through-hole, TO-92 package.

Features:

  • Low voltage operation (2.7 V to 5.5 V)
  • Calibrated directly in °C
  • 10 mV/°C scale factor
  • ±2°C accuracy over temperature (typ)
  • ±0.5°C linearity (typ)
  • Stable with large capacitive loads
  • Specified −40°C to +125°C
  • Less than 50 μA quiescent current
  • Low self-heating
