LED - RGB Clear Common Cathode - 5mm

1131 pc(s)
DIS-00754

$1.90

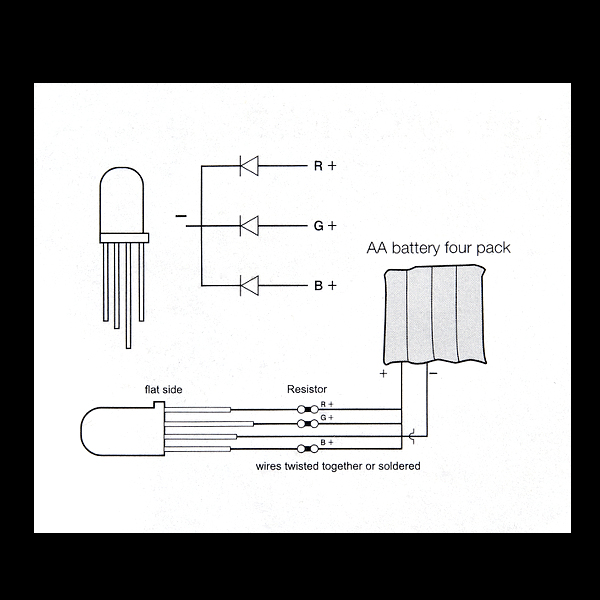

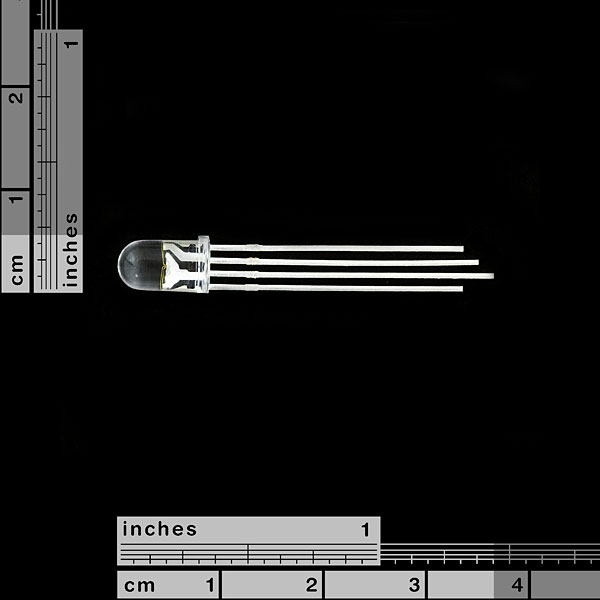

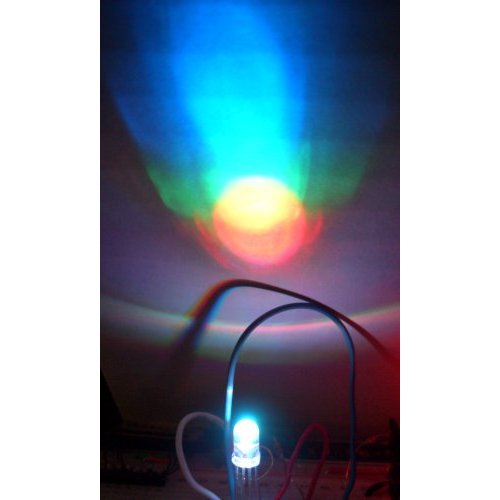

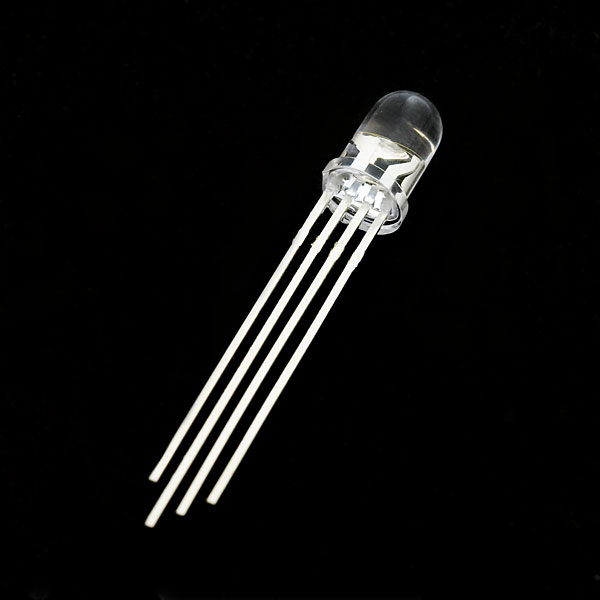

Ever hear of a thing called RGB? Red, Green, Blue? How about an RGB LED? These 5mm units have four pins - Cathode is the longest pin. One for each color and a common cathode. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Features:...
+

Ever hear of a thing called RGB? Red, Green, Blue? How about an RGB LED? These 5mm units have four pins - Cathode is the longest pin. One for each color and a common cathode. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors!

Features:

  • Forward Voltage (RGB): (2.0, 3.2, 3.2)V
  • Luminosity (RGB): (800, 4000, 900)mcd
  • Resistor value (RGB):(330, 150, 150) ohms
  • Standard size - T1 3/4 5mm
  • Max current 20mA
