Pololu 5V, 15A Step-Down Voltage Regulator D24V150F5

2 pc(s)
PWD-03250

$55.95

This synchronous switching step-down (or buck) regulator takes an input voltage of up to 40 V and efficiently reduces it to 5 V with an available output current of around 15 A. Typical efficiencies of 80% to 95% along with its high current capabilities make this regulator well suited for...
+

This synchronous switching step-down (or buck) regulator takes an input voltage of up to 40 V and efficiently reduces it to 5 V with an available output current of around 15 A. Typical efficiencies of 80% to 95% along with its high current capabilities make this regulator well suited for powering large loads. The regulator features reverse voltage protection and a power-good output that indicates when the regulator cannot adequately maintain the output voltage.

Specifications:

  • Minimum operating voltage: 6V
  • Maximum operating voltage: 40V

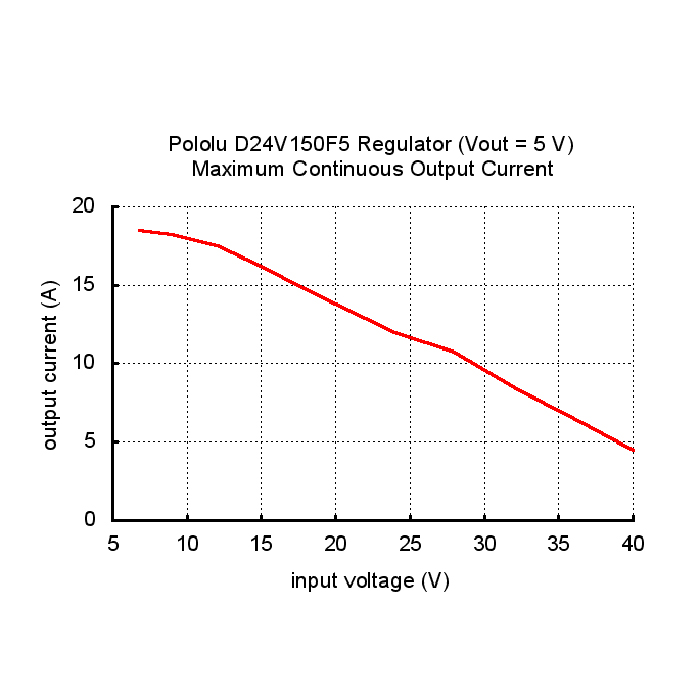

  • Maximum output current: 15A
  • Output voltage: 5V
  • Reverse voltage protection: Yes
  • Maximum quiescent current: 100 mA
  • Typical efficiency of 80% to 95%

Documents:

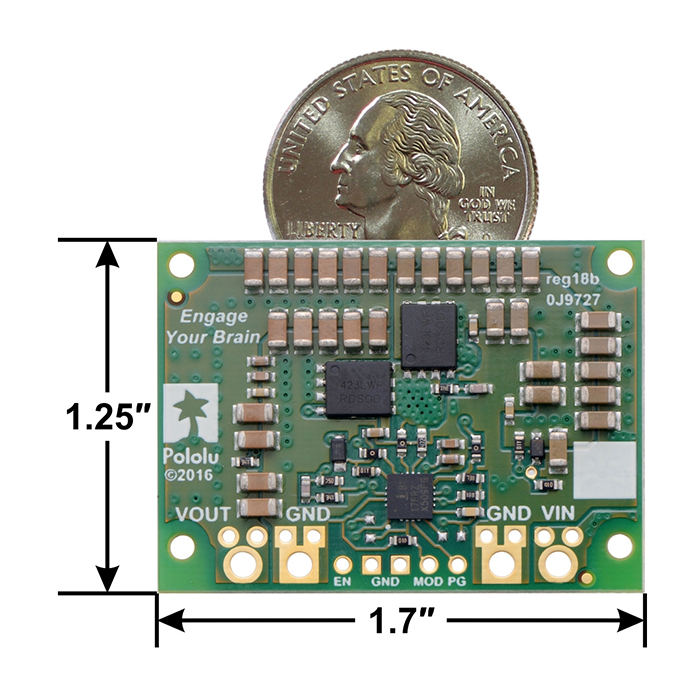

Dimensions:

  • 1.7″ × 1.25″ × 0.43″
