Line Follower Array

28 pc(s)
SEN-03236

$9.95

This SGBotic Line Follower Array gives your robot the ability to follow a dark line on a white background or vice-versa. It has four IR sensors that have been configured to output digital signal. The array features visible LEDs which turn on when the sensors detect reflected IR light. You...
+

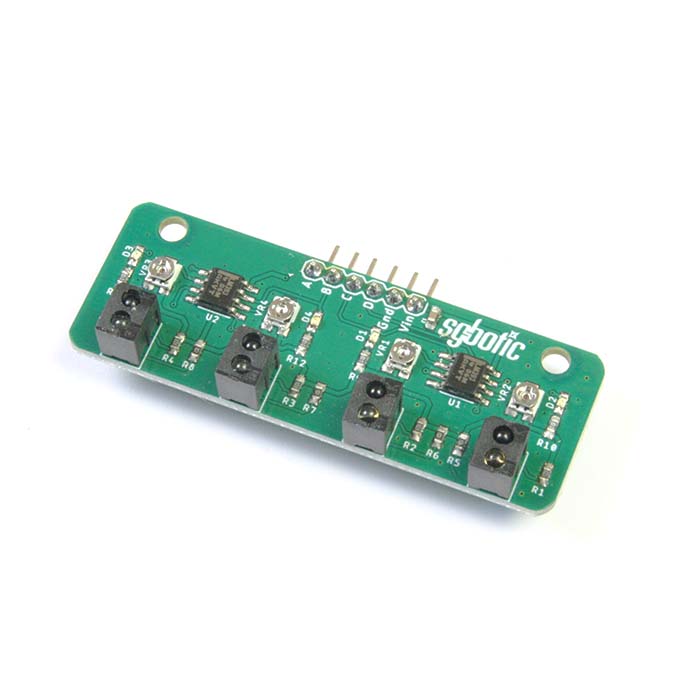

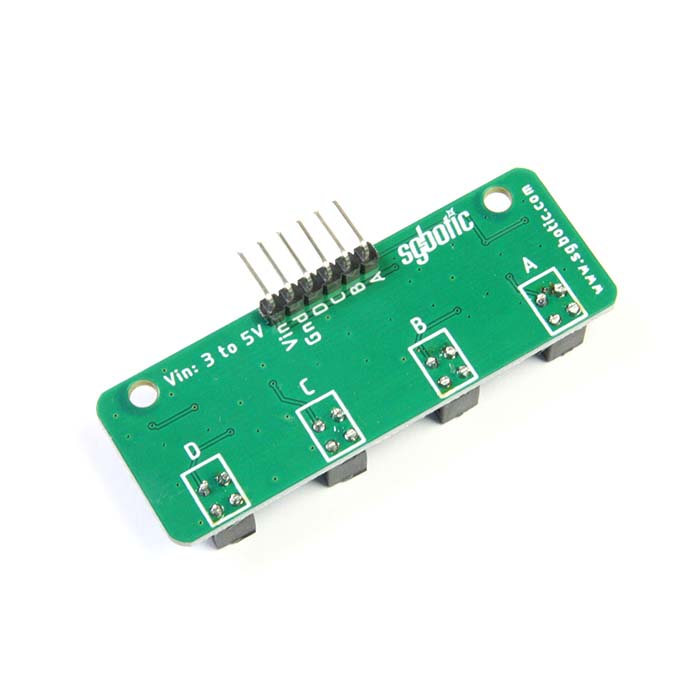

This SGBotic Line Follower Array gives your robot the ability to follow a dark line on a white background or vice-versa. It has four IR sensors that have been configured to output digital signal. The array features visible LEDs which turn on when the sensors detect reflected IR light. You can also adjust the detecting sensibility using the on-board potentiometer to adapt the array to different surroundings and detecting heights.

The Line Follower Array is fully assembled, no soldering is required.

Notes: Copper standoff, nuts and screws are available separately.

Features:

  • 3V and 5VDC operating voltage
  • Maximum sensing distance (white surface): approx. 30mm
  • Digital output (logic 0 and 1)

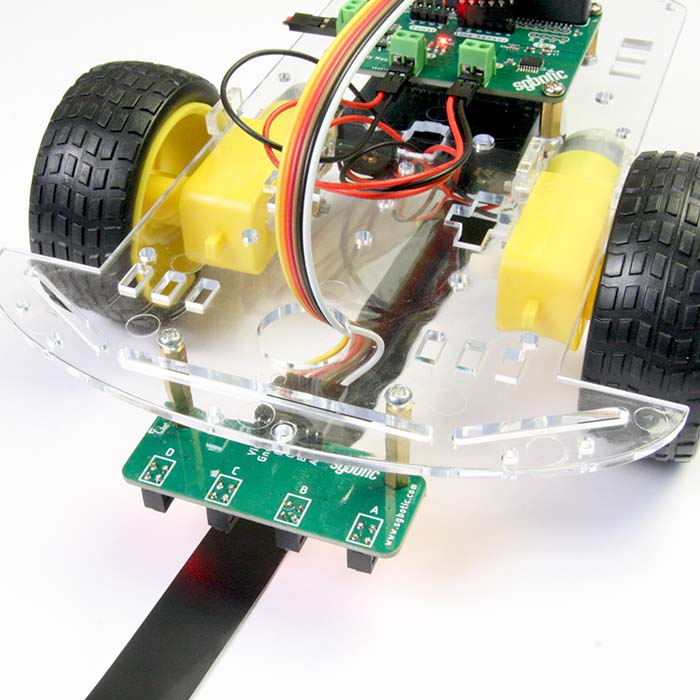

  • Designed to fix directly to our 2WD Robot Chassis Kit. Can be used with other robot chassis.

Documents:

Dimensions: 60(L) x 21.6(W) x 9.6(H)mm
