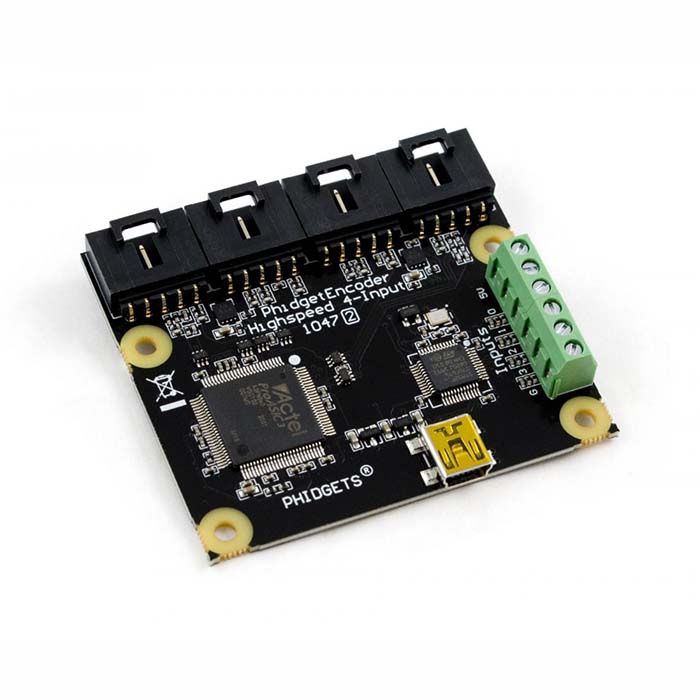

1047_2B - PhidgetEncoder HighSpeed 4-Input

4 pc(s)
DEV-03235

$175.00

The PhidgetEncoder Highspeed 4-Input interfaces with any 5V quadrature encoder. A quadrature encoder is the most commonly used feedback device for a DC or stepper motor. With an encoder, you can keep track of how far your motor has turned, which then allows you to control the position and...
+

The PhidgetEncoder Highspeed 4-Input interfaces with any 5V quadrature encoder. A quadrature encoder is the most commonly used feedback device for a DC or stepper motor. With an encoder, you can keep track of how far your motor has turned, which then allows you to control the position and velocity in your code. This Phidget device connects to your computer via USB.

Note: Due to parts and components going obsolete and becoming unavailable, the 1047_2B has moved to a new processor that is not supported under Phidget21. If you're using our old libraries you must upgrade to Phidget22 before you can make use of this Phidget device.

Includes:

  • 1x PhidgetEncoder HighSpeed 4-Input board
  • 4x M3 Bolts (2cm Length)
  • 4x Plastic spacers (5mm Length)
  • 4x M3 Nuts

Features

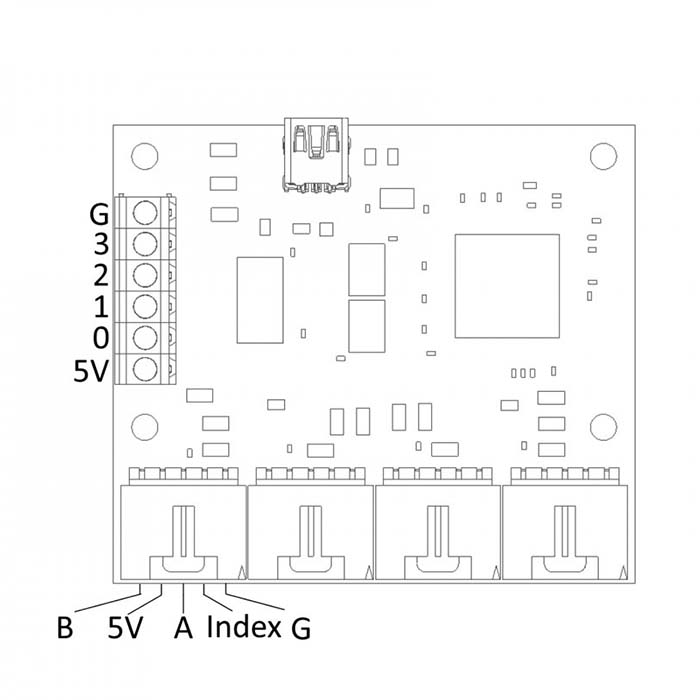

  • Four digital inputs for reading limit switches or buttons
  • Works with all 0-5V quadrature encoders - simultaneously read four incremental encoders with line driver, open collector, or push-pull output circuits
  • Read at speeds of up to 250,000 quadrature cycles per second
  • Power Saving Options - You can turn it off via software when it's not turning. While disabled, this board draws 30mA of current.
  • Reports a timestamp in milliseconds for each position change event, for easy velocity calculation.
