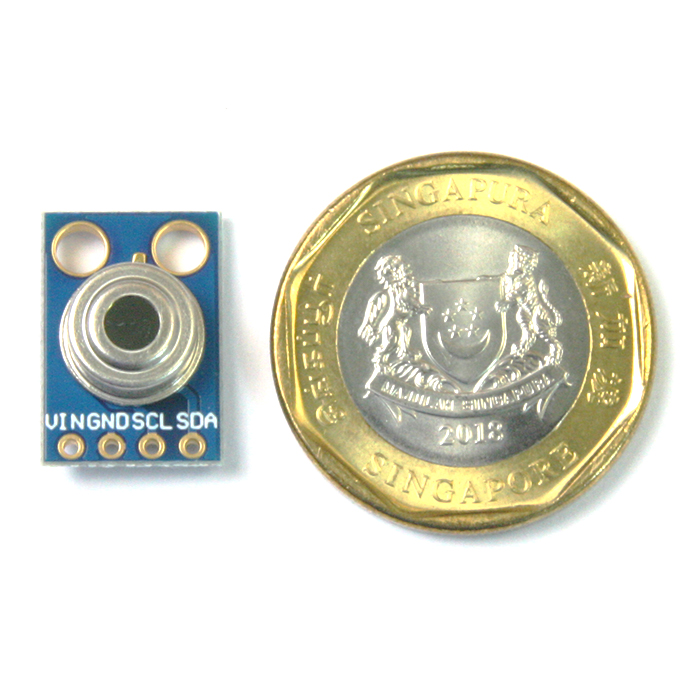

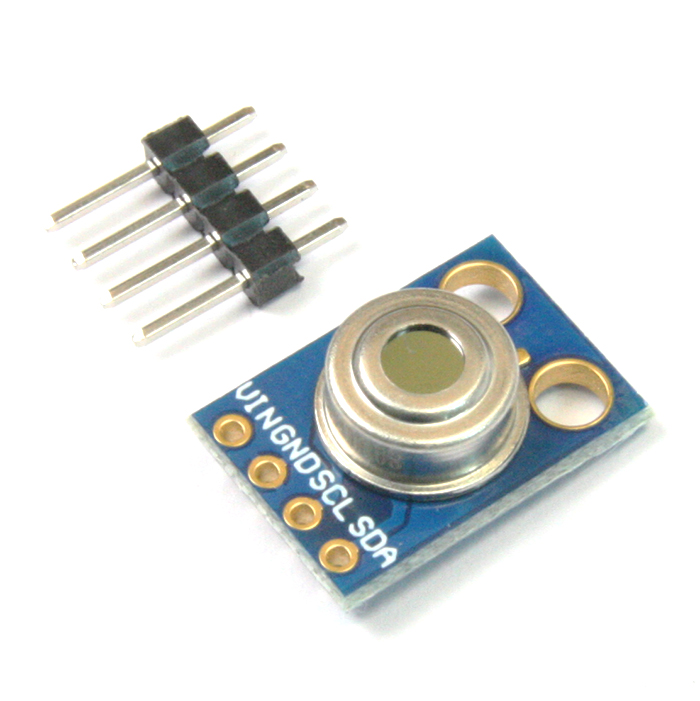

MLX90614 Non-Contact IR Temperature Sensor

The MLX90614 is a Contactless Infrared (IR) Digital Temperature Sensor that can be used to measure the surface temperature of a human body or other object.

Unlike most temperature sensors, this sensor measures infrared light bouncing off of remote objects so it can sense temperature without having to touch them physically. Simply point the sensor towards what you want to measure and it will detect the temperature by absorbing IR waves emitted. Because it doesn't have to touch the object it's measuring, it can sense a wider range of temperatures than most digital sensors!

The sensor takes measurement over a 90-degree field of view so it can be handy for determining the average temperature of an area.

The MLX90614 is factory calibrated in wide temperature ranges: -40 to 125 ˚C for the ambient temperature and -70 to 382.2 ˚C for the object temperature. The model used in this sensor is MLX90614ESF-BAA.

Features:

• Operating voltage: 3V to 5V
• Measuring object temperature range: -70°C ~ 382.2°C
• Measuring ambient temperature range: -40 to 125 ˚C
• Measurement accuracy at room temperature: ±0.5°C
• Field of view: 90°

Documents:

• Arduino sample code
• Datasheet (MLX90614)
