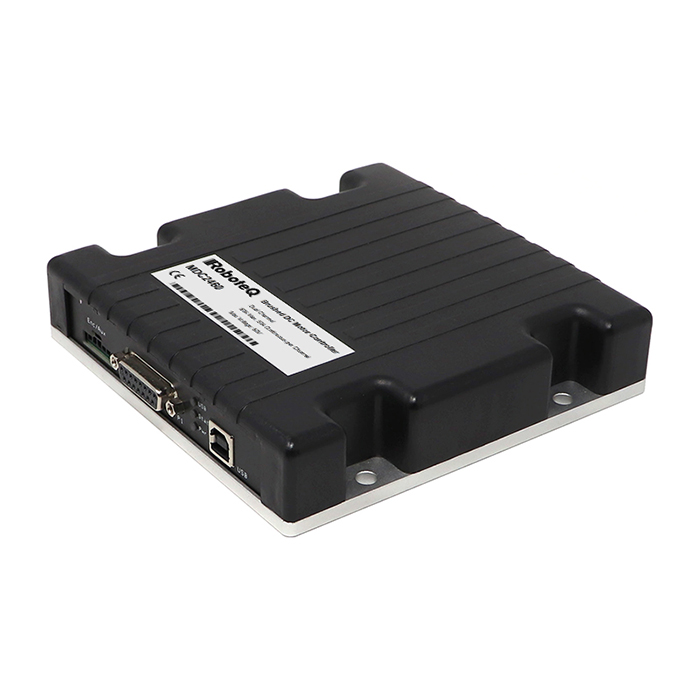

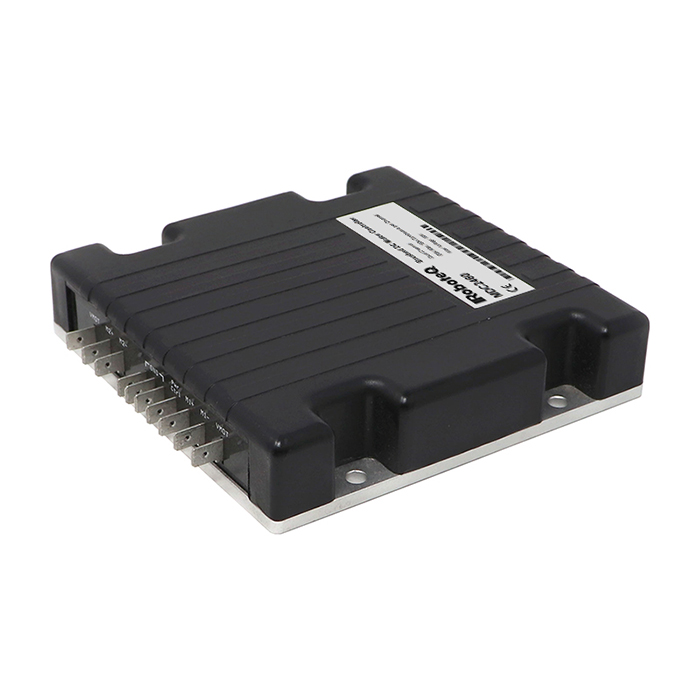

2 x 60A 60V Brushed DC Motor Controller (MDC2460)


RBT-03127
Roboteq 's MDC2460 controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is delivered with...

Roboteq's MDC2460 controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is delivered with all necessary cables and hardware, and is ready to use in minutes. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair.

The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The MDC2460 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions.

The controller's two motor channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion of each motor.

Numerous safety features are incorporated into the controller to ensure reliable and safe operation. The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

Specifications:

  • Power
    • Max Voltage: 60V
    • Number of Channels: 2
    • Max Amps per Channel: 60A
    • Continuous Amps per Channel: 50A
    • Power Connections: Fast on
  • Communication
    • RS232
    • USB
    • CANbus
  • Rotor Sensor
    • Encoder
  • Input/Outputs
    • Max Analog Inputs: 4
    • Max Digital Inputs: 6
    • Max Digital Outputs: 2
    • Max Pulse Inputs: 5
  • Mechanical
    • Cooling: Conduction plate
    • Dimensions: 140mm x 140mm x 25mm
    • Weight: 452g
