Graphic LCD 96x68 - HX1230

10 pc(s)
DIS-03051

$7.90

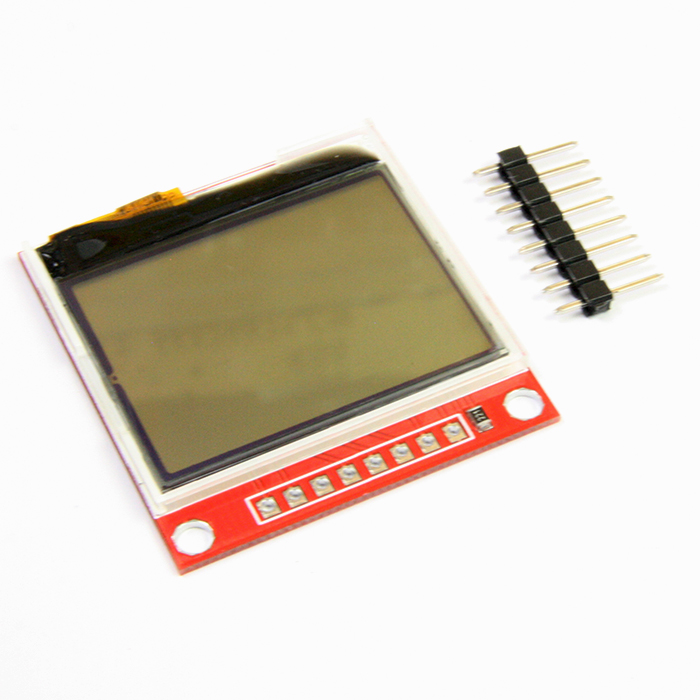

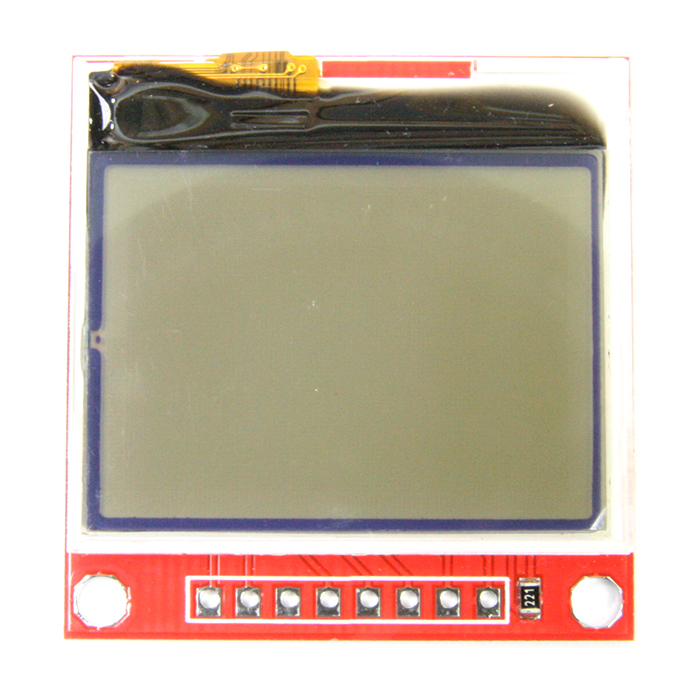

The HX1230 LCD is a basic graphic LCD screen originally intended for as a cell phone screen. It uses the HX1230 controller. The HX1230 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 68 rows and 96 columns. The HX1230 requires four I/O pins for interfacing and...
+

The HX1230 LCD is a basic graphic LCD screen originally intended for as a cell phone screen. It uses the HX1230 controller. The HX1230 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 68 rows and 96 columns. The HX1230 requires four I/O pins for interfacing and support single LED backlight, resulting in low power consumption.

The HX1230 interfaces to microcontrollers through a serial bus interface.

NOTE: There may be small blemishes on these screens as they are surplus.

Features:

  • Supply voltage: 2.7V to 5V
  • Requires 4 I/O pins
  • Single LED backlight
  • Serial bus interface with speed up to 4Mbit/s
  • Low power consumption

Documents:

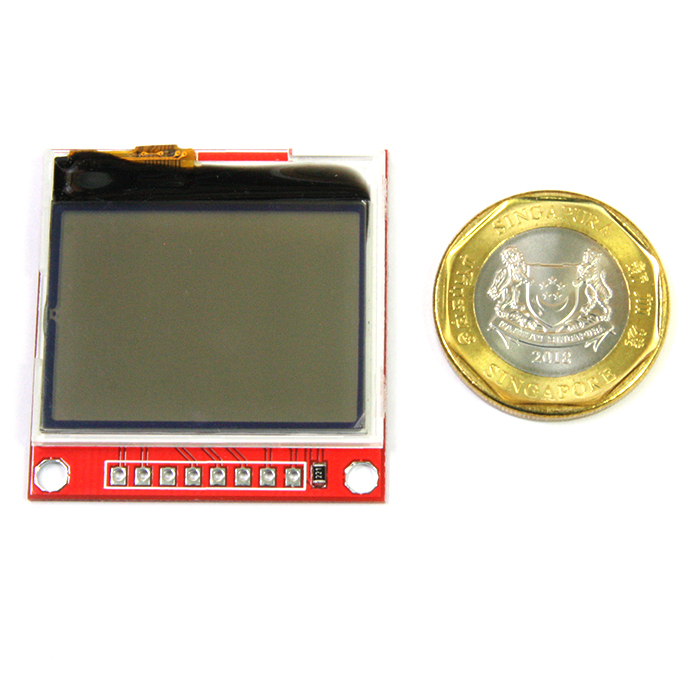

Dimensions:

  • PCB: 45mm x46.mm
  • Screen: 33mm x 29mm
