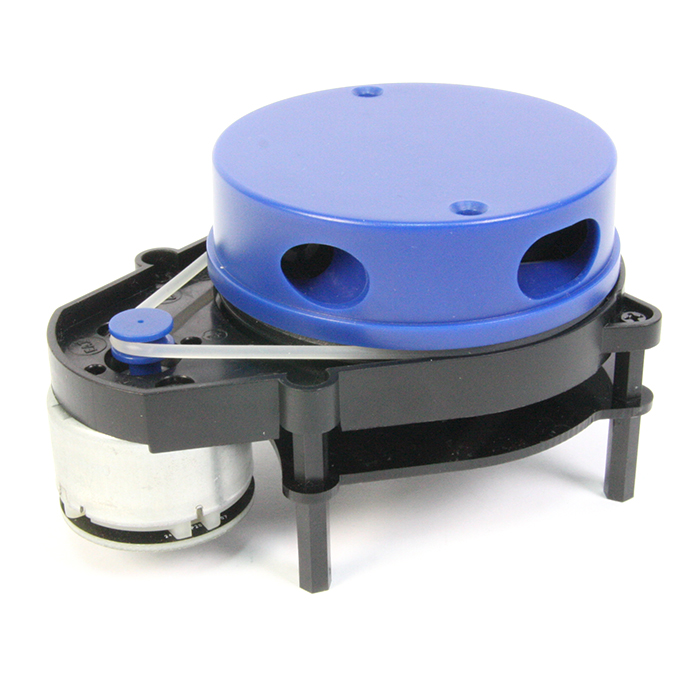

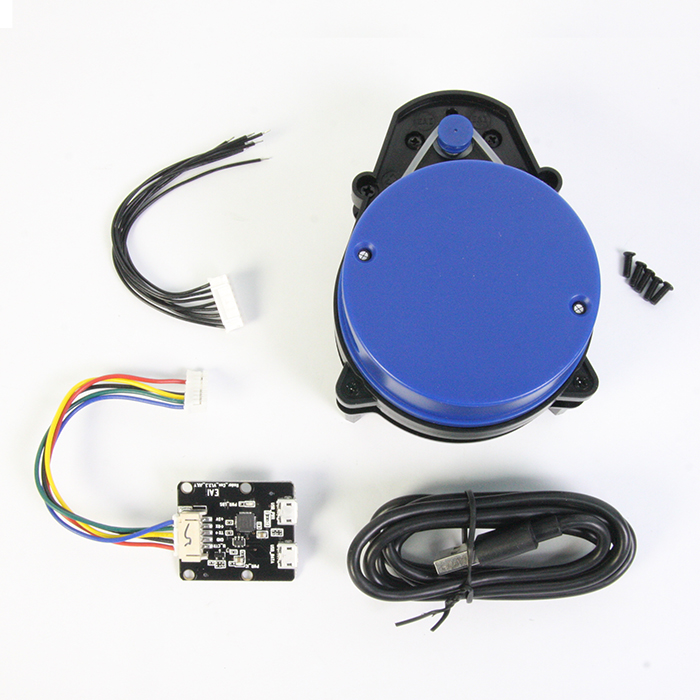

YDLIDAR X4 360° Laser Scanner - 10 Meters

6 pc(s)
SEN-03021

$155.00

IMPORTANT: This version (X4), with maximum laser power of 5mW, is a class 3a laser apparatus and does not require license to possess or use. The YDLIDAR X4 360° Laser Scanner is the low cost 360 degree two-dimensional LiDAR. This product can perform 360 degree scan within 10-meter...
+

IMPORTANT: This version (X4), with maximum laser power of 5mW, is a class 3a laser apparatus and does not require license to possess or use.

The YDLIDAR X4 360° Laser Scanner is the low cost 360 degree two-dimensional LiDAR. This product can perform 360 degree scan within 10-meter range. It is based on the principle of triangulation distance measurement, together with the relevant optical, electrical, algorithm design, to achieve high-frequency high-precision distance measurement.The produced 2D point cloud data can be used in mapping, localization and object/environment modeling.

The X4 is an inexpensive solution for projects that require obstacle detection, obstacle avoidance, and/or distance measurements. This product is ROS ready. The ROS package source can be found below.

NOTE: The YDLIDAR X4 works with supply voltage of 5VDC, however, the logic level of TX/RX and MOTOCTL pin is 3.3V and is not 5V tolerant. A Logic Level Converter is recommended if connect directly to a 5V device (e.g Arduino Uno and Mega).

Features:

  • 360° Scanning Range
  • High accuracy, stable performance
  • 10meter Range
  • Strong ability to resist environmental light interference
  • Thin design, long life span
  • FDA Class I Laser Safety
  • Configurable Motor Speed, 6Hz~12Hz
  • Sample Frequency 5000Hz
