Diaphragm Liquid Pump (6V to 12VDC)

10 pc(s)
RBT-03012

$4.50

Looking for a battery powered liquid pump? This non-submersible diaphragm liquid pump will operates between DC 6V to 12V. You can PWM the motor to speed up or slow down the flow rate. Works great with motor driver or a simple relay. Each diaphragm liquid pump comes with a pair of...
+

Looking for a battery powered liquid pump? This non-submersible diaphragm liquid pump will operates between DC 6V to 12V. You can PWM the motor to speed up or slow down the flow rate. Works great with motor driver or a simple relay.

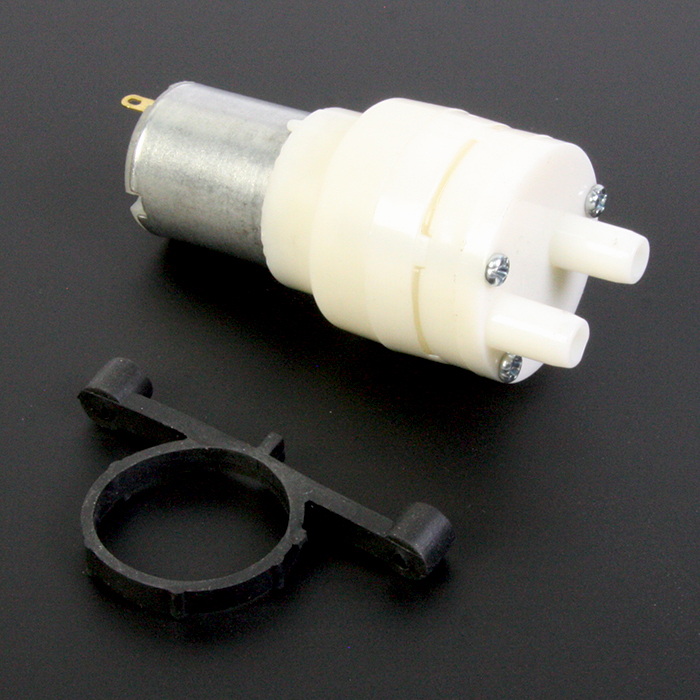

Each diaphragm liquid pump comes with a pair of rubber ring for mounting and to minimize noise and vibration.

This liquid pump works with 7x9mm Silicone tubing.

Note: Do not operate against closed valves on the discharge side of the pump - the pump will continues to produce flow and the pressure in the discharge line will increase until the line bursts or the pump is severely damaged - or both.

Features:

  • Rated Voltage: 6V to 12VDC
  • Rated Current: 0.17A
  • Flow Rate: ~1.0 to 2.0L/min
  • Water Inlet / Outlet Inner Diameter : 4.5 mm

Dimensions: 65(L) x 34.2(W)
