ACHS-7123 Current Sensor Carrier -30A to +30A

5 pc(s)
SEN-03000

$6.95

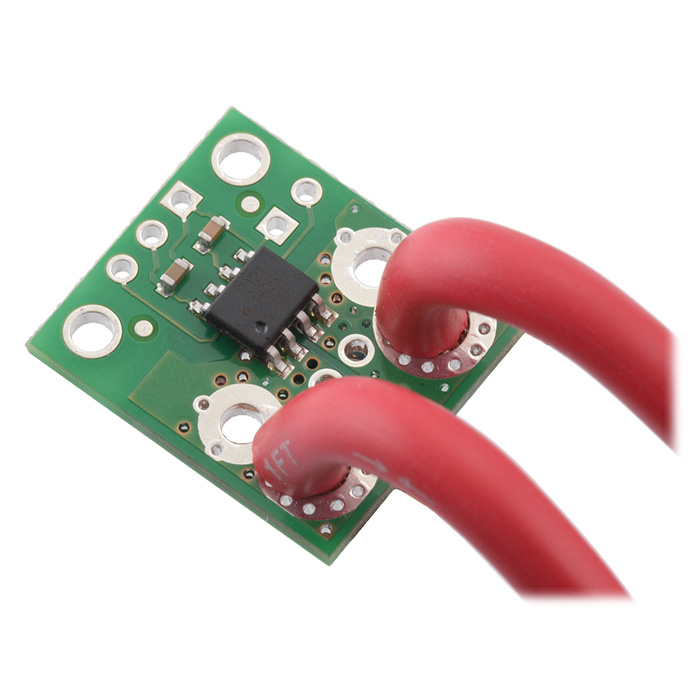

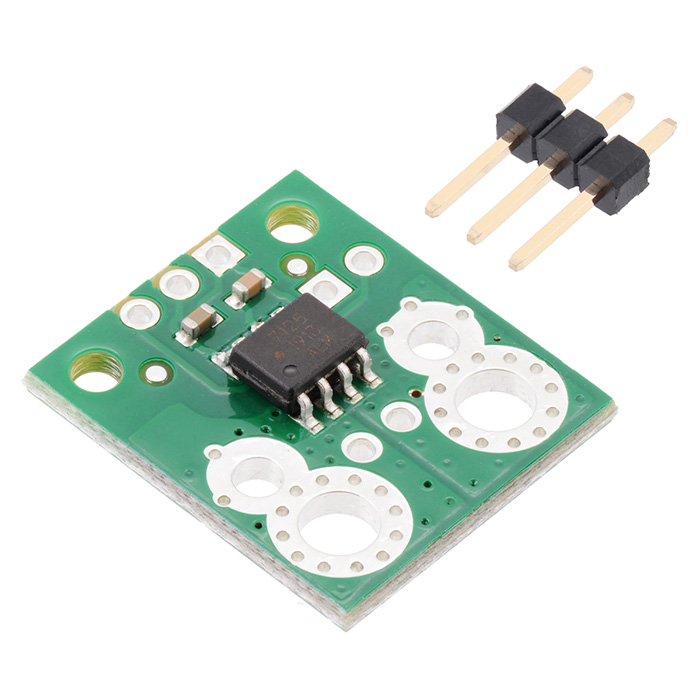

This board is a simple carrier of Broadcom's bidirectional ± 30A ACHS-7123 Hall effect-based linear current sensor, which offers a low-resistance (~0.7 mΩ) current path and electrical isolation up to 3 kV RMS. This version accepts a bidirectional current input with a magnitude up to 20 A...
+

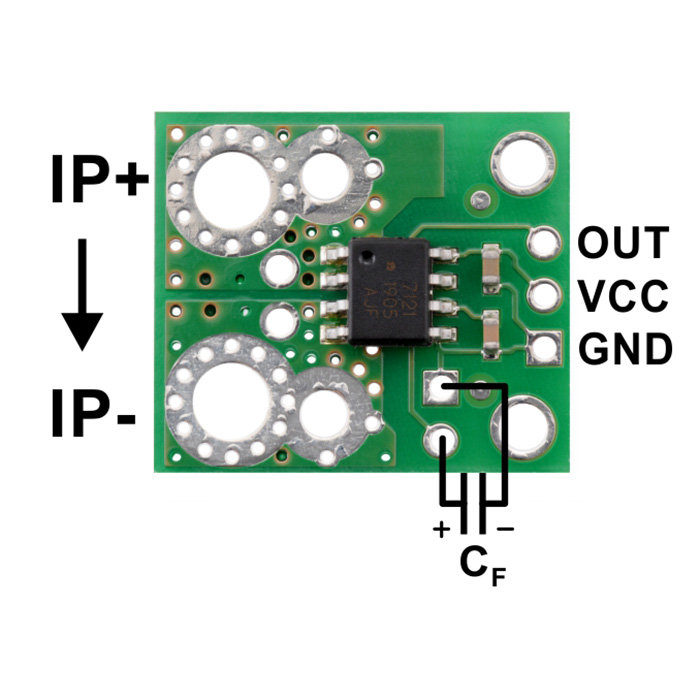

This board is a simple carrier of Broadcom's bidirectional ±30A ACHS-7123 Hall effect-based linear current sensor, which offers a low-resistance (~0.7 mΩ) current path and electrical isolation up to 3 kV RMS. This version accepts a bidirectional current input with a magnitude up to 20 A and outputs a proportional analog voltage (66 mV/A) centered at 2.5 V with a typical error of ±1.5%. It operates from 4.5 V to 5.5 V and is intended for use in 5 V systems.

Features:

  • Current sense: 0.066V/A
  • Minimum logic voltage: 4.5V
  • Maximum logic voltage: 5.5V
  • Supply current: 15mA

Documents:

Dimensions: 0.7" x 0.8"
