ACHS-7124 Current Sensor Carrier -40A to +40A

5 pc(s)
SEN-02998

$6.95

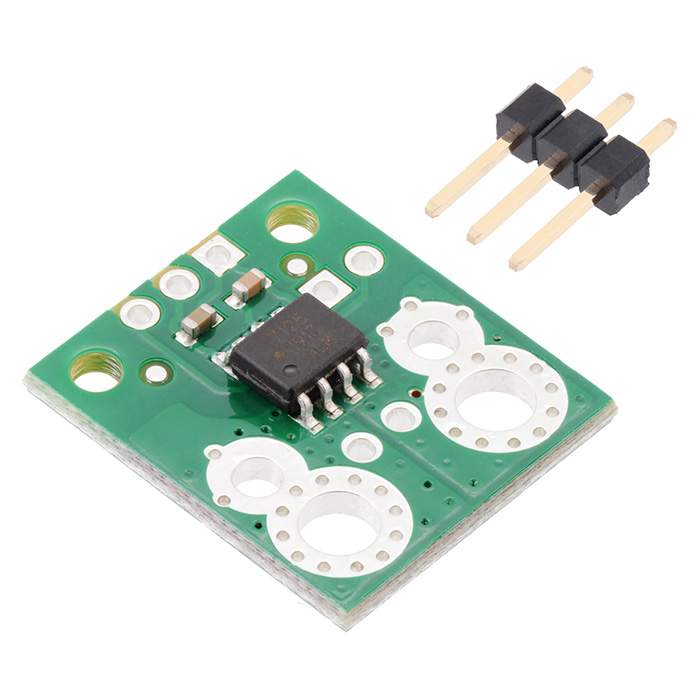

This board is a simple carrier of Broadcom's bidirectional ±40A ACHS-7124 Hall effect-based linear current sensor, which offers a low-resistance (~0.7 mΩ) current path and electrical isolation up to 3 kV RMS. This version accepts a bidirectional current input with a magnitude up to 40A and...
+

This board is a simple carrier of Broadcom's bidirectional ±40A ACHS-7124 Hall effect-based linear current sensor, which offers a low-resistance (~0.7 mΩ) current path and electrical isolation up to 3 kV RMS. This version accepts a bidirectional current input with a magnitude up to 40A and outputs a proportional analog voltage (50 mV/A) centered at 2.5 V with a typical error of ±1.5%. It operates from 4.5 V to 5.5 V and is intended for use in 5 V systems.

Features:

  • Current sense: 0.050V/A
  • Minimum logic voltage: 4.5V
  • Maximum logic voltage: 5.5V
  • Supply current: 15mA
