VL6180X ToF Distance Sensor Carrier with Voltage Regulator, 60cm Max

8 pc(s)
SEN-02995

$16.80

This sensor is a carrier/breakout board for ST's VL6180X proximity and ambient light sensor, which measures the range to a target object up to 20 cm away (or 60 cm with reduced resolution ). The VL6180X uses time-of-flight measurements of infrared pulses for ranging, allowing it to give...
+

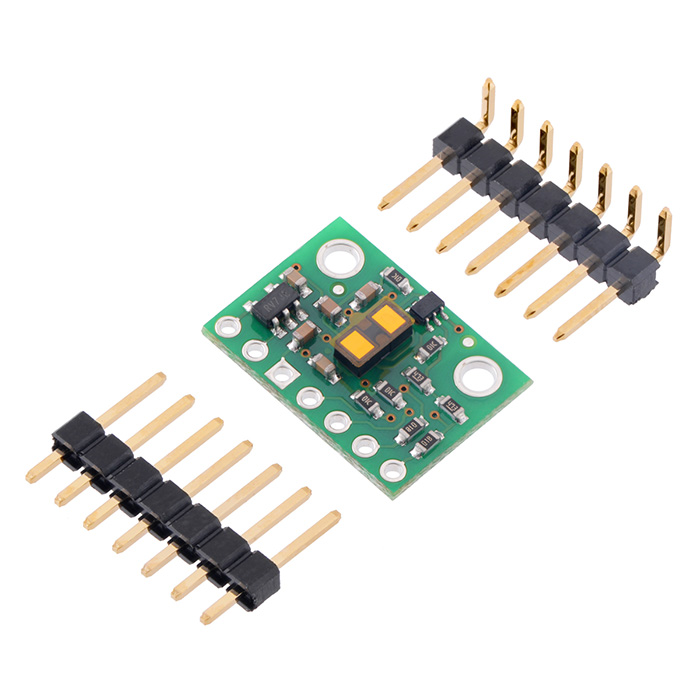

This sensor is a carrier/breakout board for ST's VL6180X proximity and ambient light sensor, which measures the range to a target object up to 20 cm away (or 60 cm with reduced resolution). The VL6180X uses time-of-flight measurements of infrared pulses for ranging, allowing it to give accurate results independent of the target's color and surface.

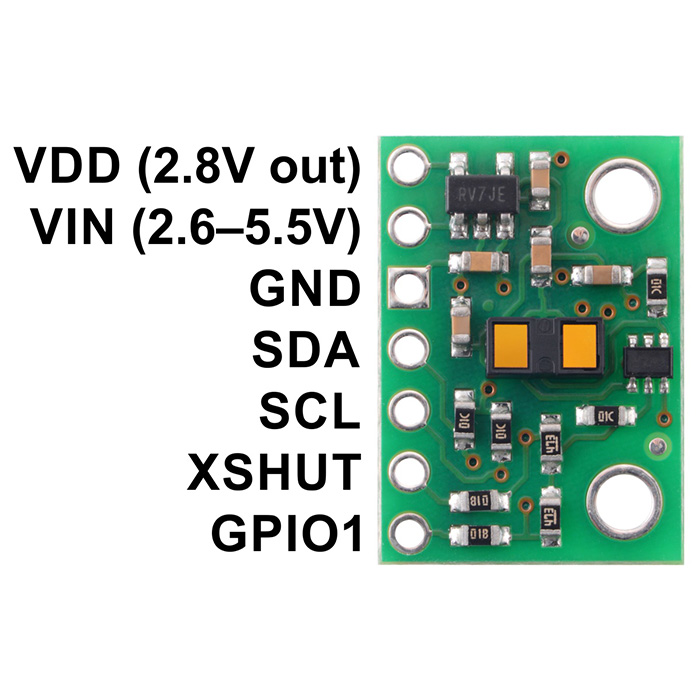

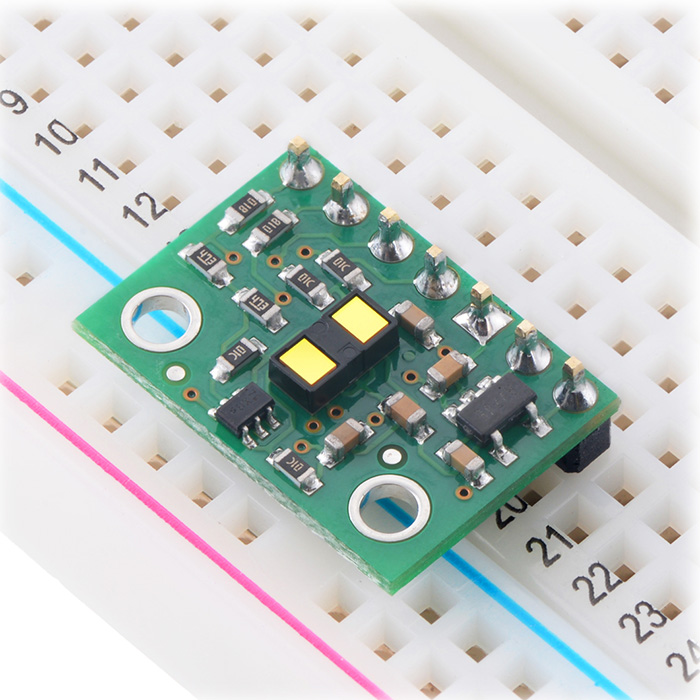

Distance and ambient light level measurements can be read through a digital I²C interface. The board has a 2.8 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 2.7 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Features:

  • Resolution: 1 mm
  • Maximum range: 60 cm
  • Interface: I²C
  • Minimum operating voltage: 2.7 V
  • Maximum operating voltage: 5.5 V

Documents:

Dimensions: 17.8(L) x 12.7(W) x 2.2(H)mm
