Dual MAX14870 Motor Driver for Raspberry Pi

1 pc(s)
DEV-02993

$25.00

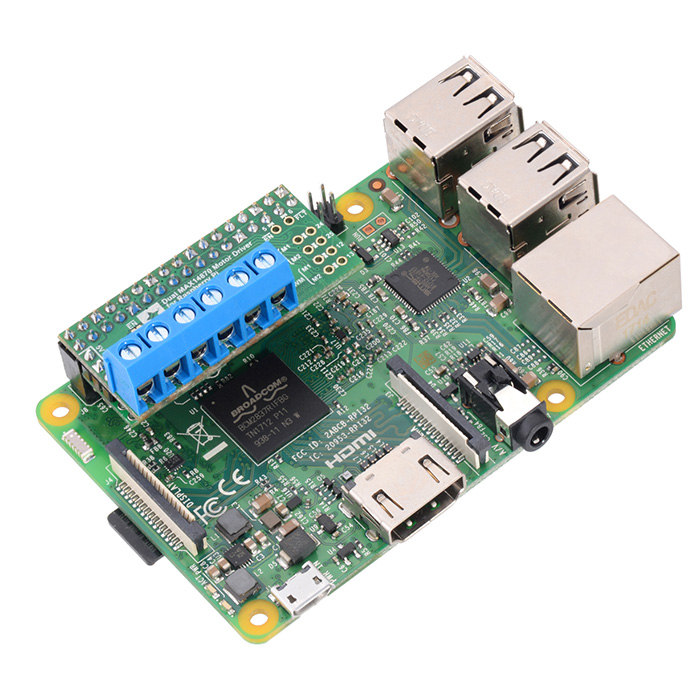

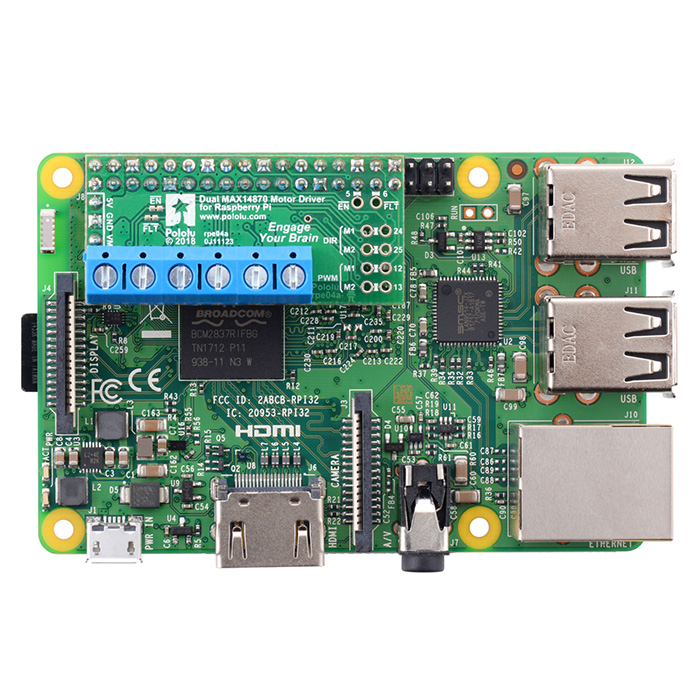

This motor driver expansion board and its corresponding Python library make it easy to control a pair of bidirectional, brushed DC motors with a compatible Raspberry Pi (Model B+ or newer), including the Pi 3 Model B+ and Model A+. The expansion board features two MAX14870 H-bridge motor...
+

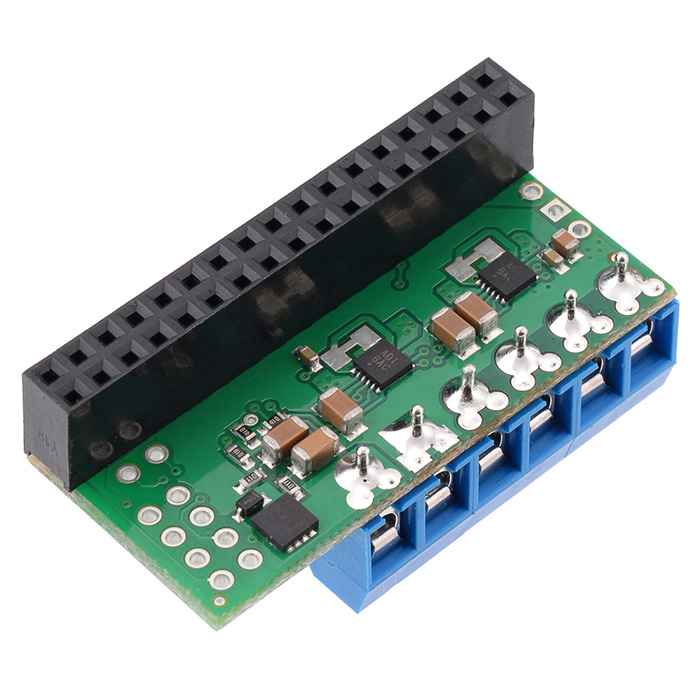

This motor driver expansion board and its corresponding Python library make it easy to control a pair of bidirectional, brushed DC motors with a compatible Raspberry Pi (Model B+ or newer), including the Pi 3 Model B+ and Model A+. The expansion board features two MAX14870 H-bridge motor driver ICs from Maxim, which allow it to operate from 4.5 V to 36 V and make it well suited for driving small motors across a wide range of voltages. The board can deliver a continuous 1.7 A per channel and tolerate peak currents up to 2.5 A per channel for a few seconds.

The board's default configuration uses five GPIO pins to control the motor drivers, making use of the Raspberry Pi's hardware PWM outputs, and it uses one additional pin to read a fault output from the drivers. However, the pin mappings can be customized if the defaults are not convenient.

Features

  • Two single-channel H-bridge motor drivers with shoot-through protection and internal free-wheeling diodes (can each drive one DC motor)
  • Motor supply voltage: 4.5 V to 36 V
  • Output current: 1.7 A continuous (2.5 A peak) per motor
  • Board can optionally power the Raspberry Pi base directly through add-on regulator (not included)
  • Python library makes it easy to get started using this board as a motor driver expansion board
  • GPIO pin mappings can be customized if the default mappings are not convenient
  • Reverse-voltage protection on motor power supply
  • Under-voltage lockout and protection against over-current and over-temperature
  • Surface-mount resistor can optionally be added to enable automatic current limiting
