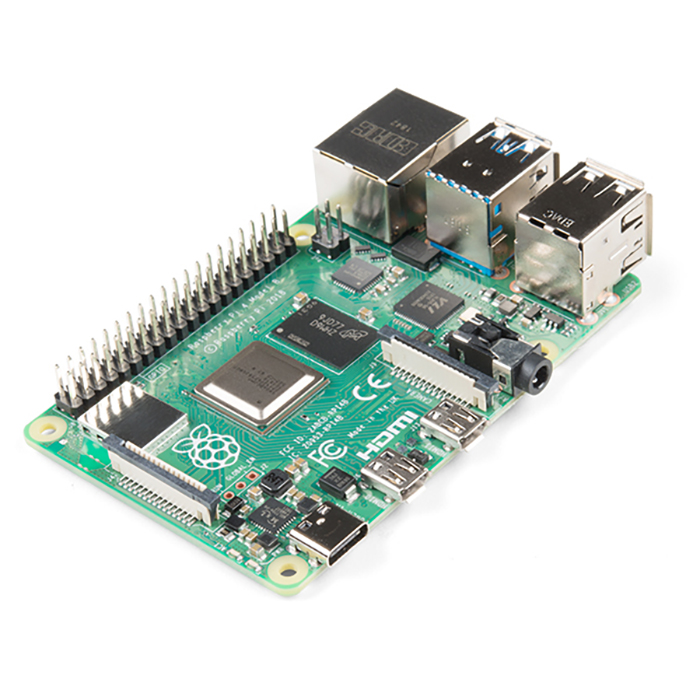

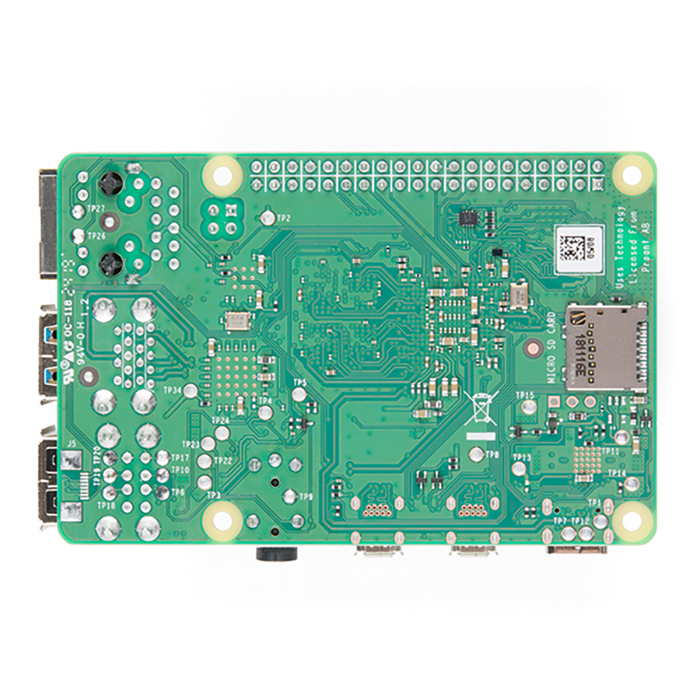

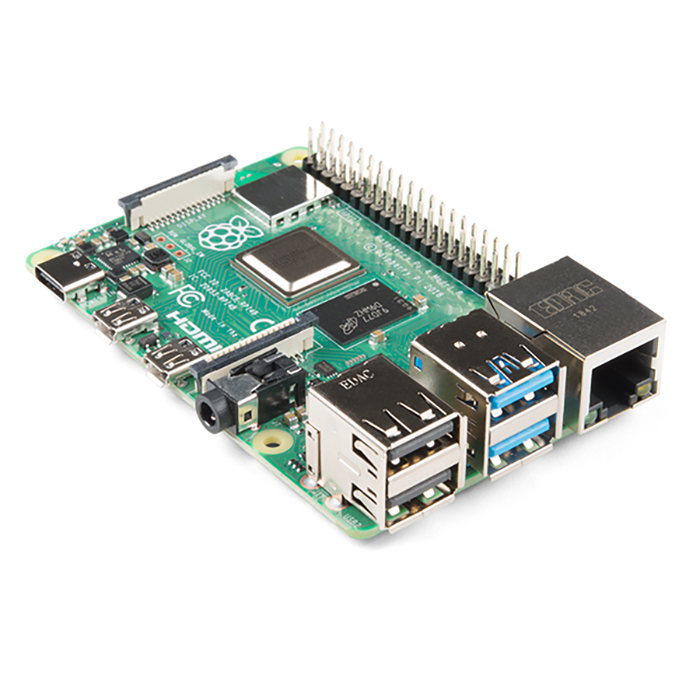

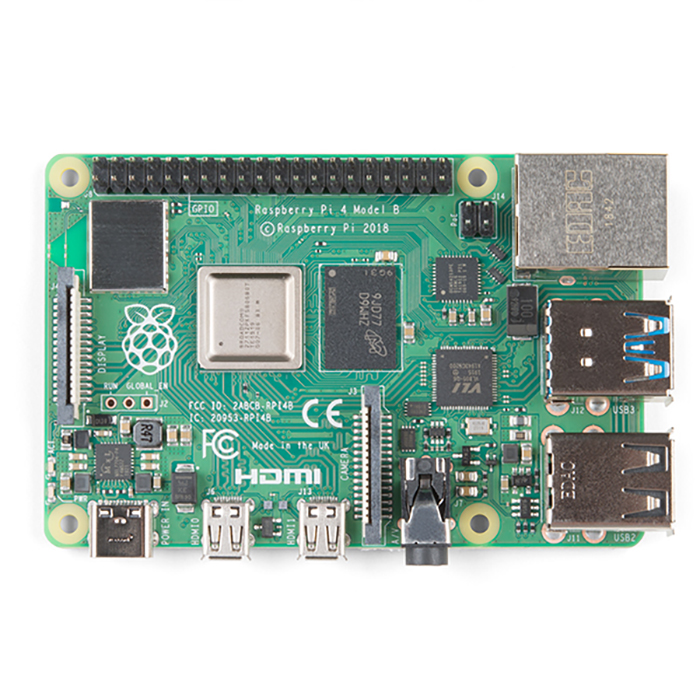

Raspberry Pi 4 Model B (4 GB)

In the next iteration of the Model B line, Raspberry Pi has given us the very powerful Model B 4 with the goal of the credit card sized development platform becoming a full desktop experience. The 4GB DDR4 RAM version of this board has the ability to run two 4k monitors at once via two micro HDMI ports and features the long-asked-for, true Gigabit Ethernet. This creates a much higher-performing multimedia experience with the new Pi! In addition to two USB2 ports, the Raspberry Pi 4 also has two USB 3 ports making data transfers that much quicker over USB.

The Raspberry Pi Model B line is a desktop computer in a package the size of a credit card. All you need to do is plug in a monitor, keyboard, mouse and load the latest Raspbian image onto a MicroSD Card and you have a full desktop computer solution. Projects like Tensorflow, PiHole, Minecraft, and Kodi make it an excellent tool for a multitude of uses.

The RPi4 retains a lot of the features of the RPi3 B+ including the pin-out for the 40 pin header. Wireless is still available on the 4 in the form of dual-band 2.4/5.0 GHz WiFi and Bluetooth 5.0. A new feature on the 4 is the inclusion of a USB Type-C connector for power delivery replacing the Mini-B connector.

The Raspberry Pi 4 does have the ability to consume more power than the Pi 3 B+, so a proper power supply will be needed. Those looking to use third party power supplies and cables or to run more intensive programs on the Pi; a proper source of power and heat dissipation measures are recommended.

Features:

• Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• 4GB LPDDR4-2400 SDRAM
• 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE
• True Gigabit Ethernet
• 2 × USB 3.0 Ports, 2 x USB 2.0 Ports
• Fully backwards compatible 40-pin GPIO header
• 2 × micro HDMI ports supporting up to 4K 60fps video resolution
• 2-lane MIPI DSI/CSI ports for camera and display
• 4-pole stereo audio and composite video port
• Micro SD card slot for loading operating system and data storage
• Requires 5V, 3A power via USB Type C or GPIO
• PoE (Power over Ethernet) enabled (requires PoE HAT)

Documents:

• Product Brief
• Schematic
• Mechanical Drawing
• Raspberry Pi Org Documentation Page

Dimensions: 85mm x 56mm x 17mm
