USB WiFi Module with Antenna (RTL-8192CU)

4 pc(s)
WIR-02942

$25.50

This wifi module is a miniature USB wireless adapter with massive antenna that supports greater range and speed. It is fully complies with wireless 802.11b/g/n standards with data rate up to 300 Mbps when connecting with wireless 802.11n device. This Wifi module works well with the...
+

This wifi module is a miniature USB wireless adapter with massive antenna that supports greater range and speed. It is fully complies with wireless 802.11b/g/n standards with data rate up to 300 Mbps when connecting with wireless 802.11n device.

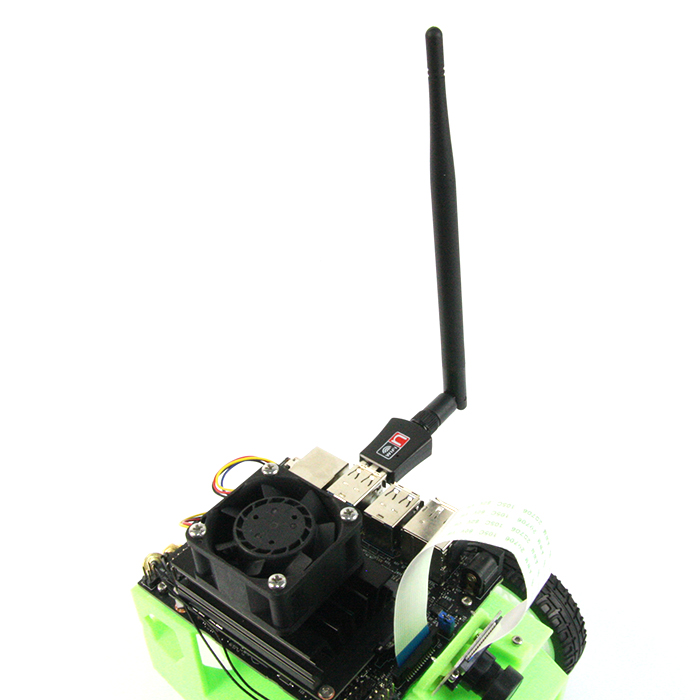

This Wifi module works well with the Jetson Nano without the need of recompiling the kernels.

Specifications

  • Realtek RTL-8192CU Chipset
  • Wireless Standards:
    • IEEE 802.11n
    • IEEE 802.11g
    • IEEE 802.11b
  • Host Interface: High speed USB2.0/1.1 interface
  • Data Rate:
    • 802.11n: up to 300Mbps
    • 802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
    • 802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
  • Frequency Band: 2.4GHz ISM (Industrial Scientific Medical) Band
  • RF Frequency: 2.4~2.4835GHz
  • Radio Channel: 13 channels (Universal Domain Selection)
  • Antenna Type: Integrated Antenna
  • Roaming: Full mobility and seamless roaming from cell to cell
  • RF Output Power: 20 dBm (Typical)
  • Modulation:
    • 11n: OFDM with PSK, BPSK, 16QAM, 64QAM
    • 11g: OFDM
    • 11b: DQPSK, DBPSK, CCK
  • Data Security:
    • 64/128-bit WEP Encryption
    • WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
  • Network:
    • Auto-switch to use 802.11n or 802.11g or 802.11b mode
    • Supports Ad-Hoc, Infrastructure WLAN network
    • Support wireless roaming
    • Data rate auto fall-back under noisy environment or longer transmission distance
    • Website template detection function
  • Operating System: Windows 2000, XP 32/64bits, Vista 32/64bits, Linux and MAC OSX
  • Media Access Control CSMA/CA with ACK
  • LED Indicator Link/Active ( Green )
  • Environment:
    • Operating Temperature 0°C to 40°C
    • Storage Temperature -20°C to 75°C
    • Operating Humidity 10% ~ 90% (Non Condensing)
    • Storage Humidity 5% ~ 95% (Non Condensing)
