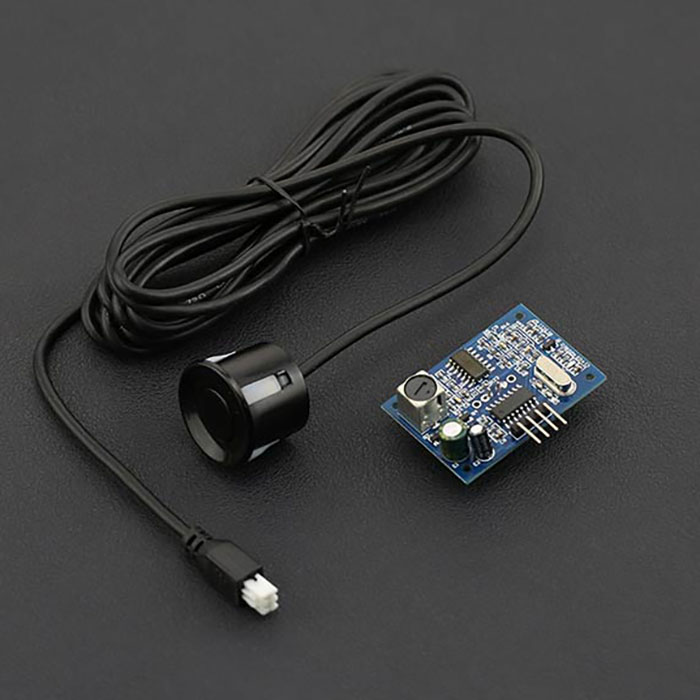

Ultrasonic Sensor with Waterproof Probe

2 pc(s)
SEN-02924

$22.50

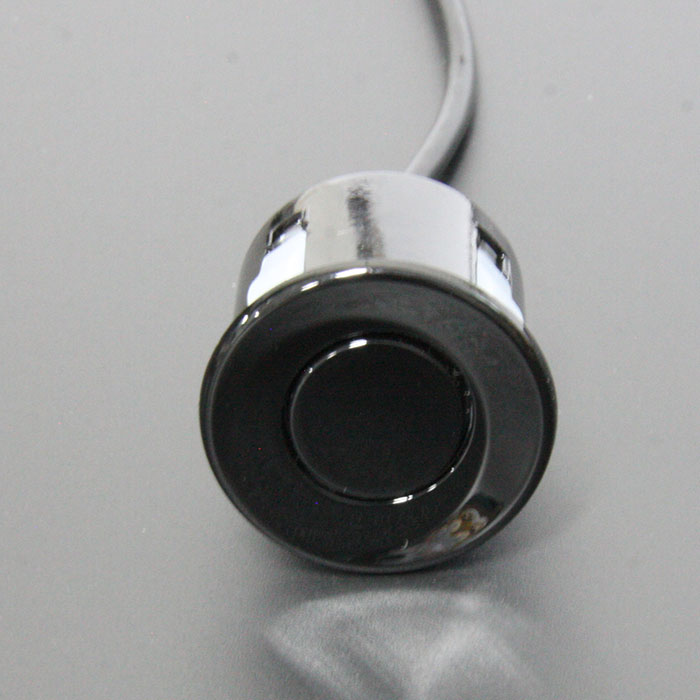

Most ultrasonic distance sensors aren't waterproof which can be a problem if you need your project to withstand the elements outdoors. No need to worry any more! The probe of this sensor is waterproof and is suitable for outdoor applications such as car reversing sensors, security alarms,...
+

Most ultrasonic distance sensors aren't waterproof which can be a problem if you need your project to withstand the elements outdoors. No need to worry any more! The probe of this sensor is waterproof and is suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection

Features:

  • Operating voltage: DC3.0-5.5V
  • Static current: >8mA
  • Operating current: 30mA
  • Operating range: 20cm ~ 60cm
  • Resolution: 1mm
  • Detecting Angle: < 75°
  • Operating Temperature: -20 ~ 70°C

Dimensions:

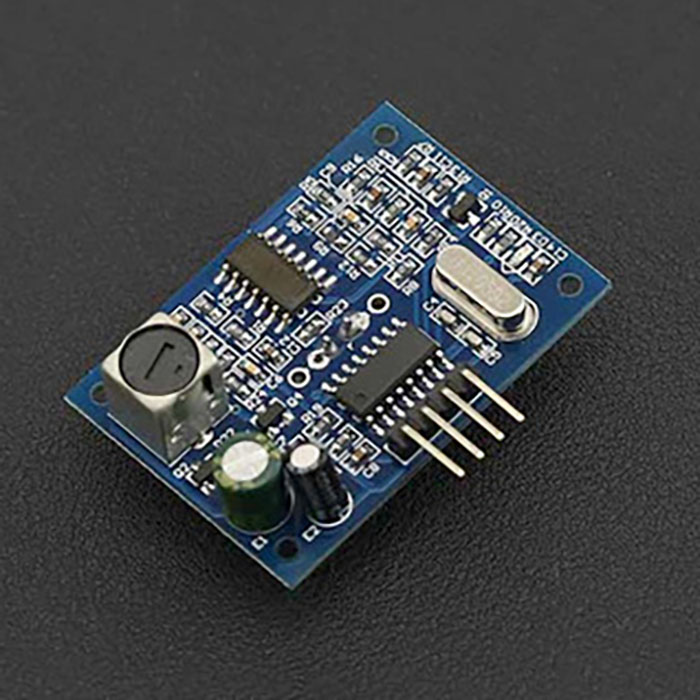

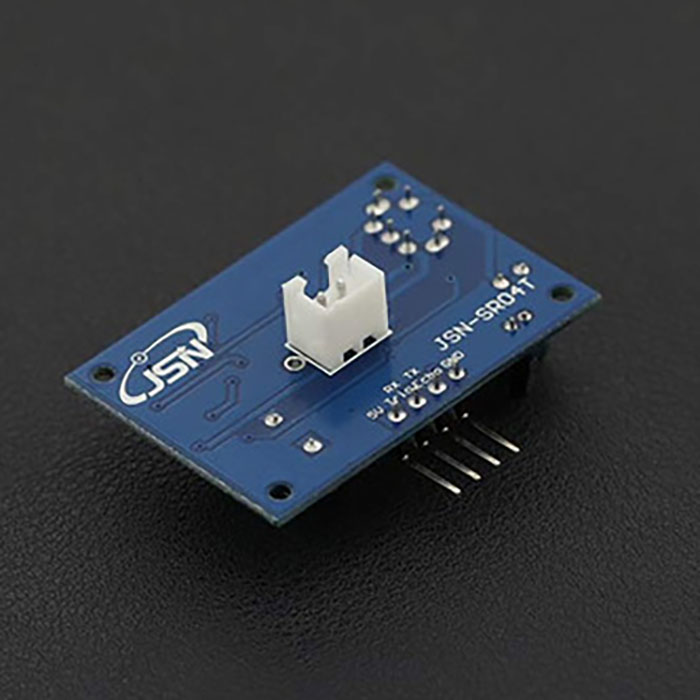

  • L42 x W29 x H12 mm (PCB)
  • ø25 x 20.7mm (Probe)
  • Cable Length: 2.5m

Documents:
