M5Stack Module - HUB

10 pc(s)
DEV-02923

$4.90

M5Stack is a robust, Arduino compatible, open source development kit with stackable modules, enabling rapid and high-quality IoT prototyping. This M5Stack HUB Module is used for GROVE port expanding. It allows three I2C devices with unique address to connect to M5Stack Core. This HUB is...
+

M5Stack is a robust, Arduino compatible, open source development kit with stackable modules, enabling rapid and high-quality IoT prototyping.

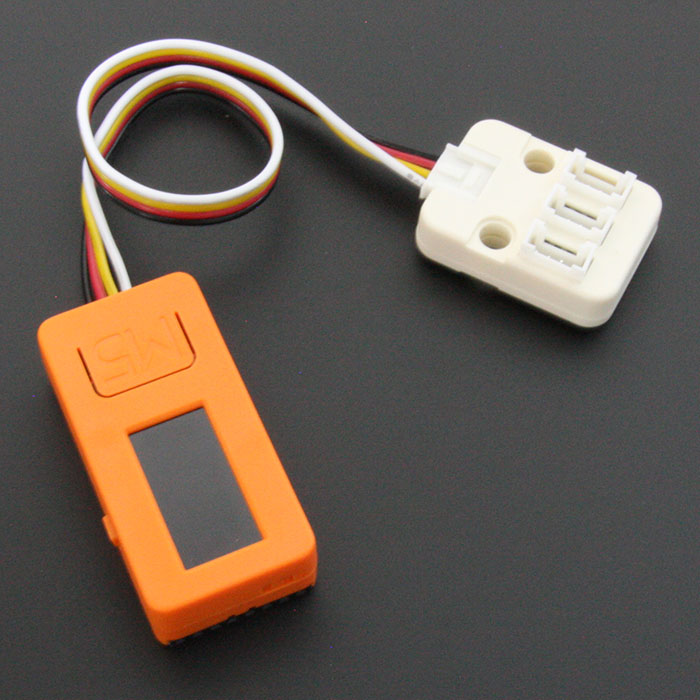

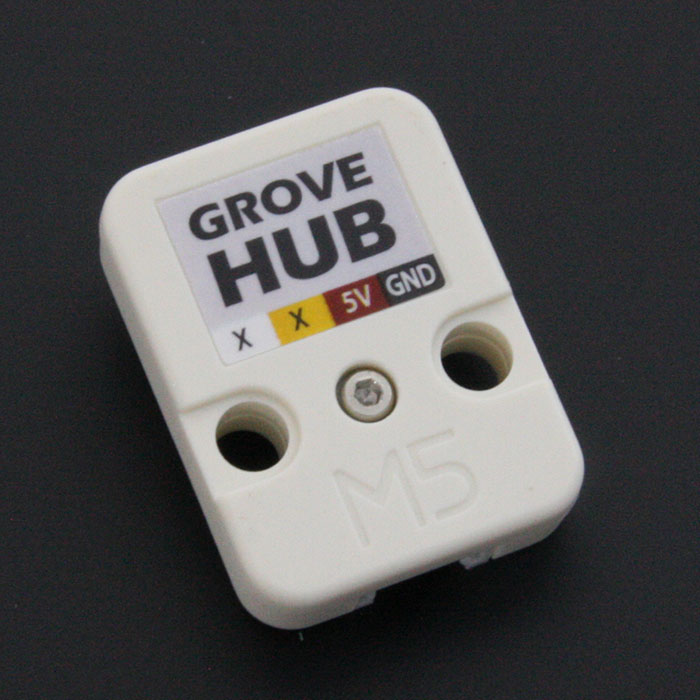

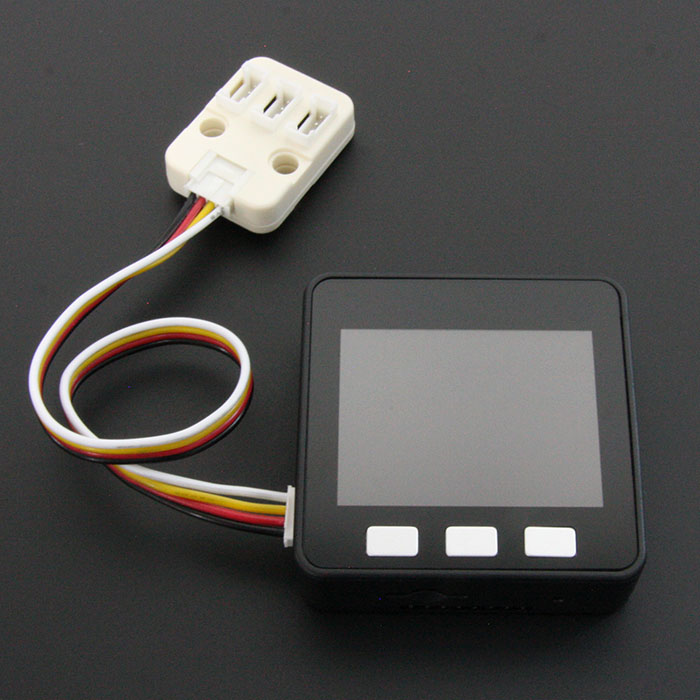

This M5Stack HUB Module is used for GROVE port expanding. It allows three I2C devices with unique address to connect to M5Stack Core. This HUB is just a hardware expander, all the three GROVE connectors are connected in parallel. You will not be able to get the I2C bus working if you connect more than one I2C slave device to HUB that share the same address.

This HUB is not recommended for modules with analog and digital output.

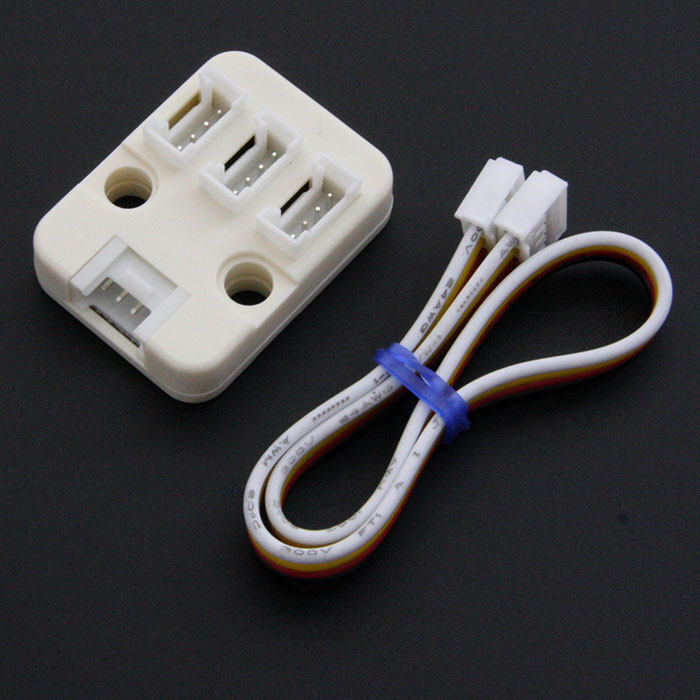

Includes:

  • HUB module
  • GROVE Cable

Features:

  • 1-to-3 GROVE Expander
  • Two Lego installation holes
  • GROVE interface

Dimensions: 32.2mm x 24.2mm x 11mm
