IMX219 Camera Module For Pi Cam V2 - 8 MegaPixels, 160° View Angle

4 pc(s)
DEV-02849

$34.50

This IMX219 camera module is supplementary for Raspberry Pi official camera to fulfil the demands for wide view angle. It features 8-megapixel 160 degree view angle. If you got a Raspberry Pi Camera Board V2 and require wide view angle, here it is. Note : Follow the instruction in this...
+

This IMX219 camera module is supplementary for Raspberry Pi official camera to fulfil the demands for wide view angle. It features 8-megapixel 160 degree view angle. If you got a Raspberry Pi Camera Board V2 and require wide view angle, here it is.

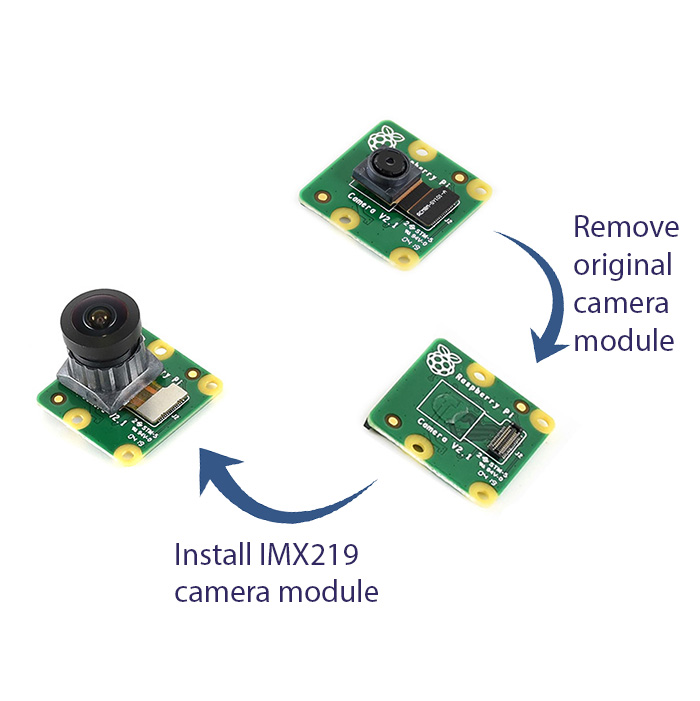

Note: Follow the instruction in this link to remove the pink tint that appear on the outer area of the captured image.

Features:

  • Adjustable Focus Lens
  • 8 megapixel Sony MX219 sensor
  • 1/4 inch CCD
  • f/2.35 Aperture
  • 3.15mm focal length
  • 160 degree FOV (Diagonal) (original V2 camera board 62.2 degree)
  • 3280 x 2464 still picture resolution
  • Distortion: < 14.3%
  • Support 1080p30, 720p60 and 640x480p60/90 video

Documents:

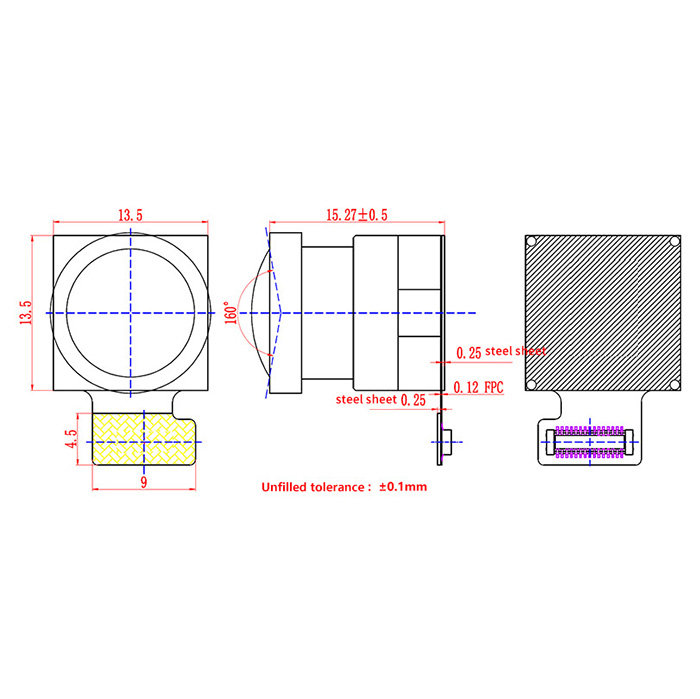

Dimensions:

  • 13.5mm x 13.5mm. x 15.3mm
