Passive Buzzer w/Leads -13mm

5 pc(s)
COM-02774

$3.90

This is a small 13mm round passive buzzer that operates around the audible 4kHz range. We drove it directly from a 3v to 5V Arduino or micro:bit to generate simple melody. The buzzer comes with ~100mm leads terminated with male pin. Note : This passive buzzer requires a square wave...
+

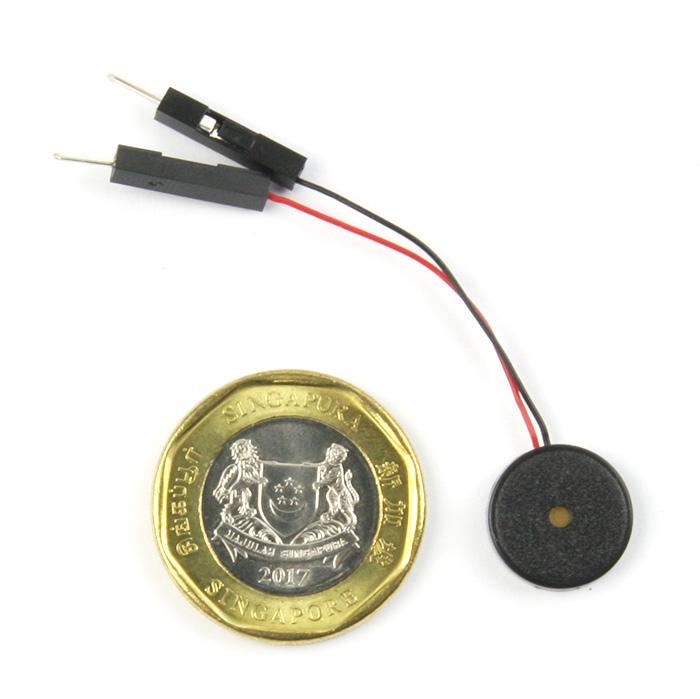

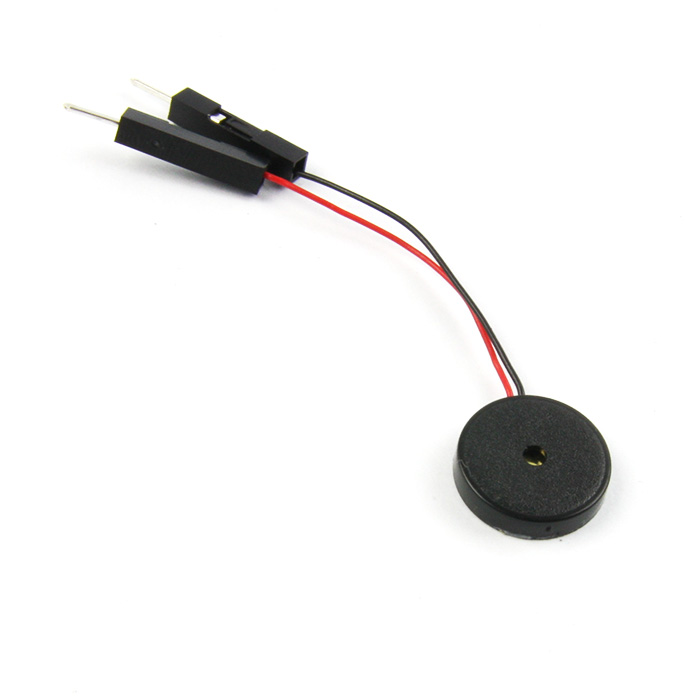

This is a small 13mm round passive buzzer that operates around the audible 4kHz range. We drove it directly from a 3v to 5V Arduino or micro:bit to generate simple melody.

The buzzer comes with ~100mm leads terminated with male pin.

Note: This passive buzzer requires a square wave (PWM) signal to make a sound or to play melodies. The frequency of this PWM signal will determine the tone. Supplying just a fixed voltage will generate no sound, except perhaps a slight "tick" at the point when the power source is connected or disconnected from the buzzer.

Documents:

Dimensions: ø13 x 2.5mm
