Robot Rover Chassis Kit with TT Motors -Purple

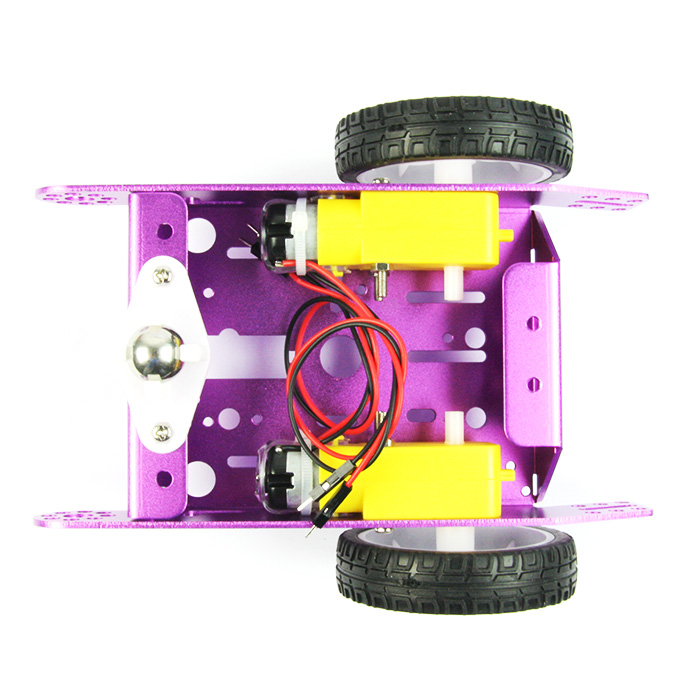

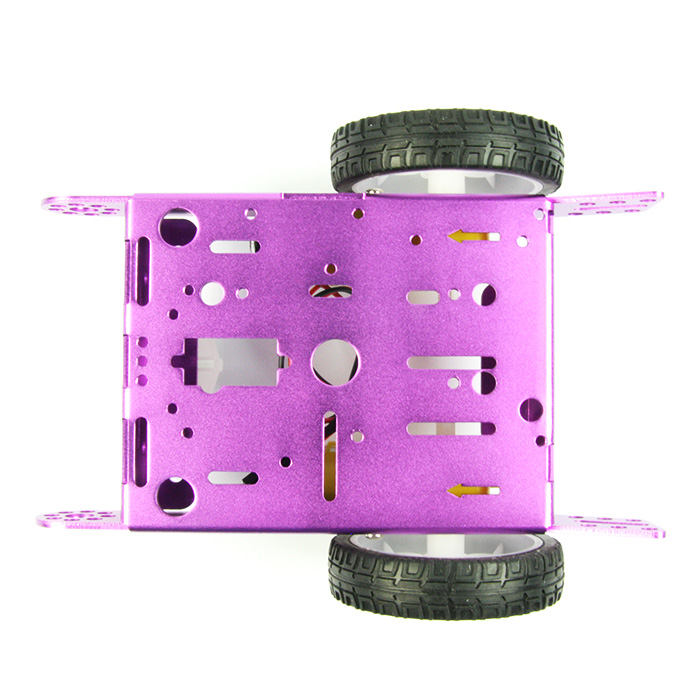

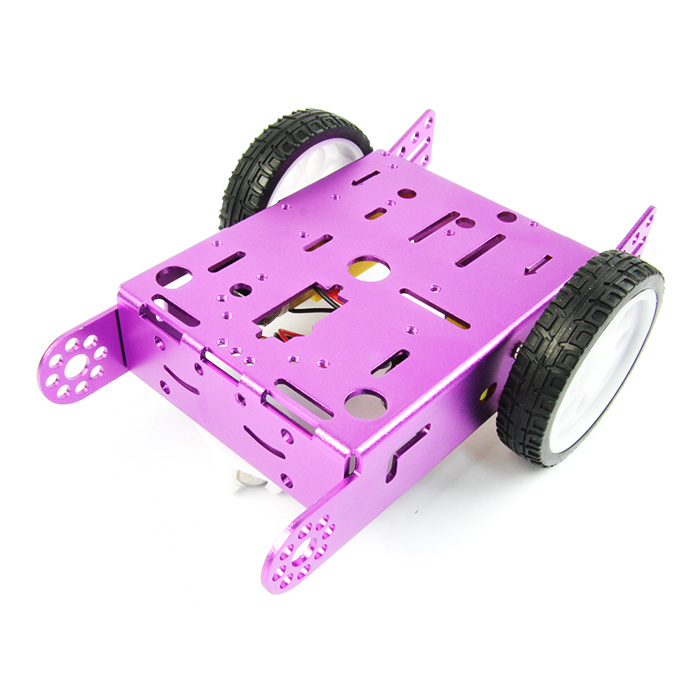

This Robot Rover Chassis Kit with TT Motors gives you everything you need to build the shell of a 2-wheel-drive Robot Rover! It features two TT gearmotors with 65mm wheels and a rear caster. The metal chassis is a single piece of bent 2mm thick aluminum, with a wide variety of holes, slots and cutouts for mounting boards, sensors, power and servos.

Note: The robot ships as shown in the main product picture; no assembly is required.

Features:

• Aluminum chassis
• Max Motor Voltage: 6VDC
• No Load Speed @ 6V: 200rpm
• No Load Current: <150mA
• Stall Torque (6V): 0.8kg.cm
• 65mm Diameter Wheels (15mm Wide)
• Plastic Rims with Solid Rubber Tires

Dimensions: 172.0mm x 90.0mm x 31.0mm

Documents:

• Mechanical drawing (Top View)
• Mechanical drawing (Full)
