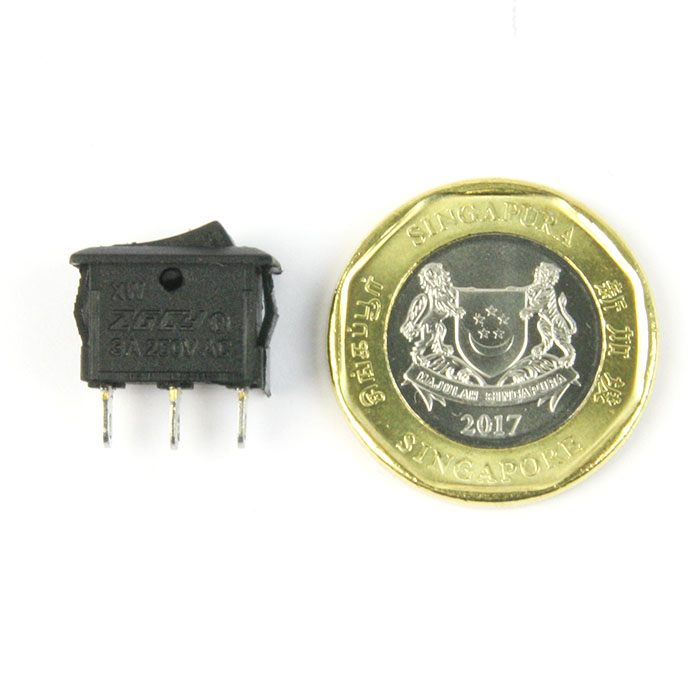

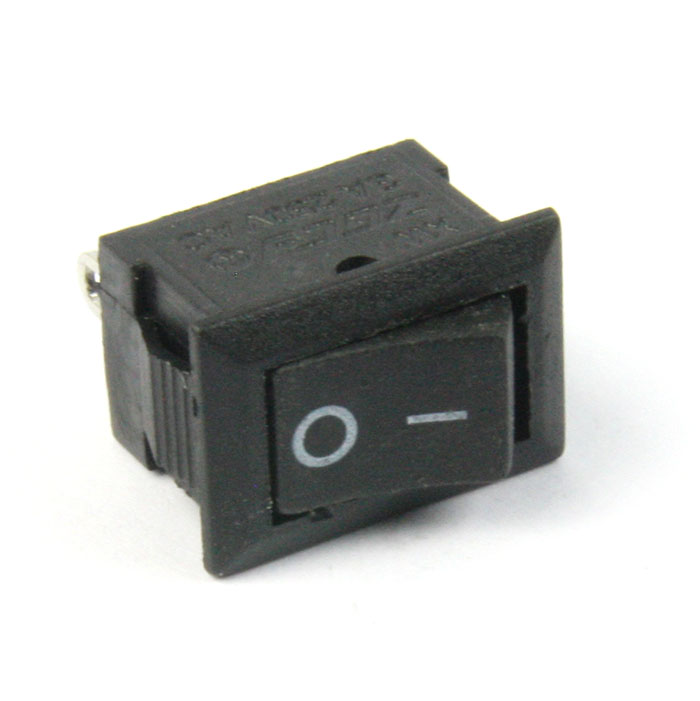

Rocker Switch - SPDT Small

55 pc(s)
PRO-02679

$0.60

The rocker switch is a classic and this one is a great size for an unobtrusive on/off switch. It can be panel mounted and has two tabs for connecting wire. You can either solder wire or use a quick-connect connector. Features : Maximum Voltage: 250VAC Maximum Current: 3A @...
+

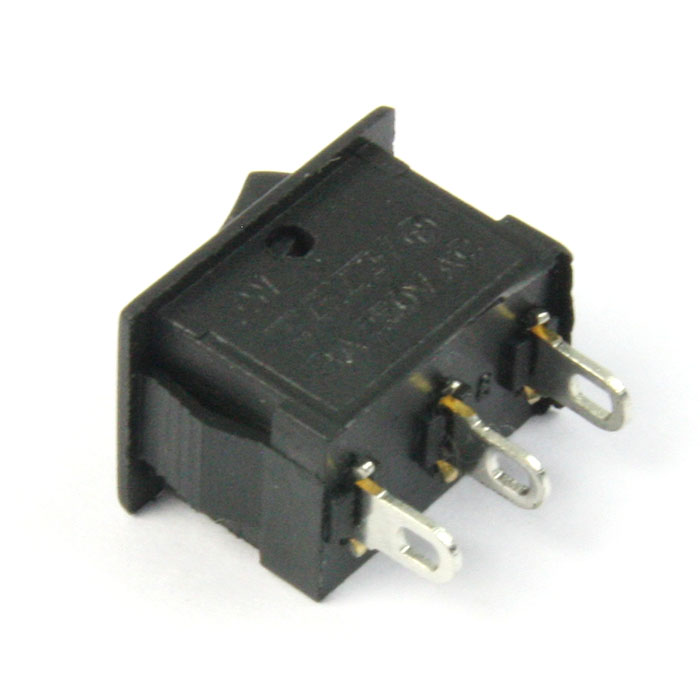

The rocker switch is a classic and this one is a great size for an unobtrusive on/off switch. It can be panel mounted and has two tabs for connecting wire. You can either solder wire or use a quick-connect connector.

Features:

  • Maximum Voltage: 250VAC
  • Maximum Current: 3A @ 250VAC
  • Contact Resistance: ≥35mΩ
  • Insulation Resistance: ≥100mΩ
  • Operating Temperature: -25°C to 85°C
  • Snap-in Panel Mount

Documents:

Good to know
