TT Gear Motor - 200RPM

35 pc(s)
RBT-02674

$4.50

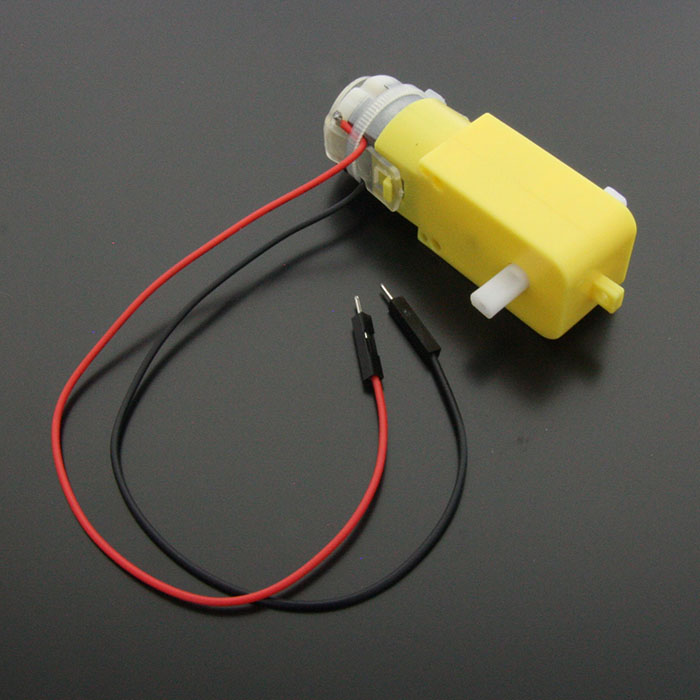

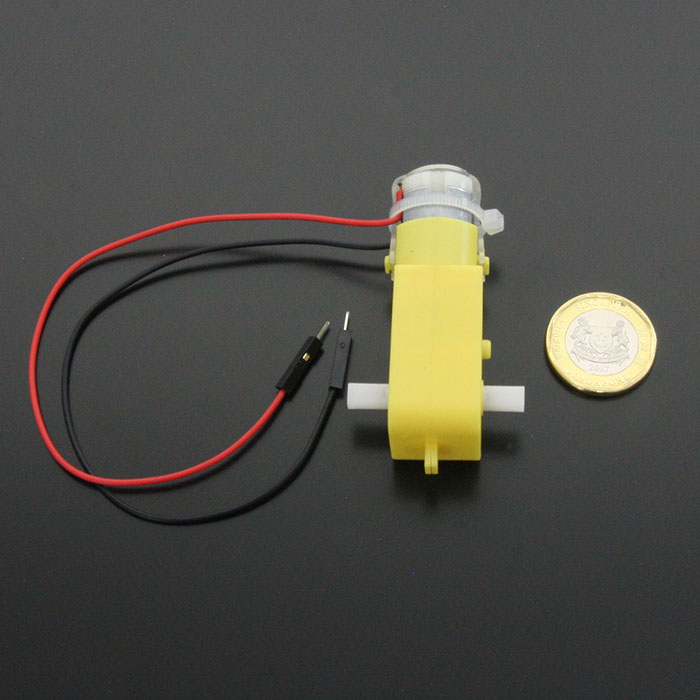

These inexpensive and reliable TT Gear Motors are an easy, low-cost way to get your projects moving. These gear motors require a voltage of 3-6VDC with a no load current of less than 150mA at 3V and possess a stall torque of 0.8kg.cm at 6V, a gearbox ratio of 48:1, and it comes with 2 x 200mm...
+

These inexpensive and reliable TT Gear Motors are an easy, low-cost way to get your projects moving. These gear motors require a voltage of 3-6VDC with a no load current of less than 150mA at 3V and possess a stall torque of 0.8kg.cm at 6V, a gearbox ratio of 48:1, and it comes with 2 x 200mm wires with breadboard-friendly 0.1" male connectors. Perfect for plugging into a breadboard or terminal blocks.

These gear motors have no built-in encoders, speed control or positional feedback. There will be variation from motor to motor, so a separate feedback system is required if you need precision movement.

We have a range of wheels, add-ons and accessories for these motors.

Features:

  • Rated voltage: 3 - 6VDC
  • Continuous No-Load Current: <150mA @ 3V
  • Min. Operating Speed (3V): 90RPM
  • Min. Operating Speed (6V): 200RPM
  • Torque: 0.15Nm ~0.60Nm
  • Stall Torque (6V): 0.8kg.cm
  • Gear Ratio: 1:48
