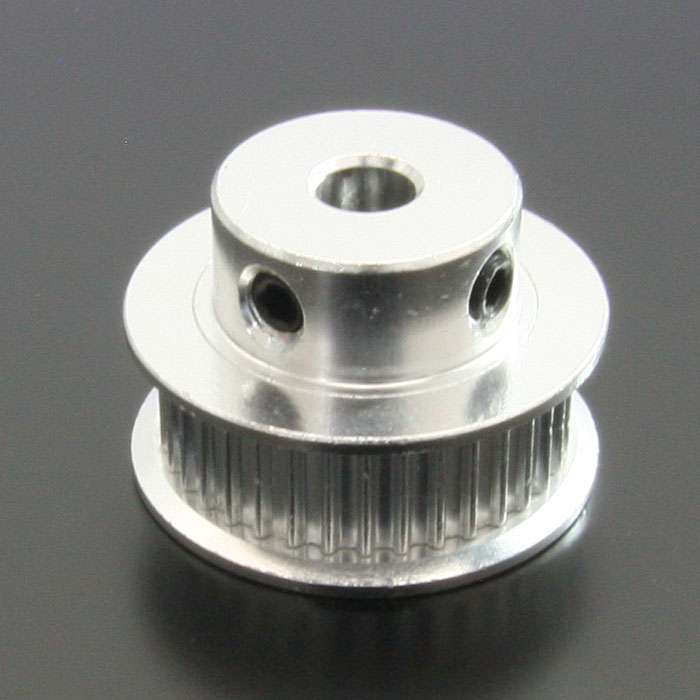

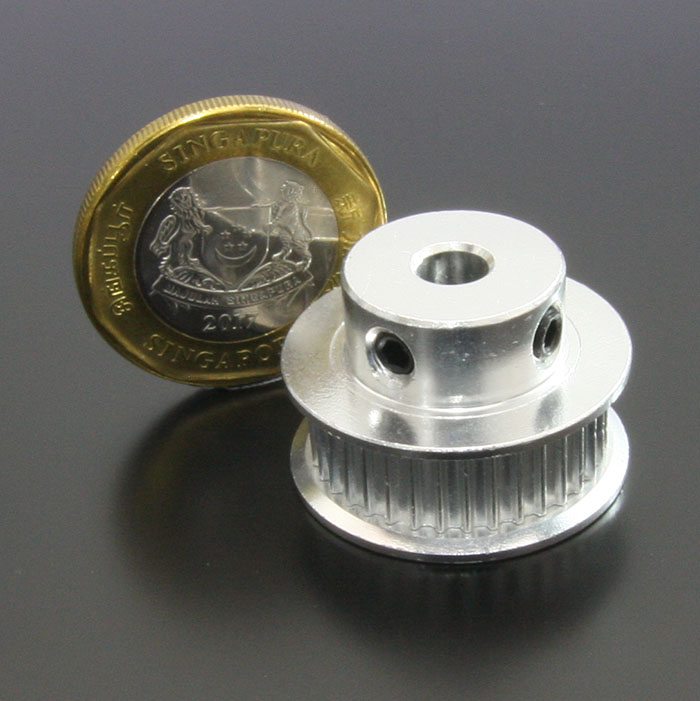

Timing Pulley - Shaft Mount (36T, 5mm Bore)

4 pc(s)
RBT-02625

$10.50

These shaft-mountable aluminum timing pulleys use 2GT timing belts and attach to a 5mm output shaft with a pair of set screw. They have 36 teeth with a gear pitch of 2mm, an outer diameter of 25.4mm, a bore of 5mm, and requires a belt width of 6mm. Specification Teeth: 36...
+

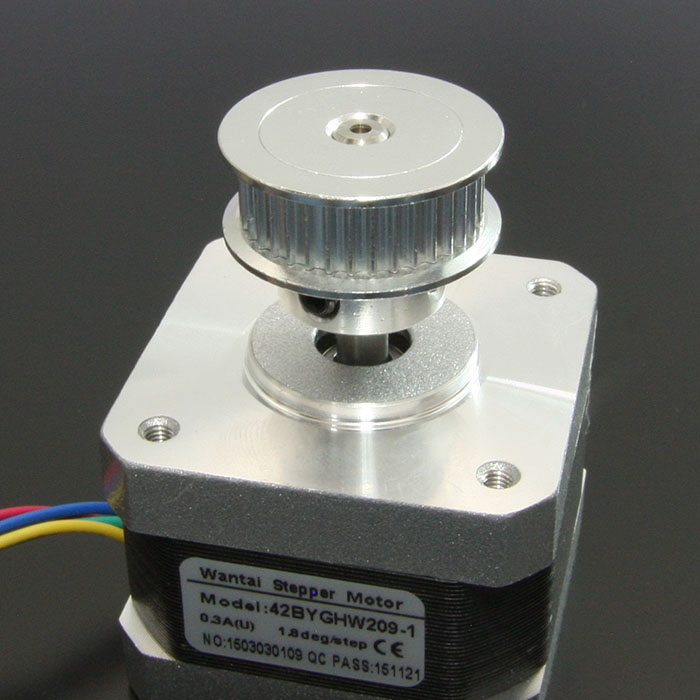

These shaft-mountable aluminum timing pulleys use 2GT timing belts and attach to a 5mm output shaft with a pair of set screw. They have 36 teeth with a gear pitch of 2mm, an outer diameter of 25.4mm, a bore of 5mm, and requires a belt width of 6mm.

Specification

  • Teeth: 36
  • Inner diameter: 5mm
  • Teeth diameter: 22.2mm
  • Teeth Width: 7.2mm
  • Outer diameter: 25.4mm
  • Fastening screws: M4 x2
