M12 Lenses, also referred to as S-Mount Lenses, are compact imaging lenses designed for use with many small format cameras. They are ideal for environments where space is limited.

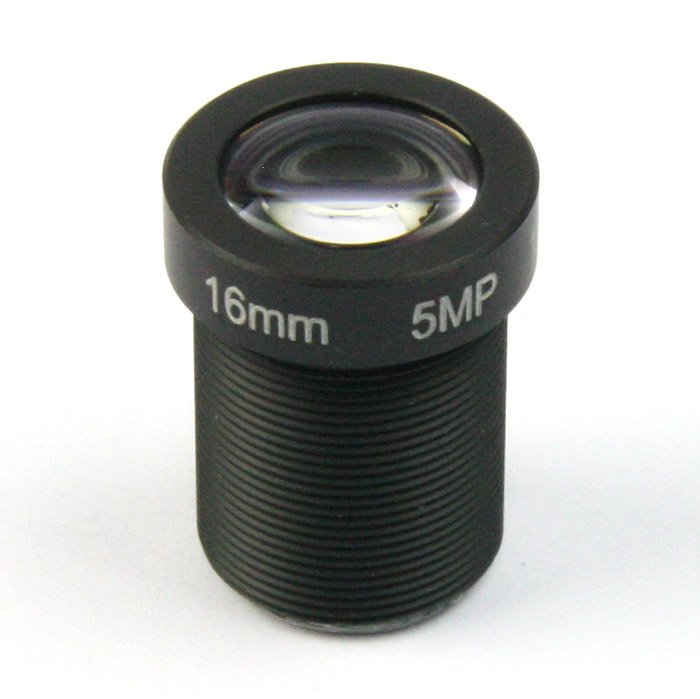

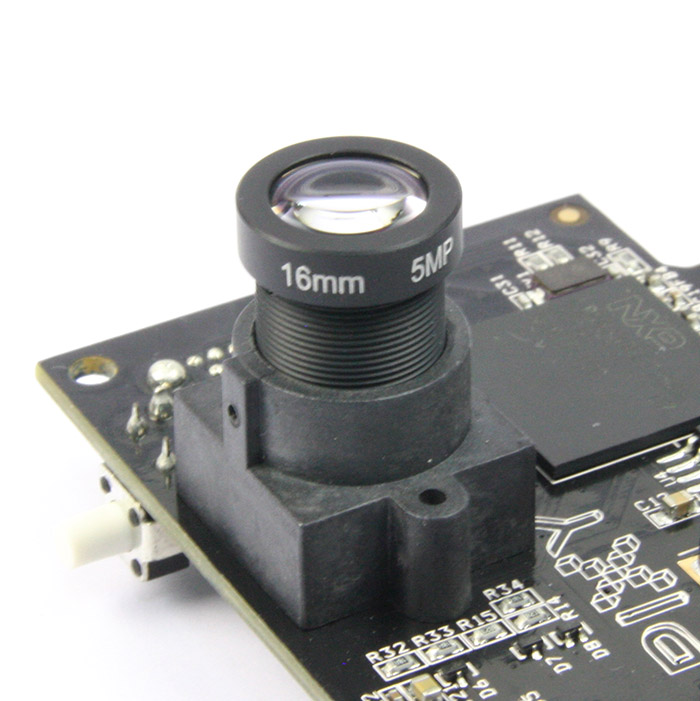

Designed for use in micro sensor board cameras, this low cost 16mm fixed lens with IR Cut Filter provides excellent image quality in a small, versatile package. This lens is great for any application where you need your camera to zoom in on some subject. For example, the lens makes it easy to do eye-tracking without IR light by zooming in on someone's eye making it easier to determine the direction their pupil is pointing.
The lens are threaded for M12*0.5. The IR Cut Filter can be removed for night vision applications.
- Focal Length: 12mm
- Sensor: 1/2.5"
- Megapixel: 5MP
- Mount: M12*0.5
- Horizontal Field of View (FOV): 22º
- Optical Distortion: -2.5%
- IR Cut Filter: 650nm (removable)

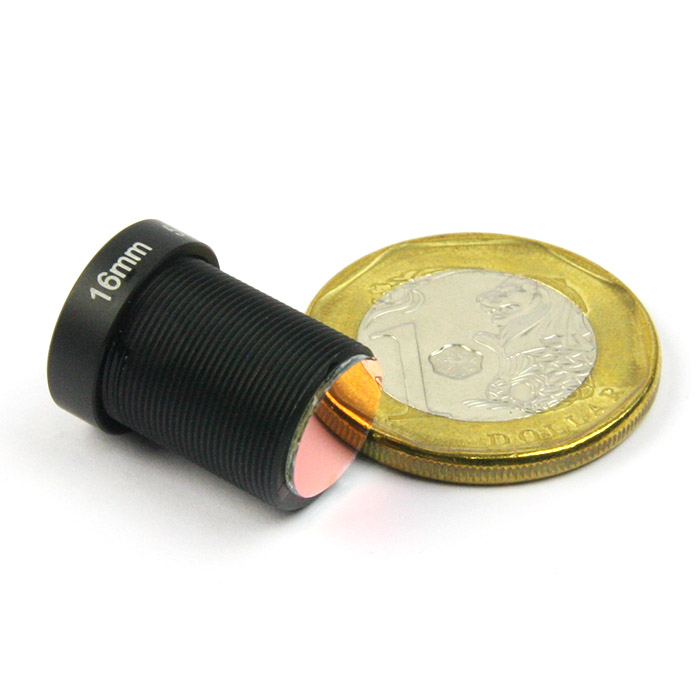

- ø14 x 17.6mm
- Weight: 5g
