M12 Lenses, also referred to as S-Mount Lenses, are compact imaging lenses designed for use with many small format cameras. They are ideal for environments where space is limited.

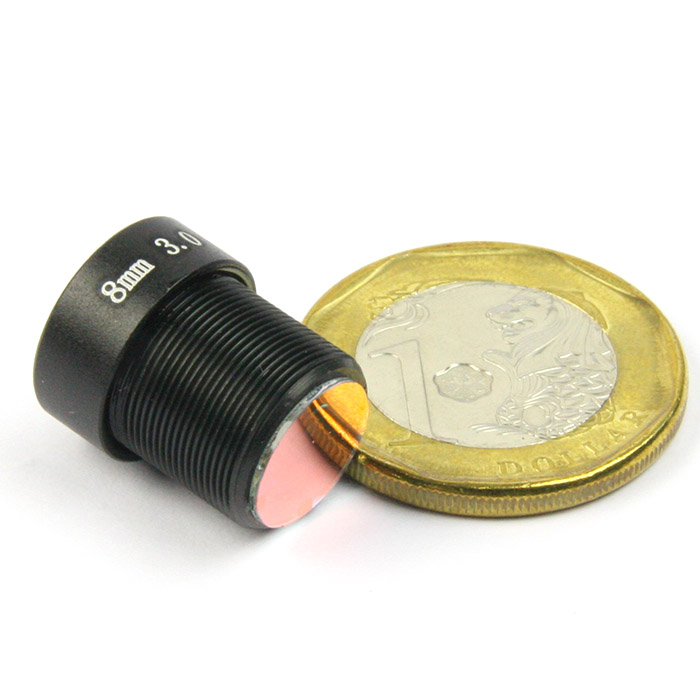

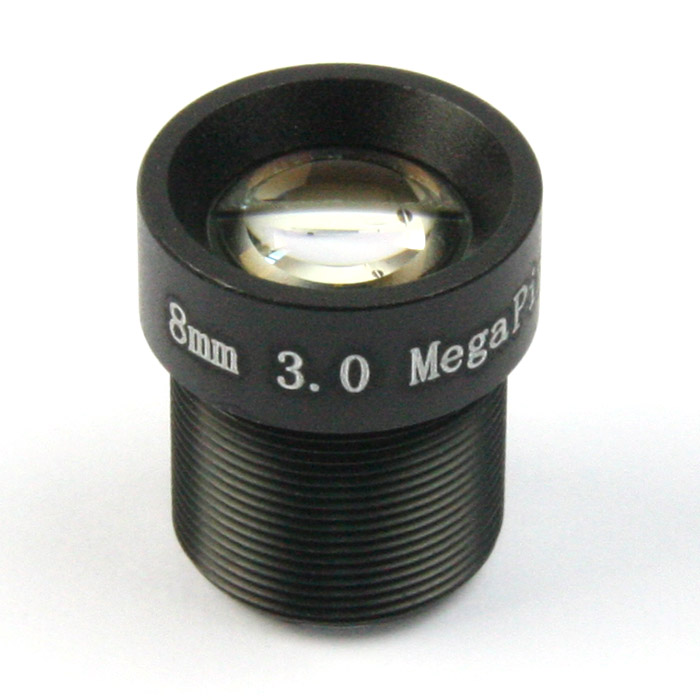

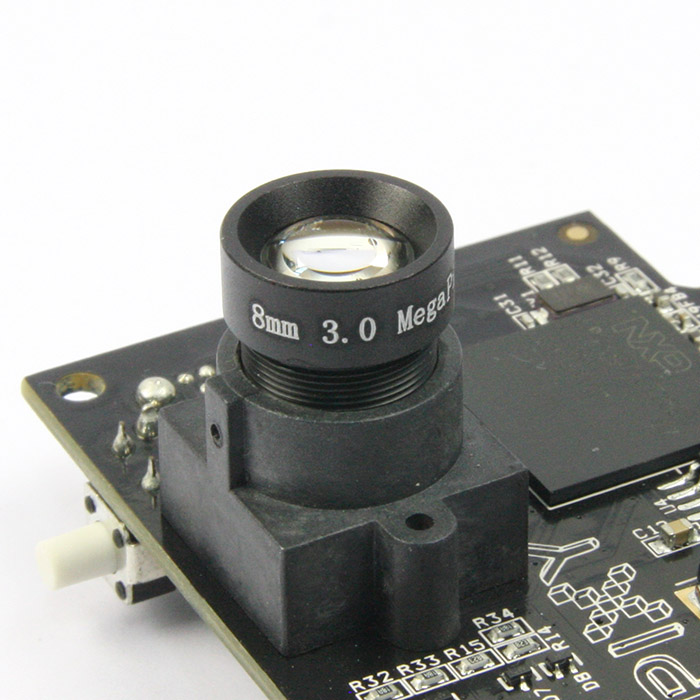

Designed for use in micro sensor board cameras, this low cost 8mm fixed lens with IR Cut Filter provides excellent image quality in a small, versatile package. Optimized to cover 1/2.5" sensor formats, they are an ideal choice for wide angle and close focus applications. The lens are threaded for M12*0.5.
The IR Cut Filter can be removed for night vision applications.
- Focal Length: 8mm
- Sensor: 1/2.5"
- Megapixel: 3MP
- Mount: M12*0.5
- Horizontal Field of View (FOV): 40º
- Optical Distortion: -7.7%
- IR Cut Filter: 650nm (removable)
- ø14 x 15.8mm
- Weight: 5g
