High Torque Metal Gear Servo (270° Rotation)

7 pc(s)
RBT-02567

$29.90

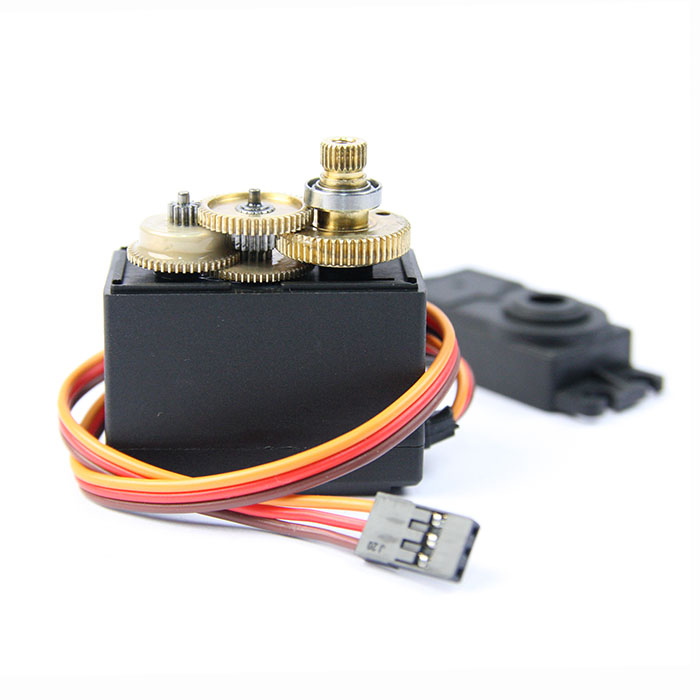

This high-torque servo now comes with metal-gear for extra-high torque (10.5 kg/cm!) and reliability! It can rotate at approximately 270 degrees with a classic 500µS to 2500µS pulse. You can use any servo code, hardware or library to control these servos. Good for applications that require...
+

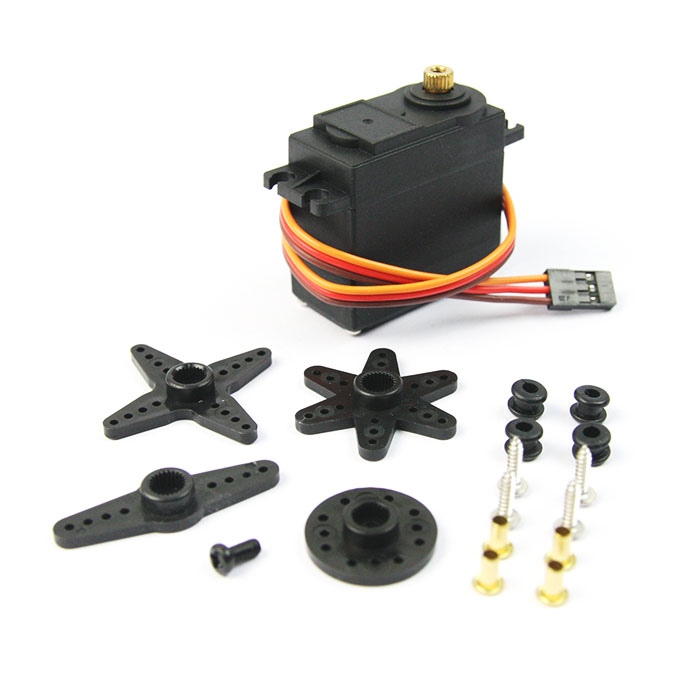

This high-torque servo now comes with metal-gear for extra-high torque (10.5 kg/cm!) and reliability! It can rotate at approximately 270 degrees with a classic 500µS to 2500µS pulse. You can use any servo code, hardware or library to control these servos. Good for applications that require more than 120° rotation.Comes with a bunch of plastic horns, as shown.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE. Use myservo.writeMicroseconds(µS) to set the angle of the shaft. 1500µS pulse is middle position, 500µS pulse is is all the way to the right, 2500µS pulse is all the way to the left.

Features:

  • Operating Voltage: 4.8V~6.6V
  • Operating speed: 0.20sec/60 degree @ 4.8V
  • Stall torque: 10.5kg/cm @ 4.8V, 13kg/cm @ 6V
  • 270° rotation

Documents:

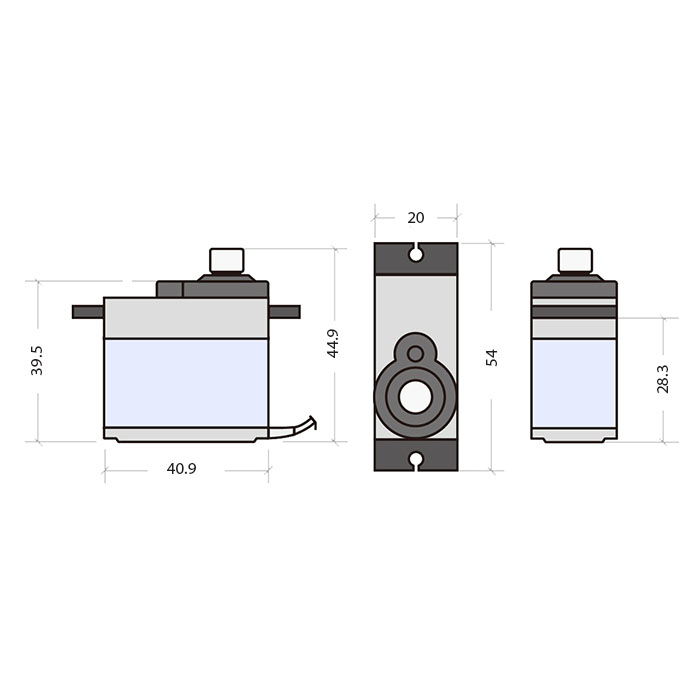

Dimension:

  • 40.5×20.2×38mm
  • Weight: 55g
