Micro Servo - 9g (360° Full Rotation)

5 pc(s)
RBT-02566

$5.90

Here is a simple, low-cost, high quality continuous 360° full-rotation servo motor for all your mechatronic needs. Small servo with a standard 3 pin power, control cable, and mounting hardware. This servo is very similar in size and specifications to the Hitec HS-55. Includes hardware as...
+

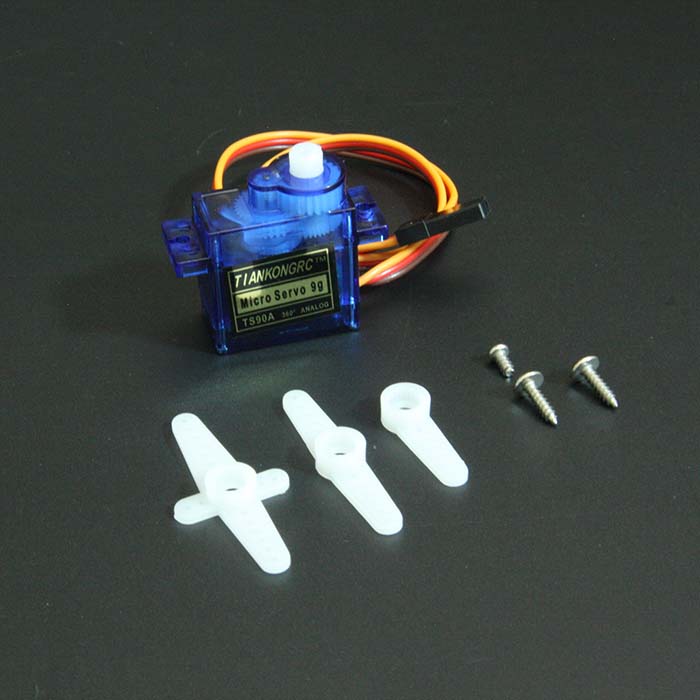

Here is a simple, low-cost, high quality continuous 360° full-rotation servo motor for all your mechatronic needs. Small servo with a standard 3 pin power, control cable, and mounting hardware. This servo is very similar in size and specifications to the Hitec HS-55. Includes hardware as shown.

Note:

  • Minimum voltage to operate this servo without load is around 2.6VDC. It works with micro:bit v2.

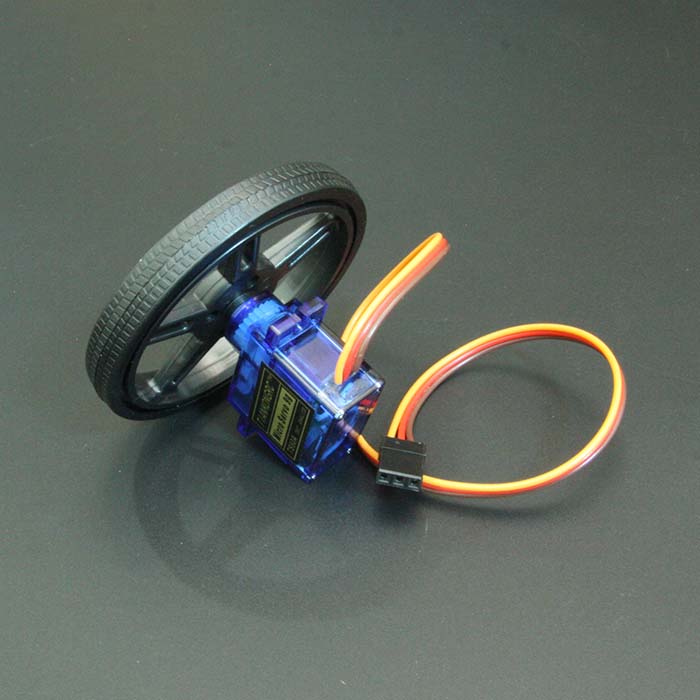

  • Servo only. The 56mm plastic wheel is not included. You can get it in our store.

Features:

  • Rated Operating Voltage: 4.8V~6.0V
  • Operating speed: 0.12sec/60 degree @ 4.8V
  • Output torque: 1.8kg/cm (25oz/in) @ 4.8V
  • 360° full rotation

Dimension:

  • 23 x 12.2 x 29mm
  • Weight: 9g
