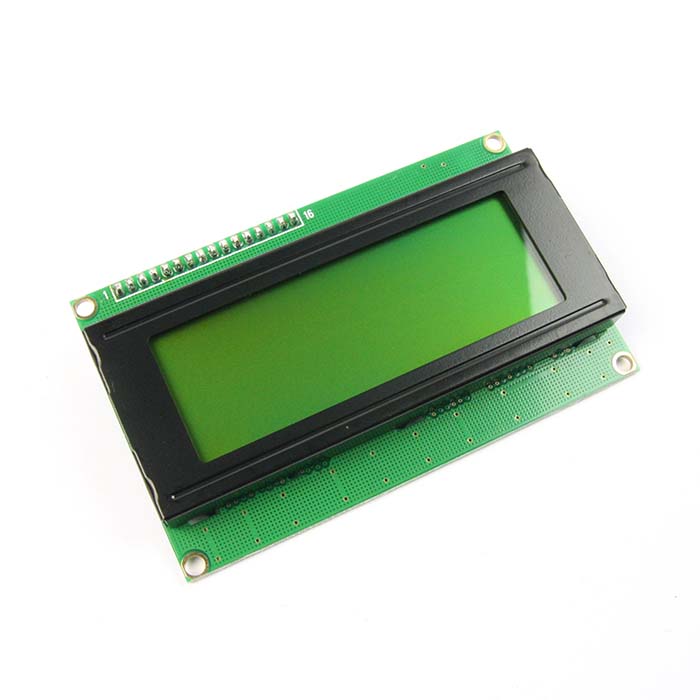

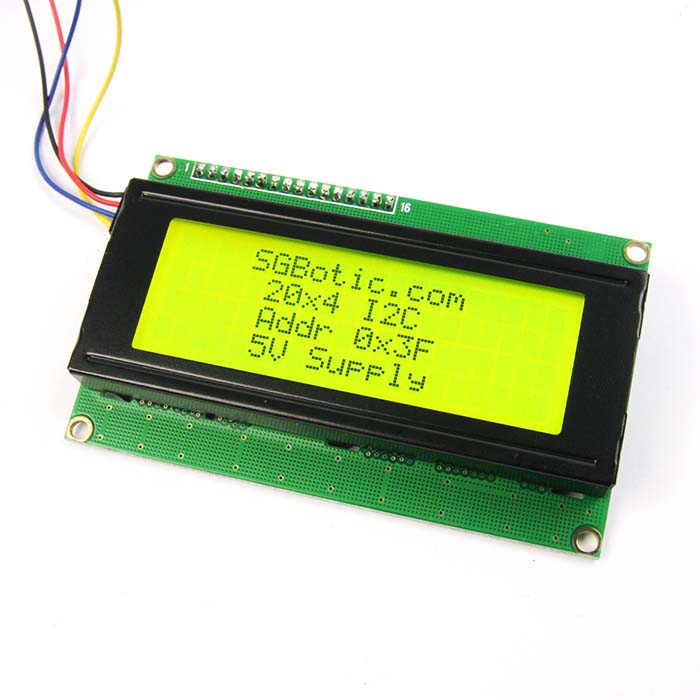

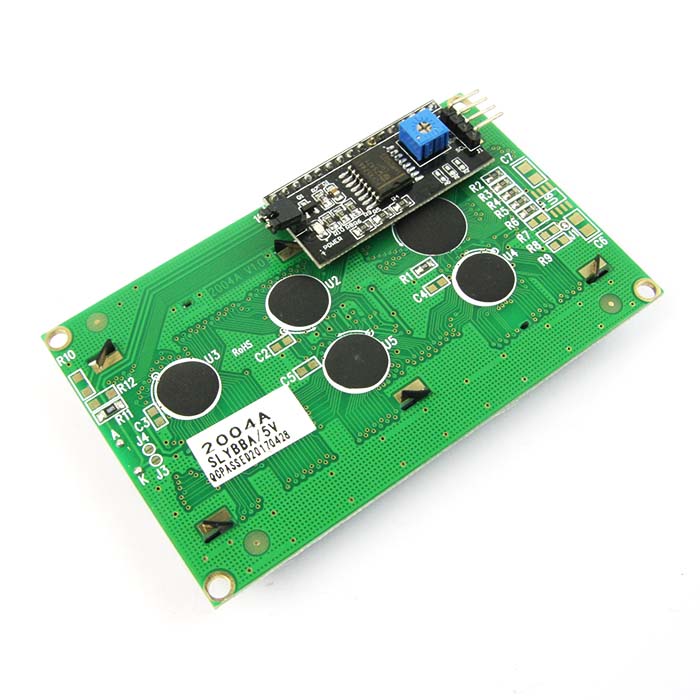

I2C 20x4 Character LCD Module - Black on Green 5V

1 pc(s)
DIS-02540

$25.95

This is another great 20x4 character LCD display with I2C interface. As the pin resources of Arduino controller is limited, your project may be not able to use standard LCD module after connected with a certain quantity of sensors or SD card. However, with this I2C interface LCD module, you will...
+

This is another great 20x4 character LCD display with I2C interface. As the pin resources of Arduino controller is limited, your project may be not able to use standard LCD module after connected with a certain quantity of sensors or SD card. However, with this I2C interface LCD module, you will only need 2 pins (SCL and SDA) to display the information. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.

Features:

  • Display - 20 characters per row, 4 rows
  • Supply voltage - 5VDC
  • Back lit (Green with black char color)
  • Interface - I2C, default address: 0x3F or 0x27
  • Adjustable contrast
  • Backlight defaults off, and can be turned on under software control
