Programming Fixture 8266 - ESP8266

9 pc(s)
TOL-02529

$45.50

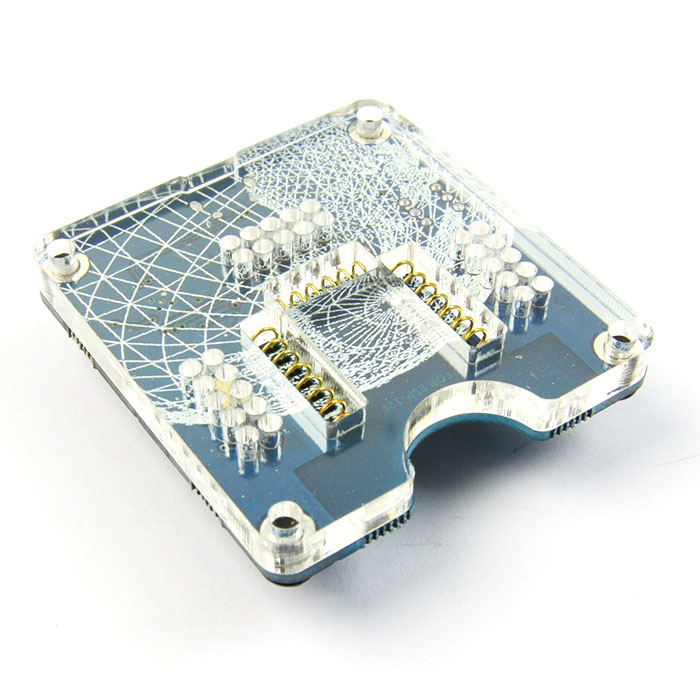

The Programming Fixture 8266 is an innovative programming / testing tool specially designed for ESP-07 , ESP-07S, ESP-12F and ESP-12S. It provides an efficient way to program and test the ESP8266 module before soldering the module to the board. User just need to place the module on the...
+

The Programming Fixture 8266 is an innovative programming / testing tool specially designed for ESP-07, ESP-07S, ESP-12F and ESP-12S. It provides an efficient way to program and test the ESP8266 module before soldering the module to the board. User just need to place the module on the fixture, flash the firmware, take it out and move to the next module. No additional wiring is required to connect the ESP8266 module to the Programming Fixture 8266.

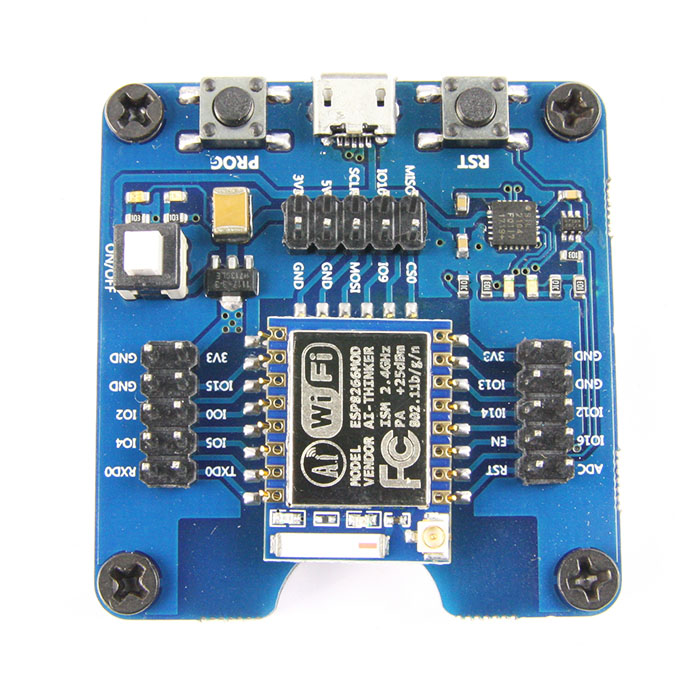

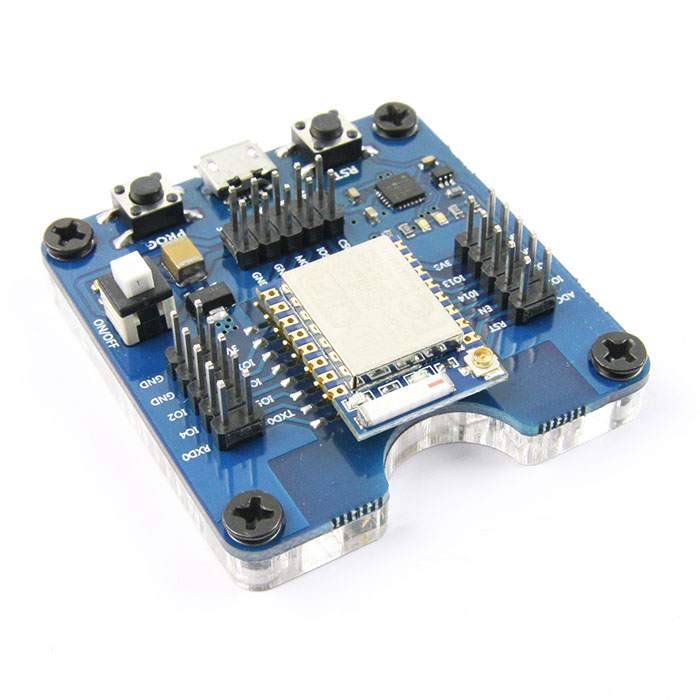

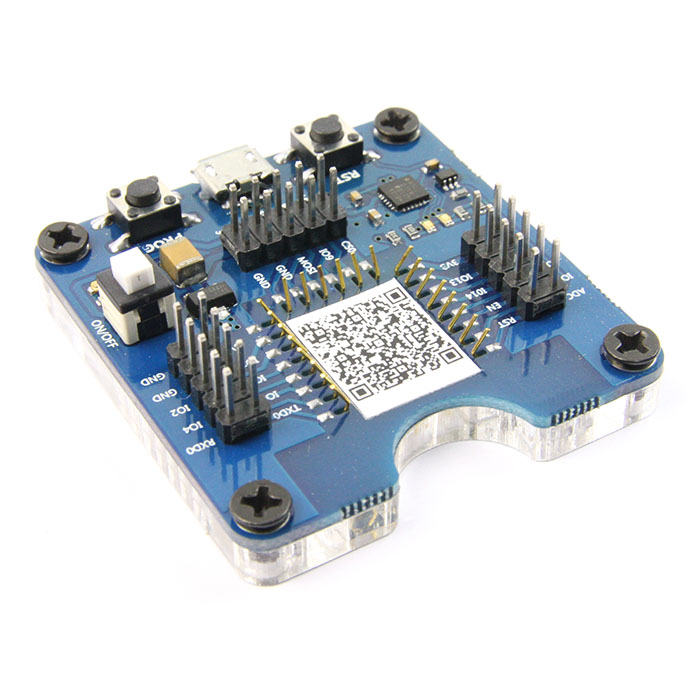

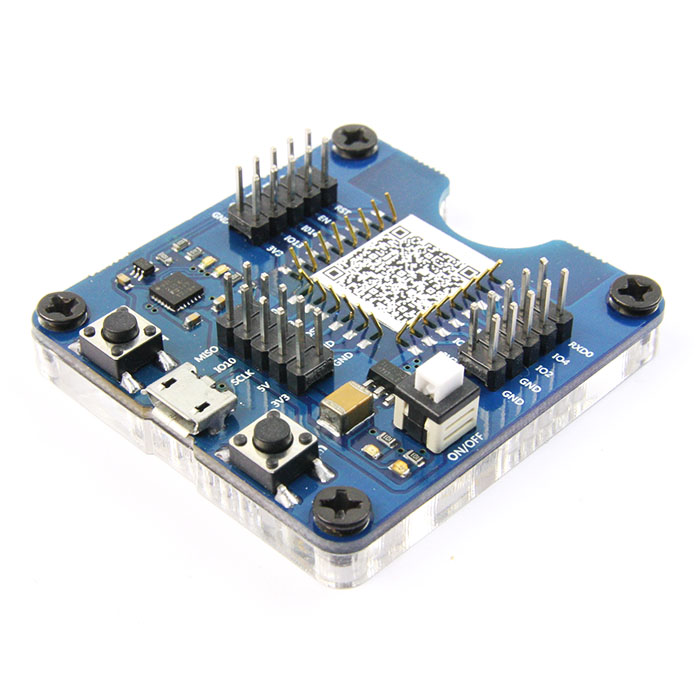

The Programming Fixture 8266 can also be used as a testing or development board since it breaks out all the module's pins to three 10-pin 0.1" headers. It comes with the acrylic base, an on/off switch, a CP2104 USB-TTL serial adapter, programming and reset buttons, a power regulator to supply the ESP8266 with a stable 3.3 V, as well as a micro USB port for power, programming and debugging. It is an ideal tool for low-mid volume production.

NOTE: ESP-07 module not included.

Documents:

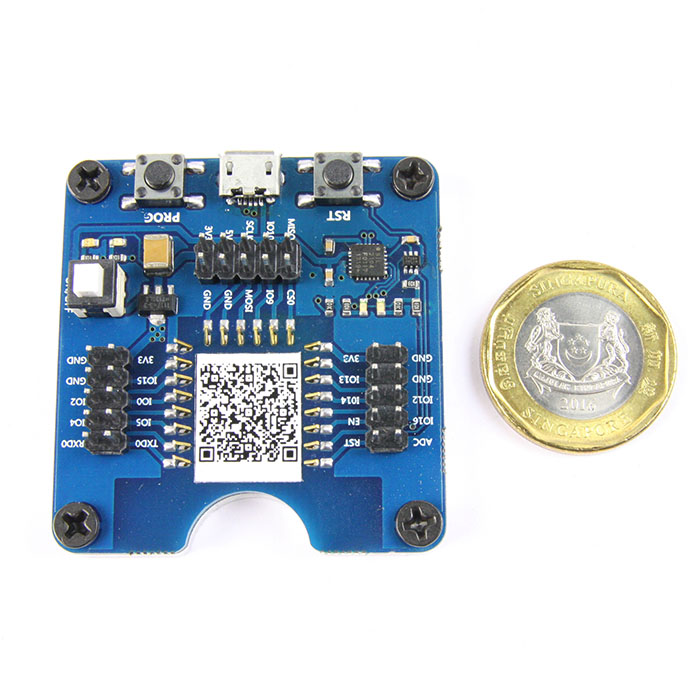

Dimensions: 49(L) x 46.5(W) x 14.6(H)mm
