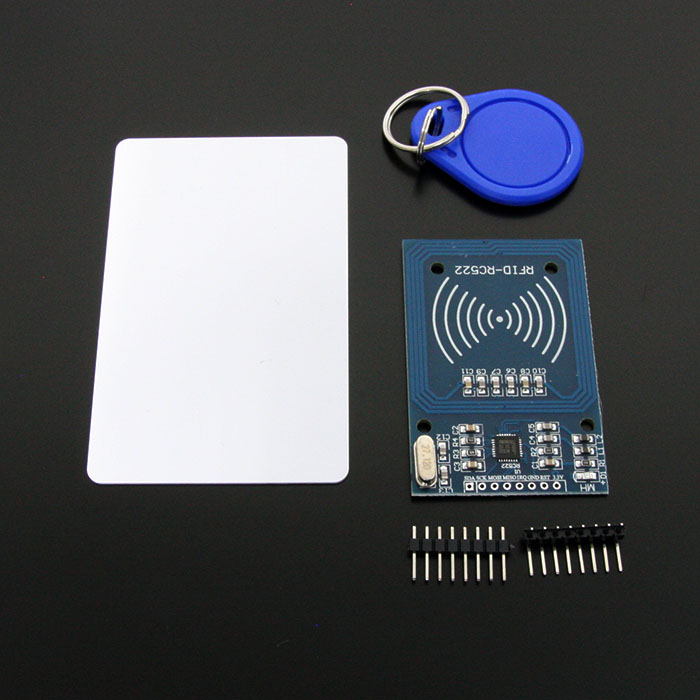

Mifare 13.56MHz RC522 RFID Card Reader (3.3V Supply)

19 pc(s)
DEV-02517

$9.90

MFRC522 is the highly integrated RFID card reader which works on non-contact 13.56MHz communication. Designed by NXP as a low power consumption, low cost and compact size read and write chip, this MFRC522 is the best choice in the development of portable hand-held devices. It supports...
+

MFRC522 is the highly integrated RFID card reader which works on non-contact 13.56MHz communication. Designed by NXP as a low power consumption, low cost and compact size read and write chip, this MFRC522 is the best choice in the development of portable hand-held devices. It supports ISO14443A frames and error correction and higher speed non-contact communication with speed up to 424 kb/s.

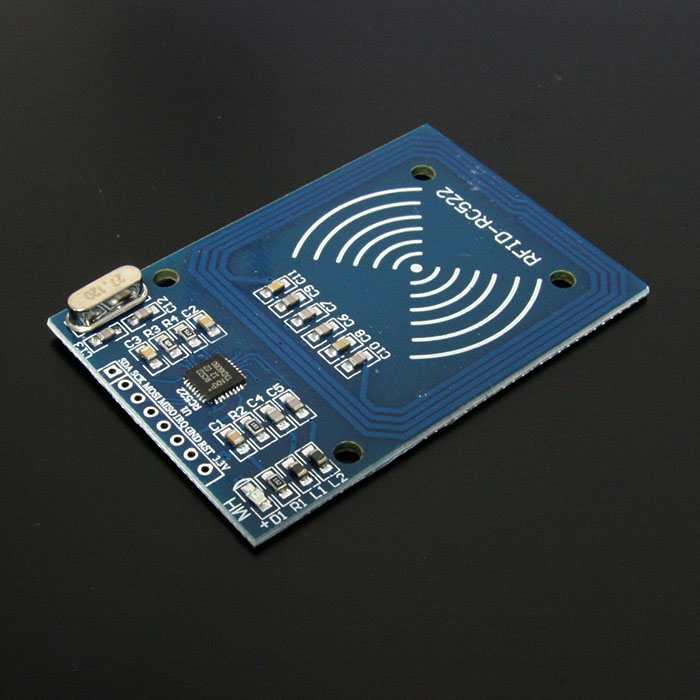

This MFRC522 based RFID Reader Module is easy to use and can be used in a wide range of applications. Module uses 3.3V power supply, and can communicate directly with any microcontroller via SPI interface.

NOTE: This RFID Reader Module works with 3.3V supply. Connecting directly to a 5V logic (e.g Arduino Uno and Mega) will cause damage to the board. A Logic Level Converter is recommended to protect the module.

Features

  • Working current:13 - 26mA @ DC 3.3V
  • Standby current:10 - 13mA @ DC 3.3V
  • Sleep current:<80uA
  • Peak current:<30mA
  • Working frequency:13.56MHz
  • Card reading distance :0 to approx. 40mm
  • SPI interface
  • Data communication speed:10Mbit/s Max.

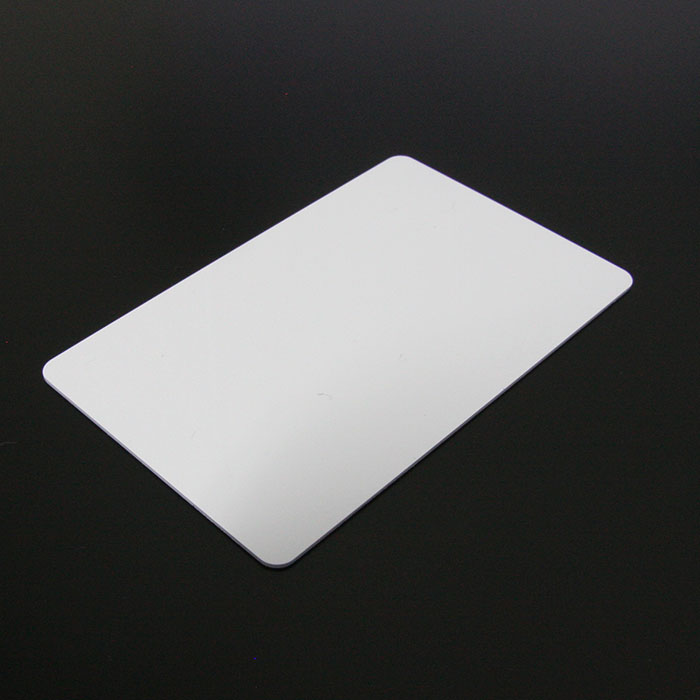

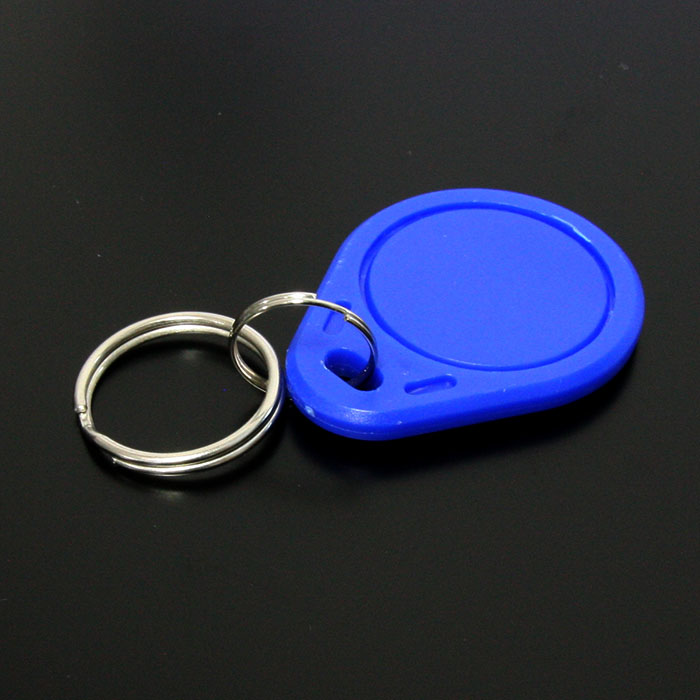

  • Card types supported: Mifare1 S50, Mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire

Document:

Dimensions: 40 x 60mm
