Through-Beam Infrared Sensor Kit - 30cm

8 pc(s)
SEN-02513

$9.90

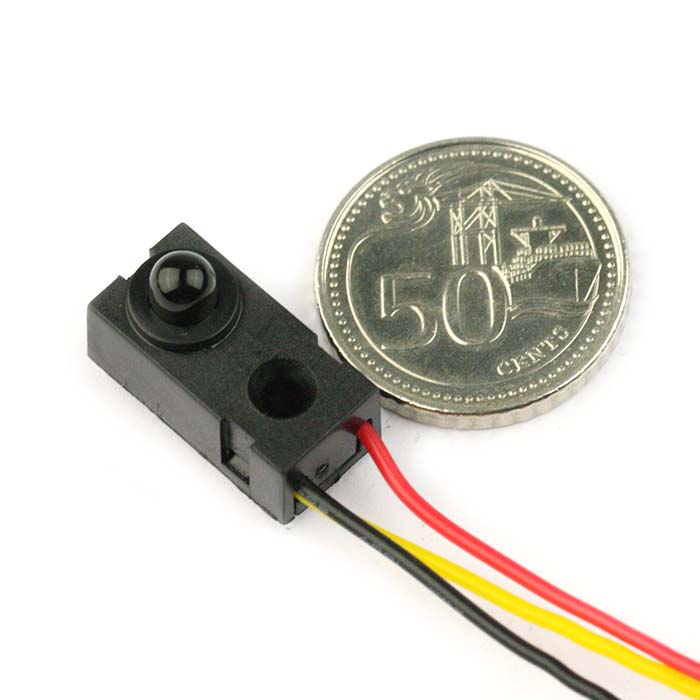

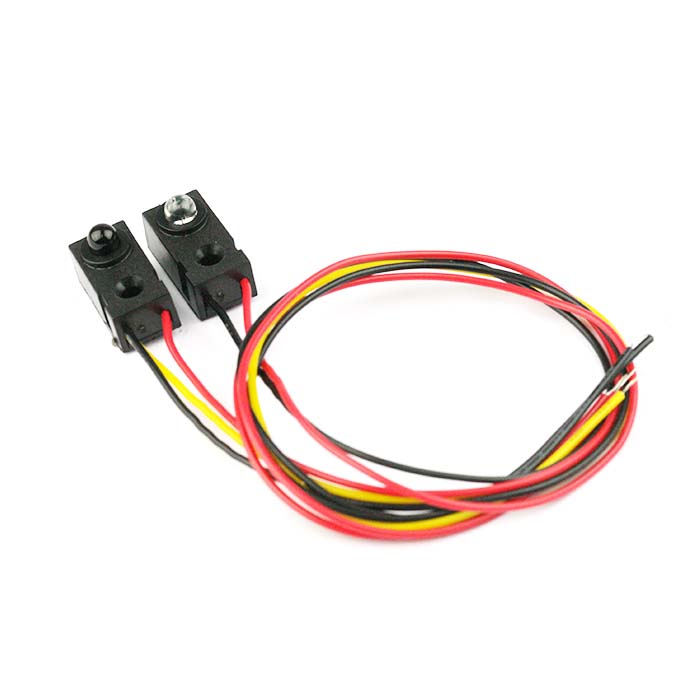

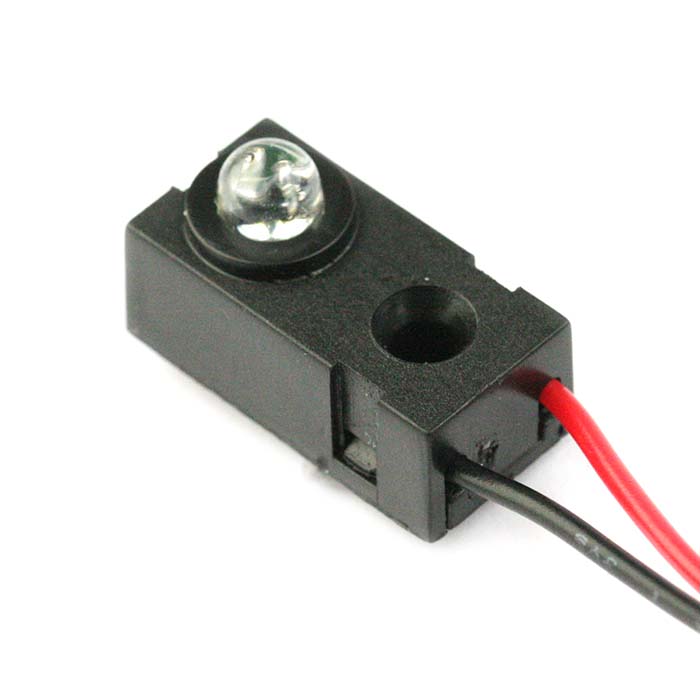

This Through-Beam Infrared Sensor Kit consists of two separate components: an Infrared transmitter and detector. They work by having an transmitter side that sends out a beam of human-invisible infrared light, then a detector across the way which is sensitive to that same light. When an...
+

This Through-Beam Infrared Sensor Kit consists of two separate components: an Infrared transmitter and detector. They work by having an transmitter side that sends out a beam of human-invisible infrared light, then a detector across the way which is sensitive to that same light. When an opaque object passes between the two and block the infra-red beam, the detector's switch will turns on.

The output is an open collector which means that you will need a pull up resistor on the output pin if you want to read a digital signal off the signal wire. The open drain setup allows multiple sensors to be connected on a single input pin of the controller. If any of the sensor go off, the input pin will be pulled low. If you want to control a relay or LED or whatever, the detector can sink up to 100mA to ground.

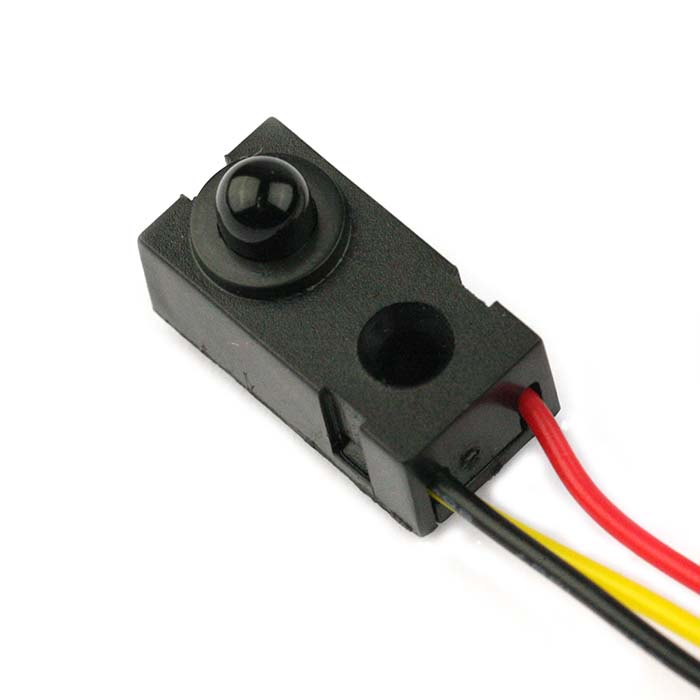

Pinout (Receiver):

  • Red - 5V
  • Black - GND
  • Yellow - Open collector Output

Specifications

  • Power supply: 5V
  • Working current: ~10mA
  • Sensing distance: Approx. 30cm
  • Emitter Current Draw: ~20mA @ 5V
  • Output Current Capability of receiver: 100mA sink (Open collector output)
  • Response time: <2ms
  • Transmitter/Receiver LED Angle: 10°
  • Cable Length: 280mm
  • M3 mounting hole

Dimensions: 20(L) x 10(W) x 8(H)mm, ~6g per pair
