MakerBeamXL - 500mm Black Anodised (Threaded)

4 pc(s)
HDW-02315

$9.90

MakerBeamXL is a Mini-T open-source building system. Mini-T is a miniature version of T-slot (a technology that is widely used for industrial automation, robotics and machine enclosures.) Not only is it small enough to work as a model building system, but it's also precise and strong enough...
+

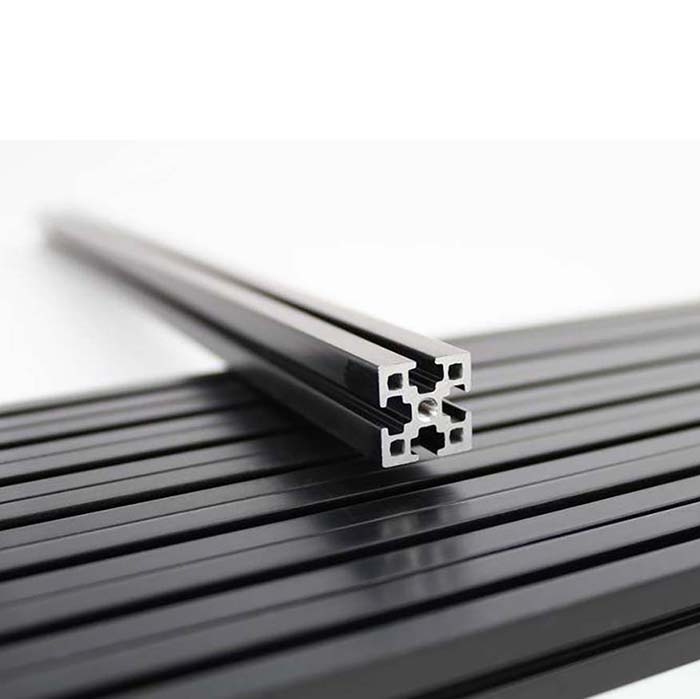

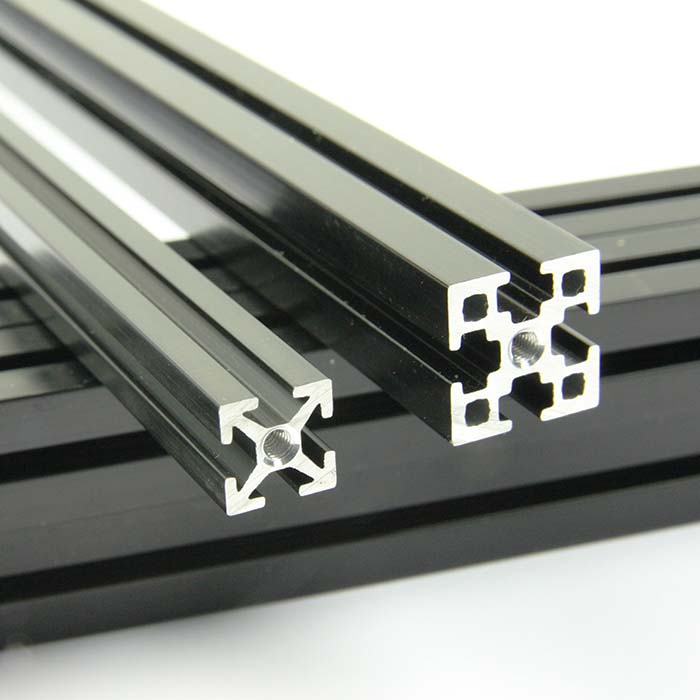

MakerBeamXL is a Mini-T open-source building system. Mini-T is a miniature version of T-slot (a technology that is widely used for industrial automation, robotics and machine enclosures.) Not only is it small enough to work as a model building system, but it's also precise and strong enough to build real machines and robots. It consists of square 15mm extruded aluminum beams, various connectors and the hardware necessary to build just about anything.

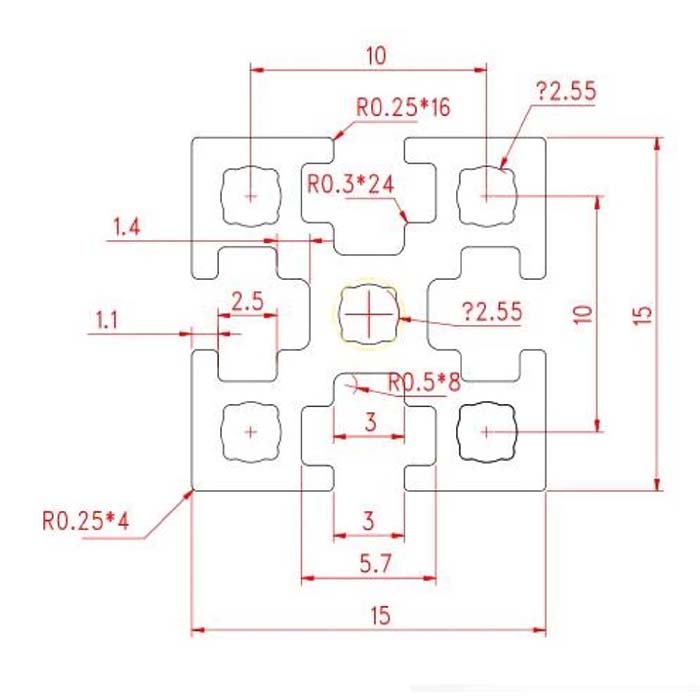

This stuff is very cool, and there is absolutely no end to what can be done with it. Motor mounts can bolt directly to the beams, you can mount servos as well. Because MakerBeam is open-source, you're encouraged to develop and build your own pieces to interlink using the Mini-T standard, even further expanding the possibilities. Check below for the extrusion profile.

The weight of MakerBeamXL is 2.97 g/cm

Specifications:

  • Dimensions: 15mm x 15mm
  • Lenght: 500mm
  • Weight: 3.97 g/cm
  • Material: Aluminum 6063-T5 black anodised
