Mini RGB LED Controller with IR Remote

29 pc(s)
DIS-02287

$3.90

This mini 5-24VDC RGB LED Controller with 24 Button Infrared Remote is a unique RGB LED controller for use with all our 12VDC RGB LED strip. It can be used to control color effects for common anode style 5-24VDC RGB LED Lights strip. Maximum load is 2 amps per channel, 6 amps total. The...
+

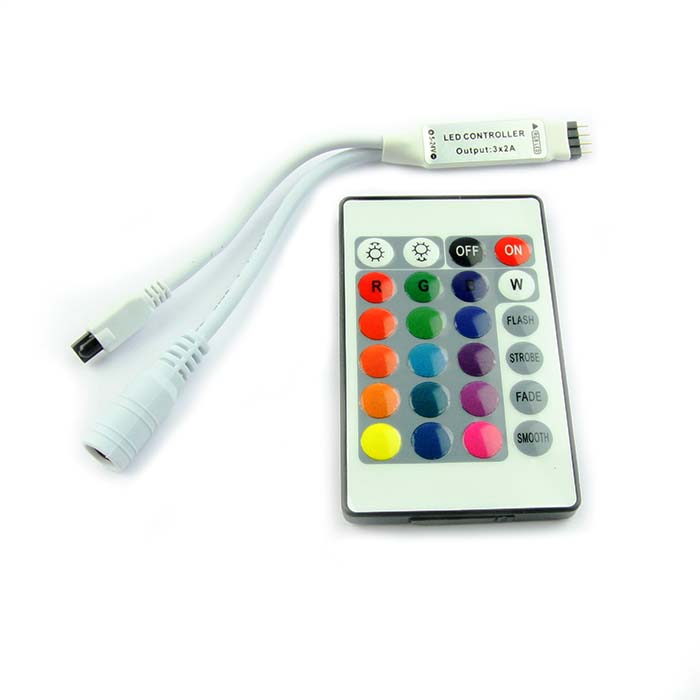

This mini 5-24VDC RGB LED Controller with 24 Button Infrared Remote is a unique RGB LED controller for use with all our 12VDC RGB LED strip. It can be used to control color effects for common anode style 5-24VDC RGB LED Lights strip. Maximum load is 2 amps per channel, 6 amps total. The Controller comes with 4 preprogrammed modes and 16 preprogrammed single colors selection.

Power is input through a 5.5 X 2.1mm male barrel connector, and signal output is connected by a 4-way plug. The receiver is barely wider than an RGB LED strip and can easily installed in places where space is limited.

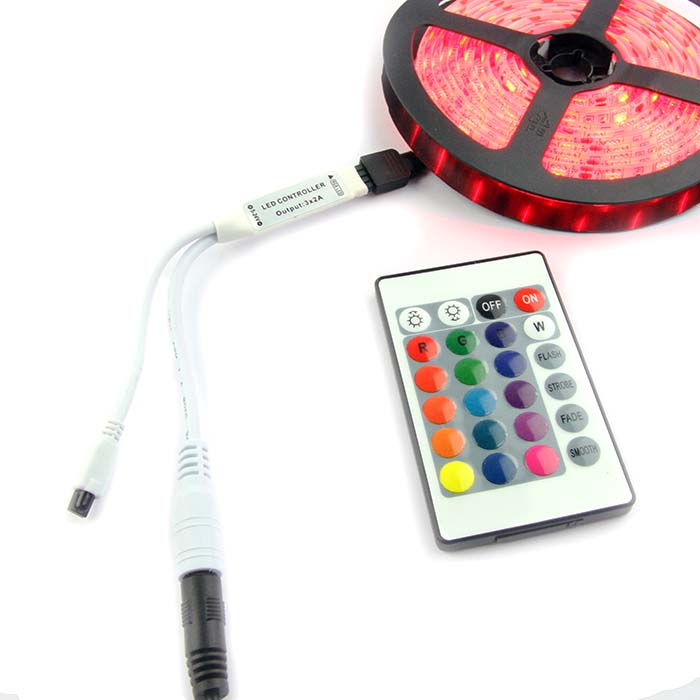

Simply connect the RGB mini receiver module to a DC power supply and connect the 4-pin plug of your RGB LED strip. This easy to install mini RGB controller is up and running in minutes!

Features:

  • Supply voltage: 5V to 24V DC
  • Connection type: 4-pin, 3 loop, common anode
  • Output current: 2A per channel Max.
