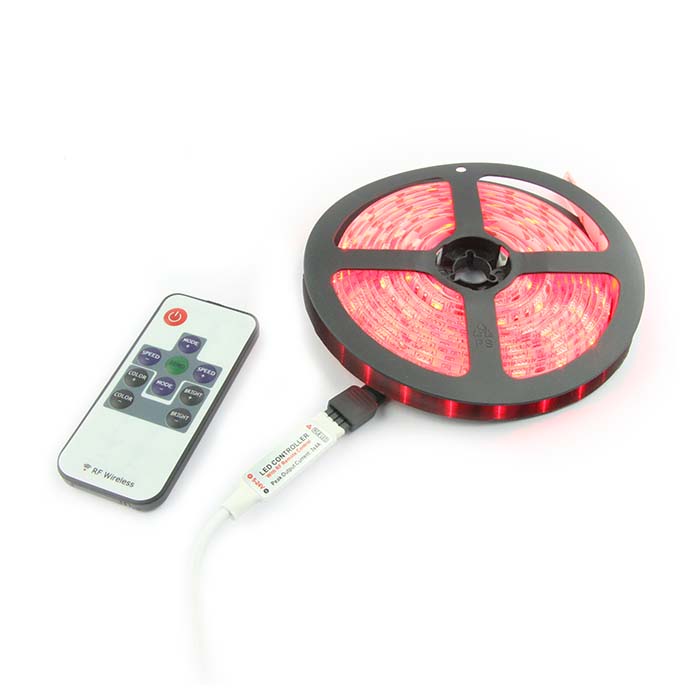

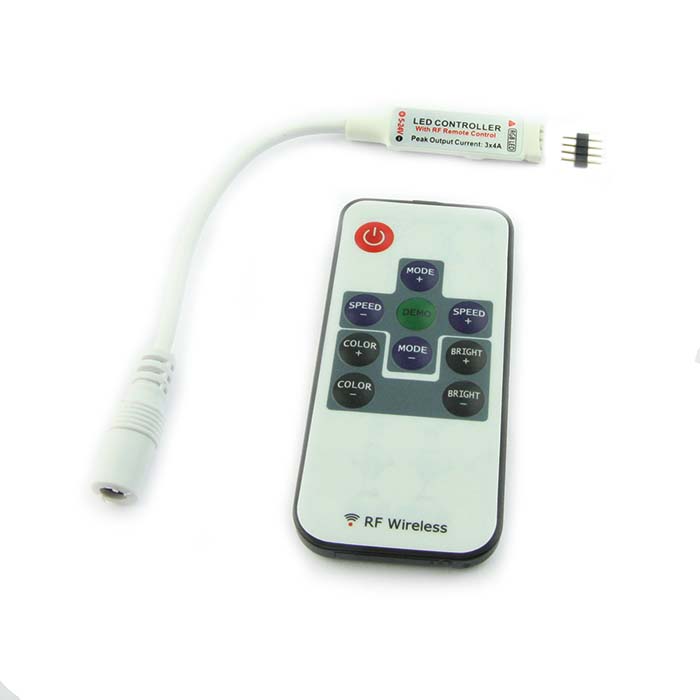

This mini 5-24VDC RGB LED Controller is loaded with functionality and has an RF remote range of up to 30 meters. It can be used to control color effects for common anode style 5-24VDC RGB LED Lights strip. The maximum load is 4 amps per channel, 12 amps total. Functions include 20 static colors with 5 levels of dim, and 19 varieties of color flashing, strobing, and fading modes with speed adjustment.
Power is input through a 5.5 X 2.1mm male barrel connector, and signal output is connected by a 4-way plug. The receiver is barely wider than an RGB LED strip and can easily installed in places where space is limited.
Simply connect the RGB mini receiver module to a DC power supply and connect the 4-pin plug of your RGB LED strip. This easy to install mini RGB controller is up and running in minutes!
- Supply voltage: 5V to 24V DC
- Connection type: 4-pin, 3 loop, common anode
- Output current: 4A per channel Max.
- Transmitter frequency: 433.92 Mhz
