MakerBeam Bearing

17 pc(s)
HDW-02222

$29.00

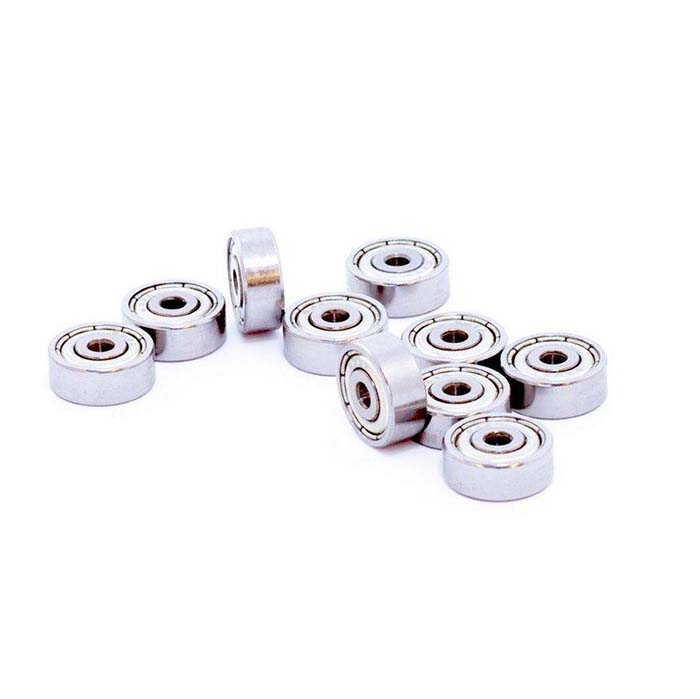

Stainless steel bearing for the MakerBeam aluminum profile. The bearing is 5mm thick. The outside dimension of the bearing is 13mm. The iinside diameter measures 3mm. If you fit it to a MakerBeam it will extend about 1.5mm from the edge of the beam. The 3mm inner diameter makes is easy to...
+

Stainless steel bearing for the MakerBeam aluminum profile. The bearing is 5mm thick. The outside dimension of the bearing is 13mm. The iinside diameter measures 3mm. If you fit it to a MakerBeam it will extend about 1.5mm from the edge of the beam. The 3mm inner diameter makes is easy to mount on a M3 bolt.

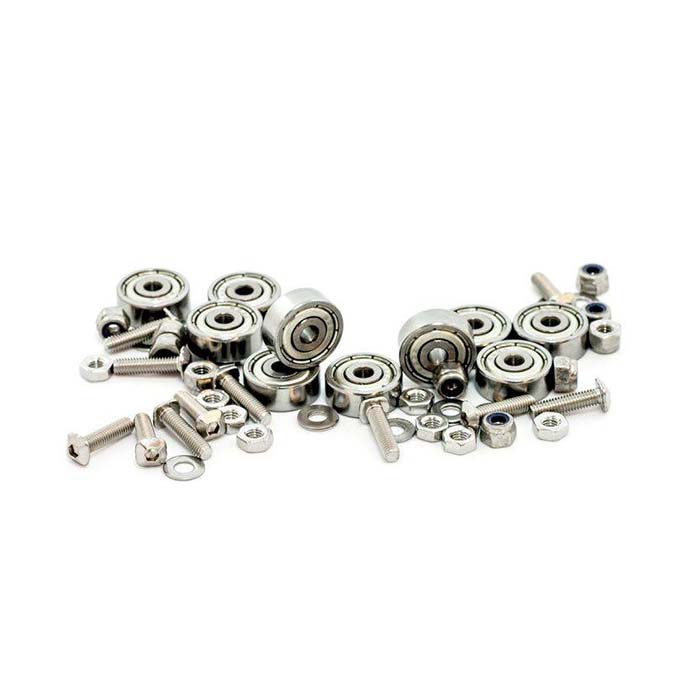

Package contains:

  • 10x Bearing
  • 10x M3 12mm squareheaded bolts with hex hole
  • 10x washers
  • 10x M3 nuts
  • 10x M3 self locking nuts

Good to know
