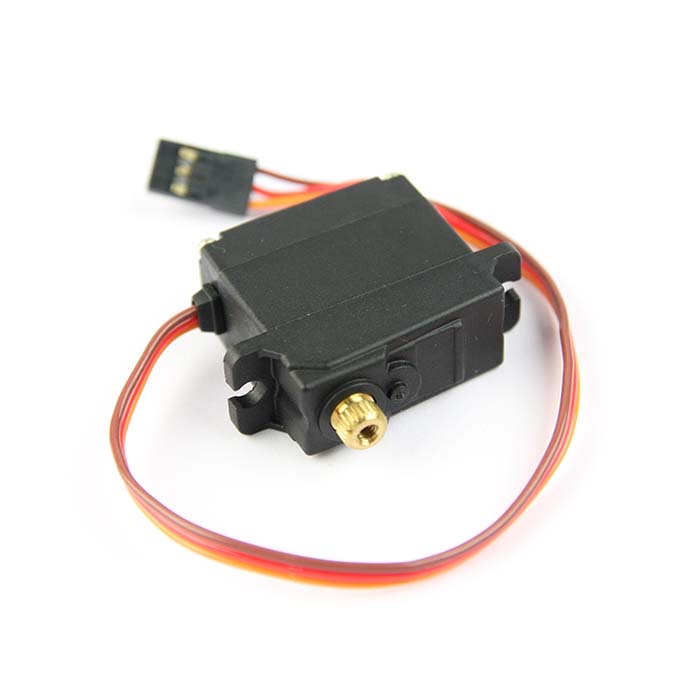

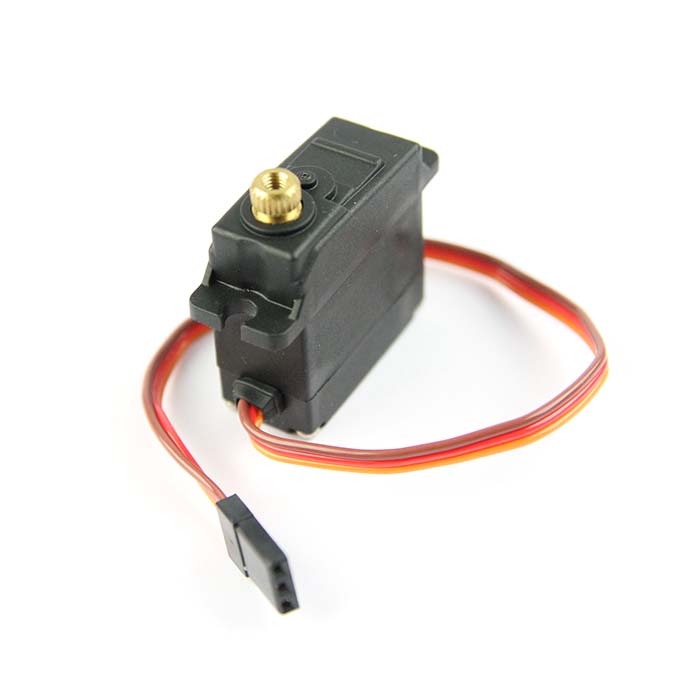

Servo - Generic Metal Gear (Micro Size)

202 pc(s)
RBT-02159

$7.95

List price: $9.95
Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 3.2kg of maximum torque at 0.18 sec/60° This is a small servo with a standard 3 pin power and control cable (red = power, brown = ground, and yellow = data). The...
+

Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 3.2kg of maximum torque at 0.18 sec/60°

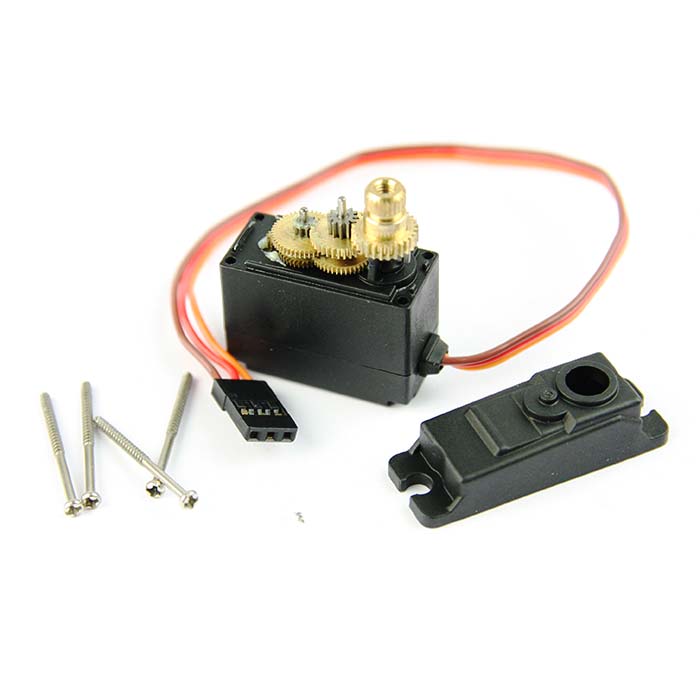

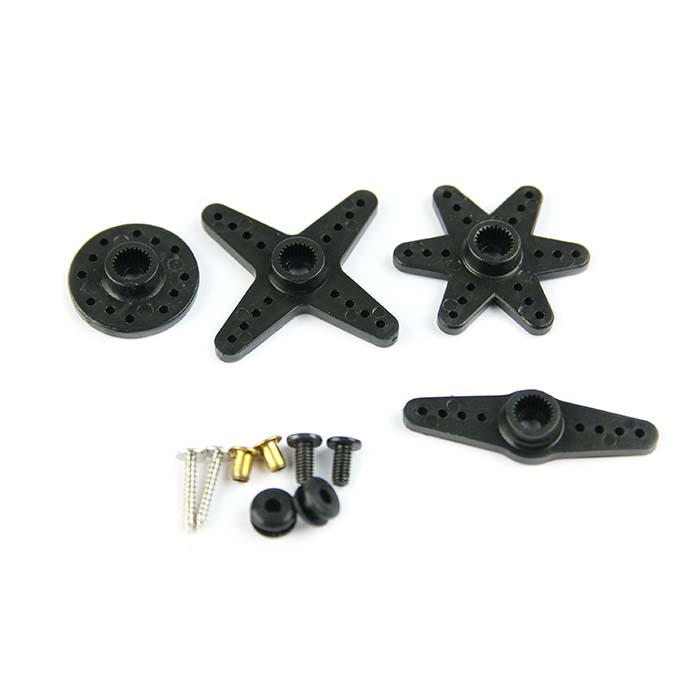

This is a small servo with a standard 3 pin power and control cable (red = power, brown = ground, and yellow = data). The servo is supplied with mounting screws and a selection of servo horns to suit your preferred application

Features:

  • Operating Voltage: 4.8V~6.0V
  • Operating speed: 0.20sec/60 degree (4.8V)
  • Operating speed: 0.18sec/60 degree (6V)
  • Output torque: 2.8kg/cm (19.6oz/in) (4.8V)
  • Output torque: 3.2kg/cm (19.6oz/in) (6V)

Documents:

Dimensions: 28.8 x 13.8 x 30.2mm
