Magician Rover Chassis Kit v2

89 pc(s)
RBT-02151

$29.90

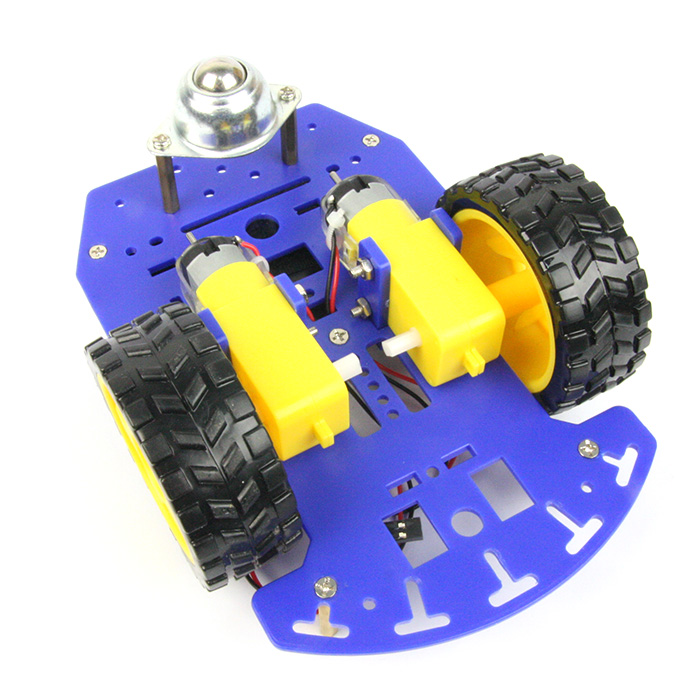

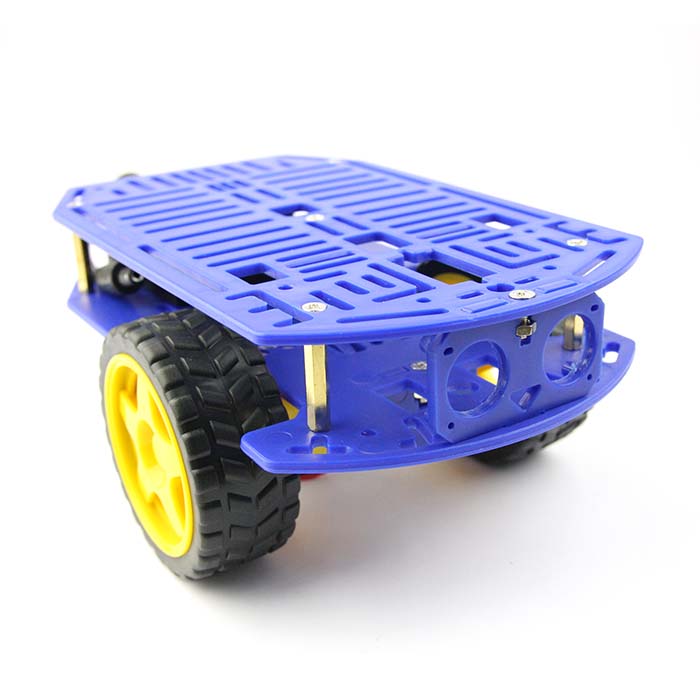

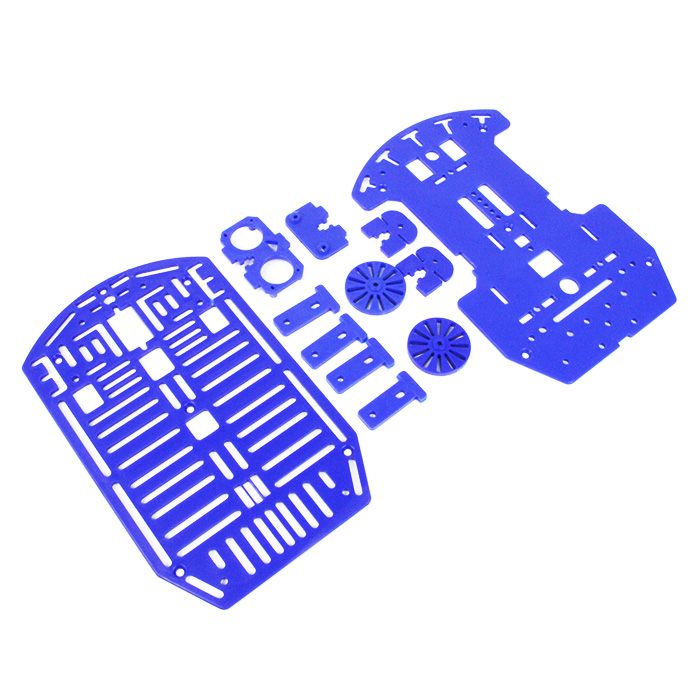

The Magician Rover Chassis v2 is our latest robot platform from Dagu. It features two gearmotors with 65mm wheels and a rear caster. The chassis plates are injection molded with a wide variety of mounting holes for sensors, controllers, power, etc. Simply bolt the two plastic platforms...
+

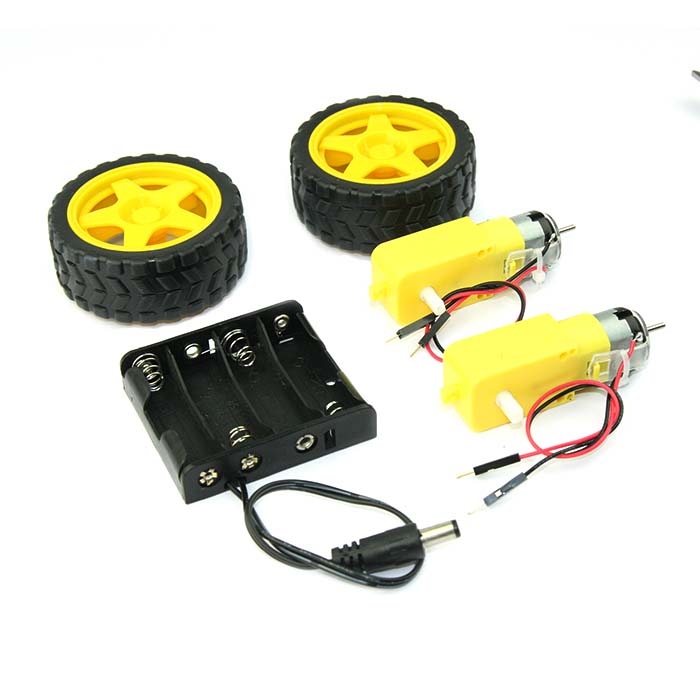

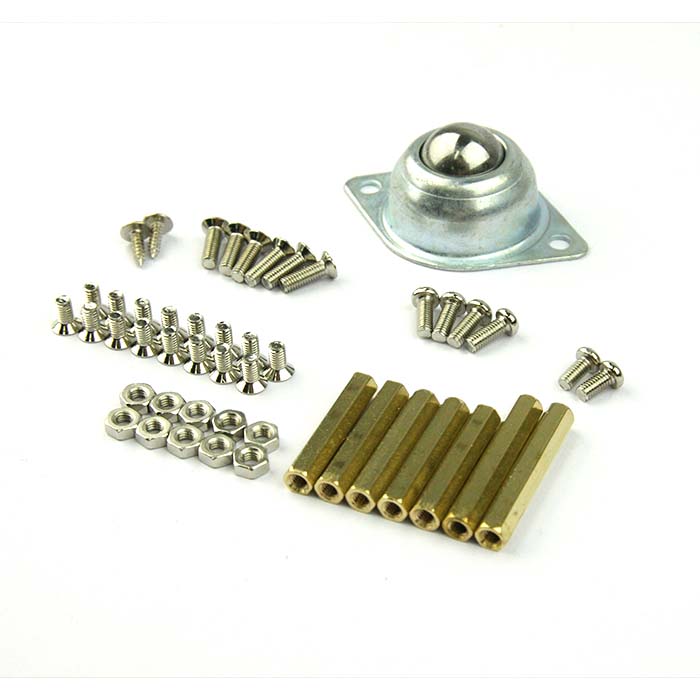

The Magician Rover Chassis v2 is our latest robot platform from Dagu. It features two gearmotors with 65mm wheels and a rear caster. The chassis plates are injection molded with a wide variety of mounting holes for sensors, controllers, power, etc. Simply bolt the two plastic platforms together, attach the motors and caster and add your favorite robotics controller. This kit includes all of the parts needed to assemble the chassis as well as a bracket for HC-SR04 ultrasonic sensor and a 4xAA battery holder with barrel jack termination.

Note: The chassis requires assembly but has detailed instructions. Kit exclude electronic parts and tools.

Dimensions: 110 x 174mm

Features:

  • Max Motor Voltage: 6VDC
  • No Load Speed: 90±10rpm
  • No Load Current:190mA(max.250mA)
  • Torque: 800gf.cm
  • Stall Current: ~1A
  • 65mm Diameter Wheels (30mm Wide)
  • Plastic Rims with Solid Rubber Tires
  • Wheel encoder disc
