PIR Motion Sensor (w/Adjustable delay and Sensitivity)

28 pc(s)
SEN-02046

$12.50

PIR sensors are used to detect motion from pets/humanoids from about 20 feet (~6 meters) away. This one has an adjustable delay before firing (approx 2-4 seconds) and adjustable sensitivity. You can easily reposition the sensor or mount it using the two holes on either side Runs on...
+

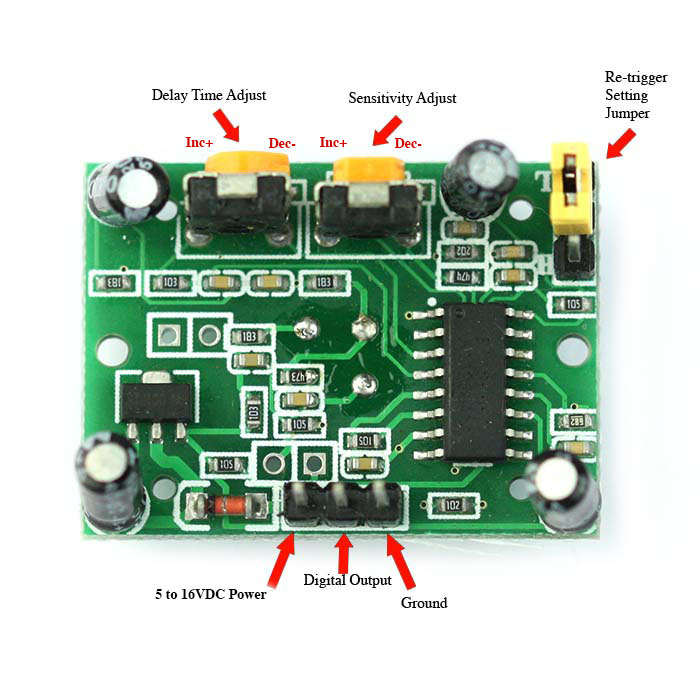

PIR sensors are used to detect motion from pets/humanoids from about 20 feet (~6 meters) away. This one has an adjustable delay before firing (approx 2-4 seconds) and adjustable sensitivity. You can easily reposition the sensor or mount it using the two holes on either side

Runs on 5V-12V power (if you need to run it off of 3V you can do that by bypassing the regulator, but that means doing a bit of soldering). Digital signal output is 3.3V high/low. Sensing range is about 7 meters (120 degree cone)

Dimensions: 32(L) x 24(W) x 25mm
