Load Cell Amplifier - HX711

3 pc(s)
SEN-02035

$14.20

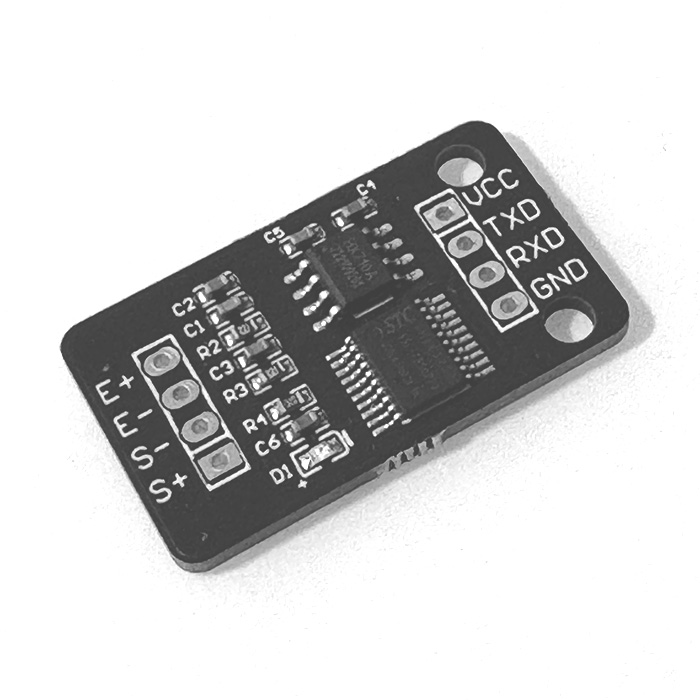

This Load Cell Amplifier is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the amplifier to your microcontroller you will be able to read the changes in the resistance of the load cell and with some calibration you'll be able...
+

This Load Cell Amplifier is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the amplifier to your microcontroller you will be able to read the changes in the resistance of the load cell and with some calibration you'll be able to get very accurate weight measurements. This can be handy for creating your own industrial scale, process control, or simple presence detection.

The HX711 uses a two wire interface (Clock and Data) for communication. Any microcontroller's GPIO pins should work and numerous libraries have been written making it easy to read data from the HX711.

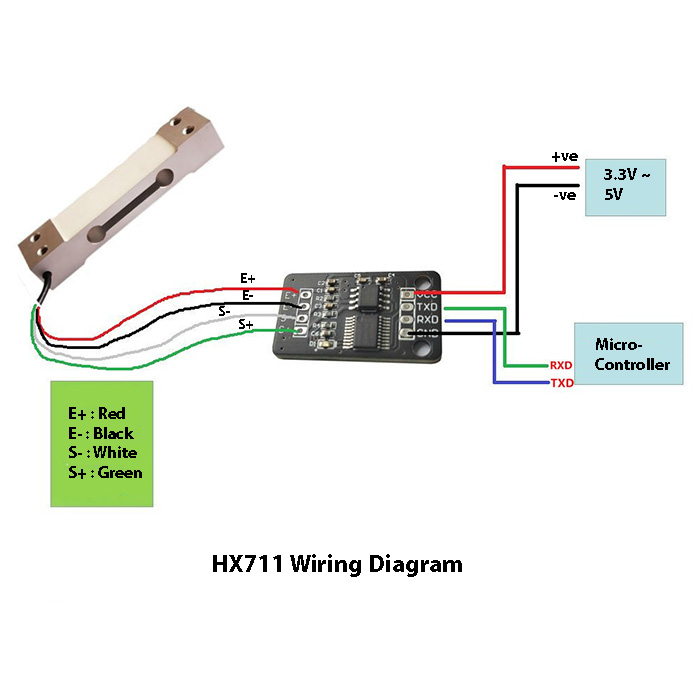

Load cells use a four wire wheatstone bridge to connect to the HX711. These are commonly coloured Red, Black, White, Green. Each color corresponds to the conventional color coding of load cells:

  • Red (Excitation+ or VCC)
  • Black (Excitation- or GND)
  • White (Amplifier+, Signal+, or Output+)
  • Green (A-, S-, or O-)

Please keep in mind that some load cells might have slight variations in color coding.

Features:

  • Operation Voltage: 2.7V-5V
  • Operation Current: < 1.5mA
  • Sample rate: 10Hz
  • Simultaneous 50 and 60Hz supply rejection
