Digital PWM Motor Speed Controller - 5A

10 pc(s)
RBT-01989

$18.50

This DC motor controller allows you to control both the speed and direction of a DC motor without sacrificing torque. It can provides up to a maximum continuous current of 5A to your DC motor or other DC load using a Pulse Width Modulated (PWM) with a Duty cycle fully adjustable from 10%-100%....
+

This DC motor controller allows you to control both the speed and direction of a DC motor without sacrificing torque. It can provides up to a maximum continuous current of 5A to your DC motor or other DC load using a Pulse Width Modulated (PWM) with a Duty cycle fully adjustable from 10%-100%.

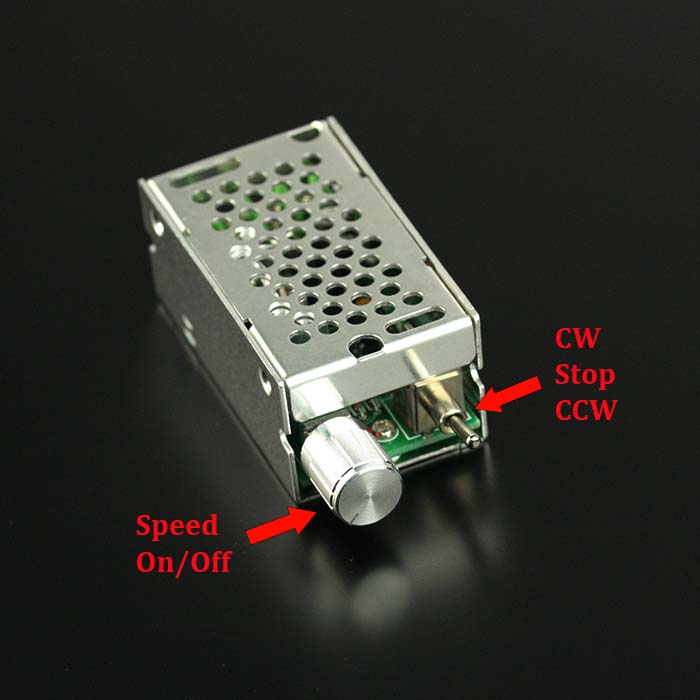

This controller users a robust sealed potentiometer for speed and On/Off control. It does not require microcontroller or programming.

Features:

  • Supply / Load Voltage: 12 to 40V DC
  • Bi-directional
  • 5 Amps Maximum Continuous Current
  • PWM Frequency: 15KHz
  • PWM Duty Cycle Range: 10% - 100%
  • Onboard 10A fuse
  • Over-voltage / over-current protection

Applications:

  • Motor Control
  • DC / LED Light Dimmer
  • Heating Control, etc.

Dimensions: 73(L) x 39(W) x 31(H)mm
