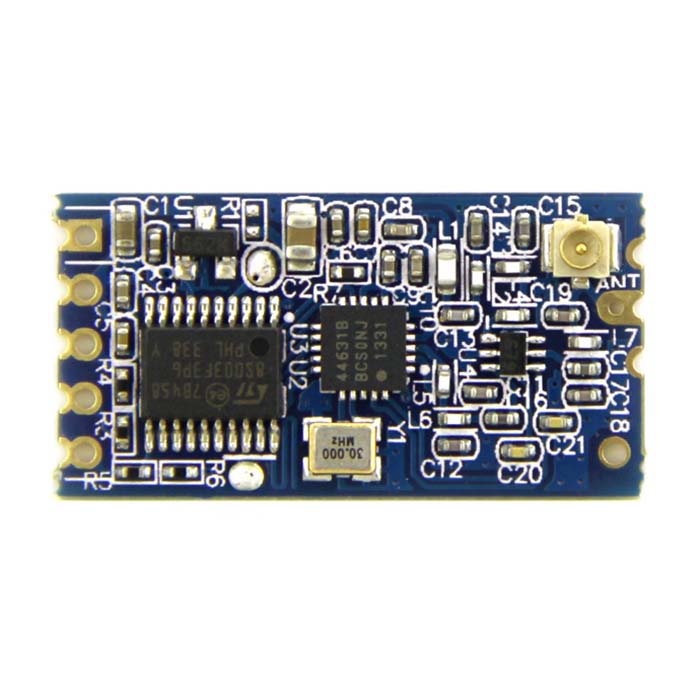

434Mhz Wireless Transceiver Module

3 pc(s)
WIR-01980

$18.50

This 434Mhz Wireless Transceiver Module is a new-generation multi-channel RF transceiver operating at the sub-GHz ISM bands from 433.4-473.0MHz,. The module supports up to 100 channels, with selectable RF power transmitter and highly sensitive RF receiver. Its output power level ranges from...
+

This 434Mhz Wireless Transceiver Module is a new-generation multi-channel RF transceiver operating at the sub-GHz ISM bands from 433.4-473.0MHz,. The module supports up to 100 channels, with selectable RF power transmitter and highly sensitive RF receiver. Its output power level ranges from -1dBm to 20dBm while its receiver sensitivity can attain -124dBm at 500bps RF data rate.

These modules allow a very reliable and simple point-to-point communication between microcontrollers, computers, systems, really anything with a serial port! The module could find use in home/building automation, alarm systems, passive keyless entry, and many other applications.

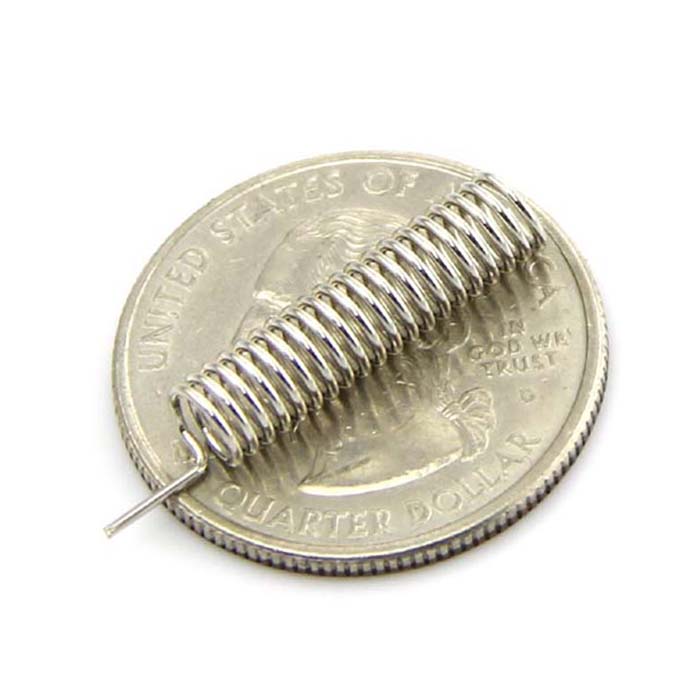

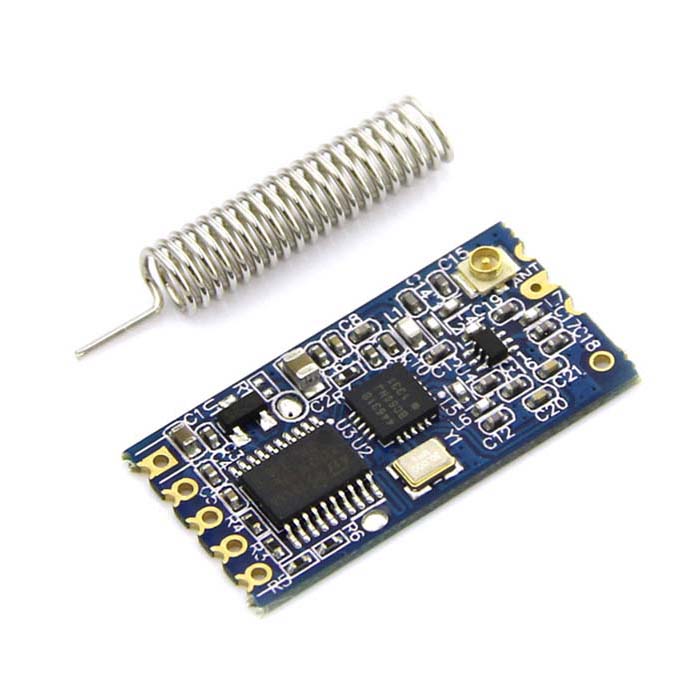

Package includes spring antenna.

Features:

  • Supply voltage: 3.2 to 5.5VDC
  • maximum 1000m range
  • 236kbps max. RF data rate
  • 100 RF channels
  • Maximum 100mW (20dBm) output
  • AT command set
  • Built-in IPEX connector

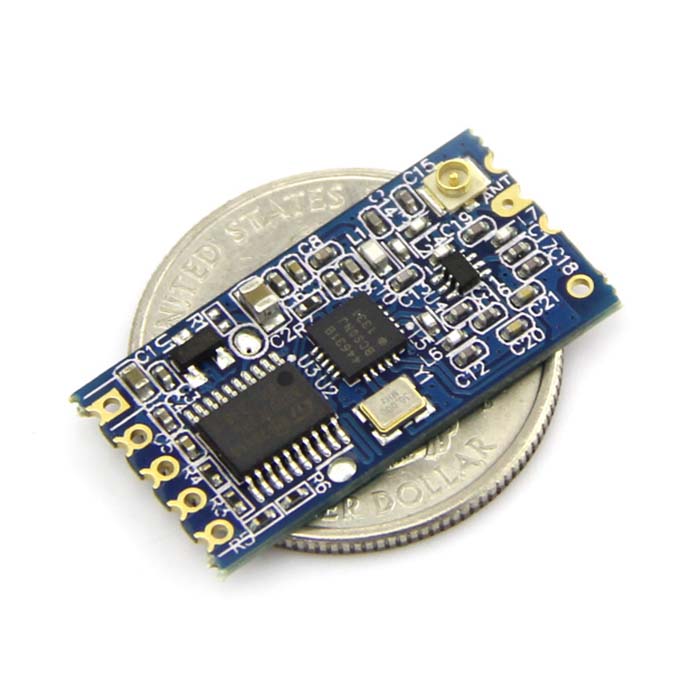

Dimensions: 27.4(L) x 13.2(W) x 2.3(H)mm
