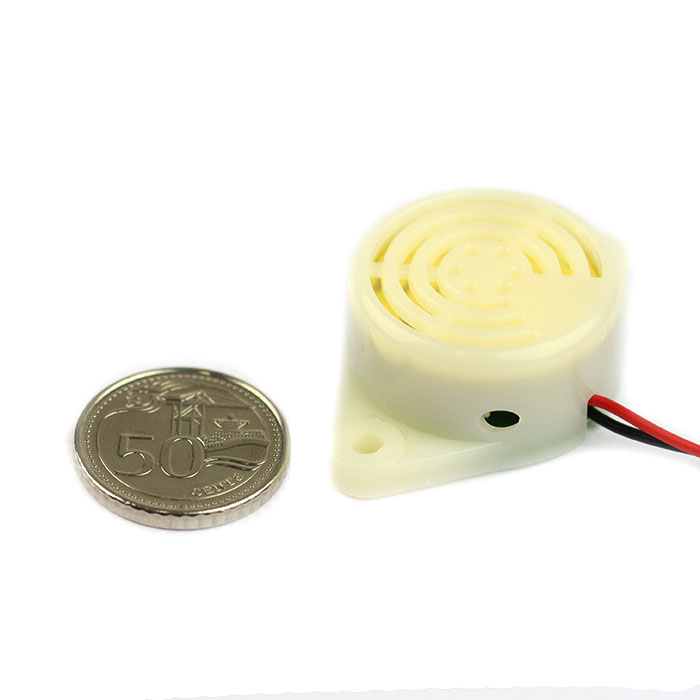

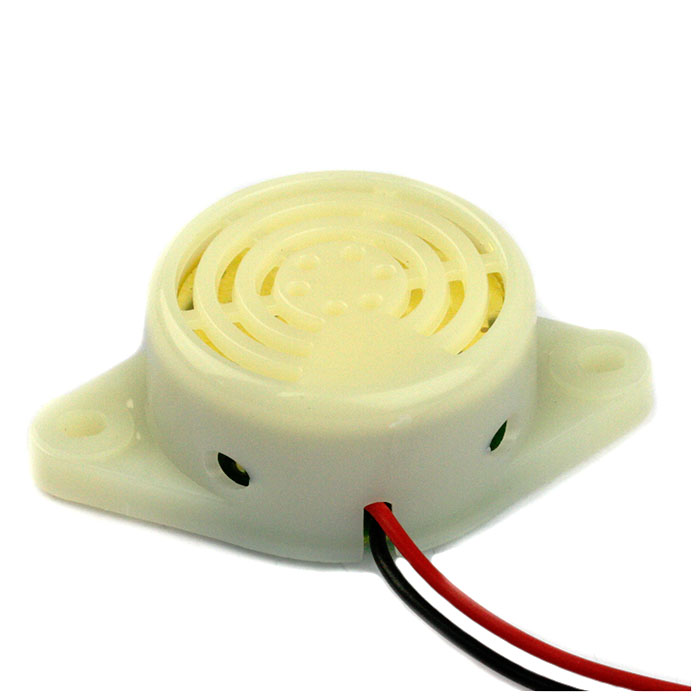

Active Piezo Buzzer 3-20VDC Pulse Tone

15 pc(s)
COM-01927

$5.50

Loud sounders that may be powered with a voltage of anywhere from 3.0 to 24VDC. It has additional circuitry in it which makes it easier to use but limits the buzzer to only making one type of a sound (tone). It only requires DC power source for the tone to be generated. This buzzer is...
+

Loud sounders that may be powered with a voltage of anywhere from 3.0 to 24VDC. It has additional circuitry in it which makes it easier to use but limits the buzzer to only making one type of a sound (tone). It only requires DC power source for the tone to be generated.

This buzzer is designed for Pulse tone.

Note: This active buzzer cannot be used to play melodies.

Features:

  • Voltage range: 3 to 24VDC
  • Rated current: <30mA
  • Output : >90dB
  • Sound Frequency: 3KHz +/-0.5KHz
