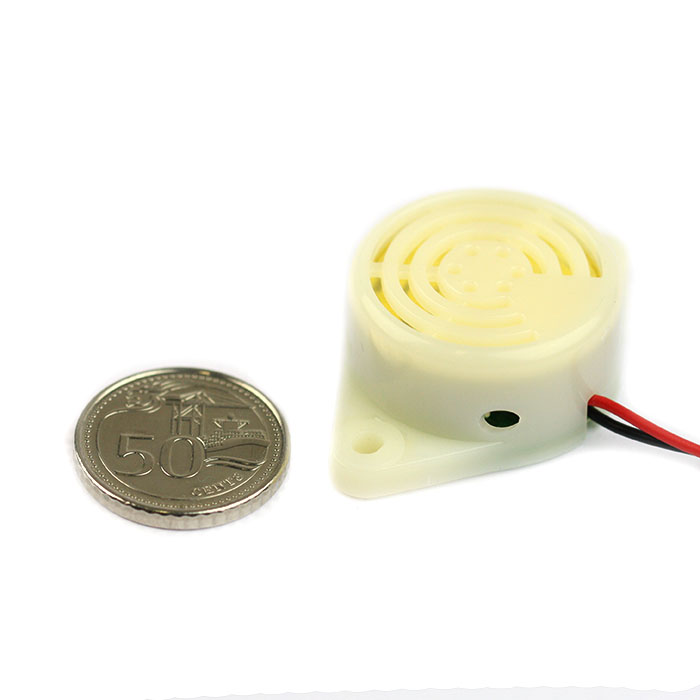

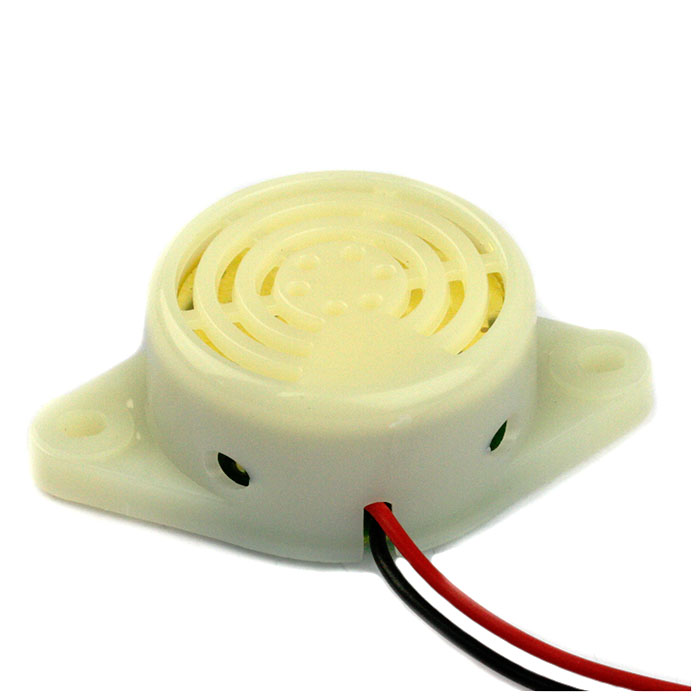

Active Piezo Buzzer 3-20VDC Continuous Tone

23 pc(s)
COM-01926

$5.50

Loud sounders that may be powered with a voltage of anywhere from 3.0 to 24VDC. It has additional circuitry in it which makes it easier to use but limits the buzzer to only making one type of a sound (tone). It only requires DC power source for the tone to be generated. This buzzer is...
+

Loud sounders that may be powered with a voltage of anywhere from 3.0 to 24VDC. It has additional circuitry in it which makes it easier to use but limits the buzzer to only making one type of a sound (tone). It only requires DC power source for the tone to be generated.

This buzzer is designed for Continuous tone.

Note: This active buzzer cannot be used to play melodies.

Features:

  • Voltage range: 3 to 24VDC
  • Rated current: <12mA
  • Output : >95dB
  • Sound Frequency: 3KHz +/-0.5KHz
