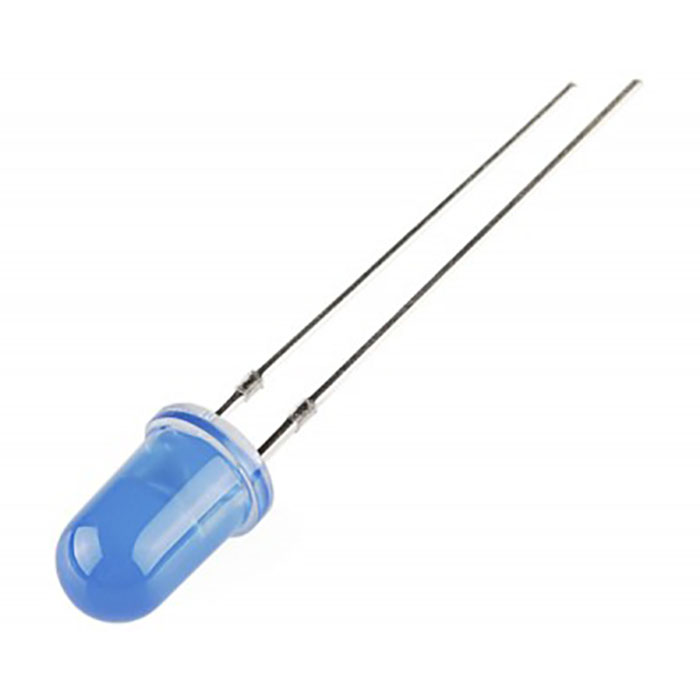

Diffused Blue LED - 5mm (10 pcs)

73 pc(s)
DIS-01841

$1.00

LEDs - those blinky things. A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays. This is a very basic 5mm LED with a blue lens. It has a typical forward voltage of 3.1V and a rated forward current of 20mA. Pack of 10 diffused blue LEDs....
+

LEDs - those blinky things. A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays.

This is a very basic 5mm LED with a blue lens. It has a typical forward voltage of 3.1V and a rated forward current of 20mA.

Pack of 10 diffused blue LEDs.

Features:

  • 3.0-3.2VDC forward drop
  • Max current: 20mA
  • Suggested using current: 16-18mA
  • Luminous Intensity: 300-500mcd
