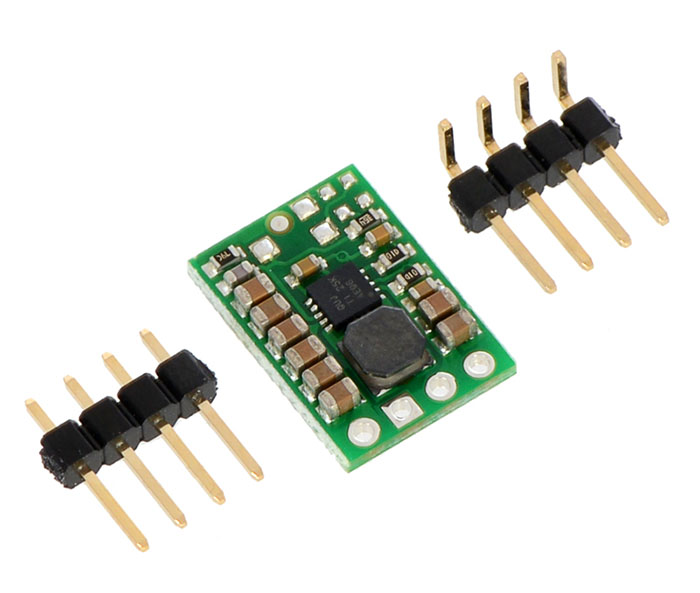

3.3V Step-Up/Step-Down Voltage Regulator S7V8F3

9 pc(s)
PWD-01831

$8.90

The Pololu step-up/step-down voltage regulator S7V8F3 is a switching regulator (also called a switched-mode power supply (SMPS) or DC-to-DC converter) that uses a buck-boost topology. It takes an input voltage from 2.7 V to 11.8 V and increases or decreases the voltage to a fixed 3.3 V output...
+

The Pololu step-up/step-down voltage regulator S7V8F3 is a switching regulator (also called a switched-mode power supply (SMPS) or DC-to-DC converter) that uses a buck-boost topology. It takes an input voltage from 2.7 V to 11.8 V and increases or decreases the voltage to a fixed 3.3 V output with a typical efficiency of over 90%. The input voltage can be higher than, lower than, or equal to the set output voltage, and the voltage is regulated to achieve a steady 3.3 V.

This flexibility in input voltage is especially well-suited for battery-powered applications in which the battery voltage begins above the desired output voltage and drops below the target as the battery discharges. Without the typical restriction on the battery voltage staying above the required voltage throughout its life, new battery packs and form factors can be considered. For example:

  • A 3-cell battery holder, which might have a 4.5 V output with fresh alkalines or a 3.0 V output with partially discharged NiMH cells, can be used with this regulator to power a 3.3 V circuit.
  • A single lithium-polymer cell can run a 3.3 V device through its whole discharge cycle.

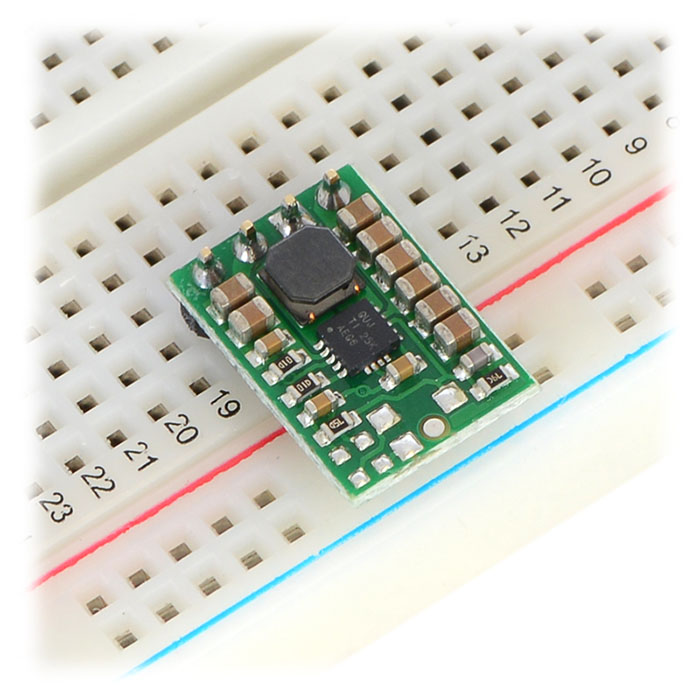

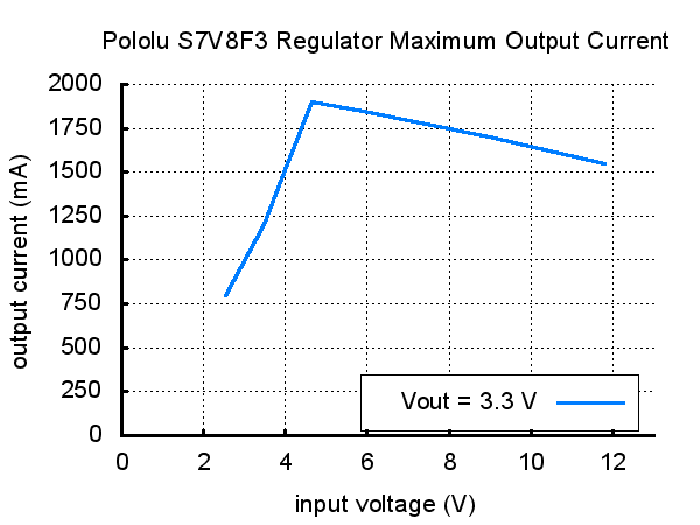

In typical applications, this regulator can deliver up to 1 A continuous when the input voltage is higher than 3.3 V (stepping down). When the input voltage is lower than 3.3 V (stepping up), the available current decreases as the difference between the voltages increases; please see the graphs at the bottom of this page for a more detailed characterization. The regulator has short-circuit protection, and thermal shutdown prevents damage from overheating; the board does not have reverse-voltage protection.

NOTE: During normal operation, this product can get hot enough to burn you. Take care when handling this product or other components connected to it.

Features

  • Input voltage: 2.7 V to 11.8 V
  • Fixed 3.3V output with +5/-3% accuracy

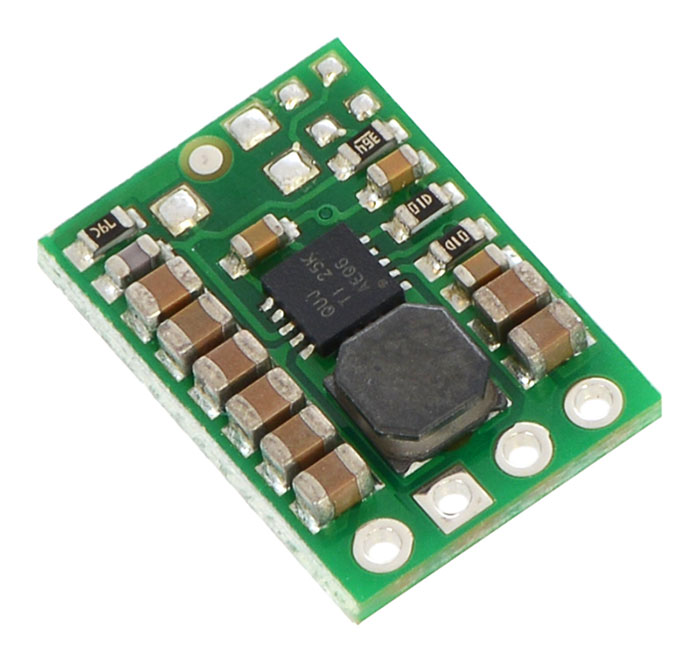

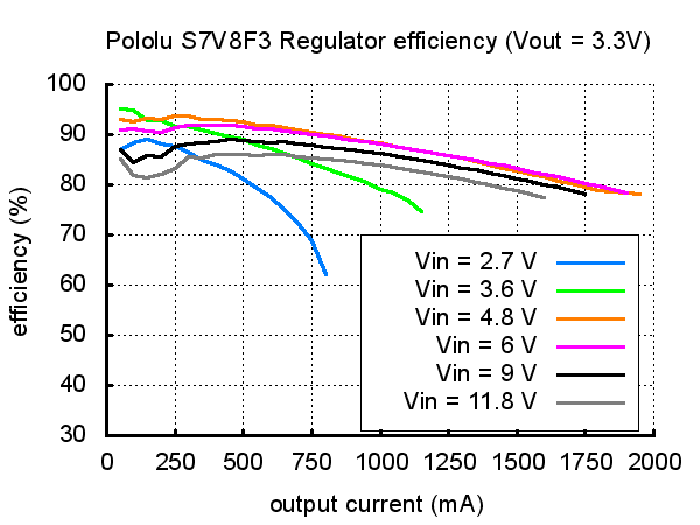

  • Typical continuous output current: 500 mA to 1 A across most combinations of input and output voltages (Actual continuous output current depends on input voltage. See Typical Efficiency and Output Current section below for details.)
  • Power-saving feature maintains high efficiency at low currents (quiescent current is less than 0.1 mA)
  • Integrated over-temperature and short-circuit protection
  • Small size

Specifications:

  • Minimum operating voltage:2.7V
  • Maximum operating voltage:11.8V
  • Maximum output current:1A
  • Output voltage:3.3V
  • Reverse voltage protectioncscart_No
  • Maximum quiescent current:0.1 mA

Documents:

Dimensions:

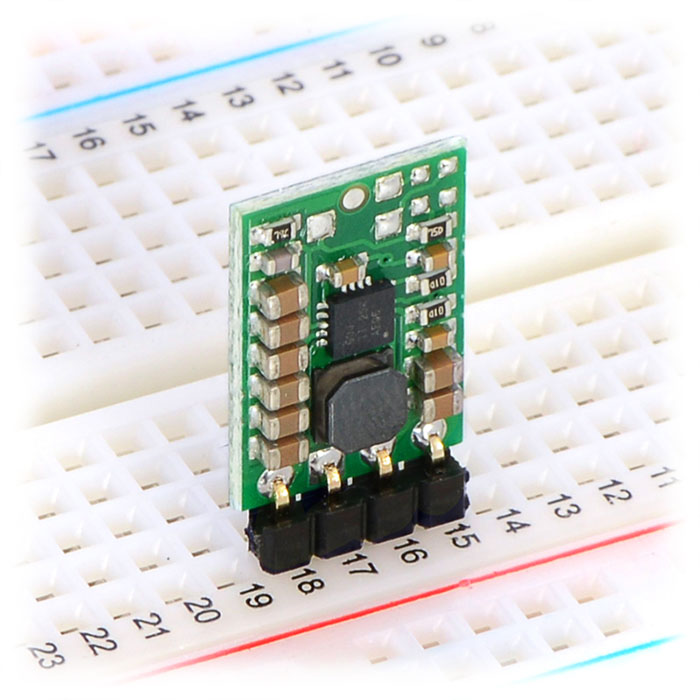

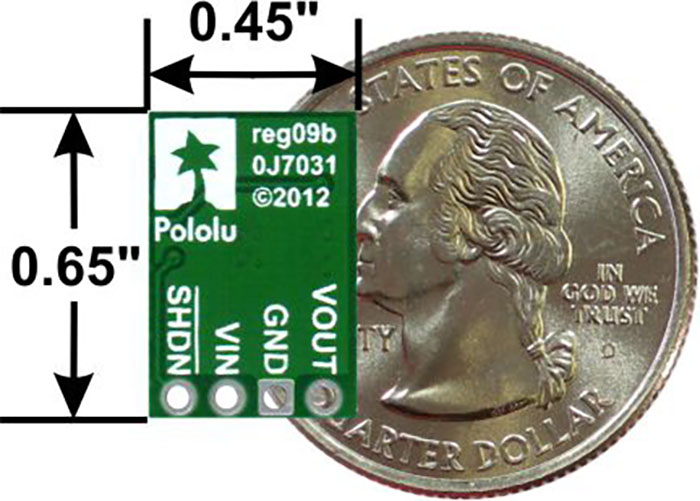

  • 11 x 17 x 3mm
