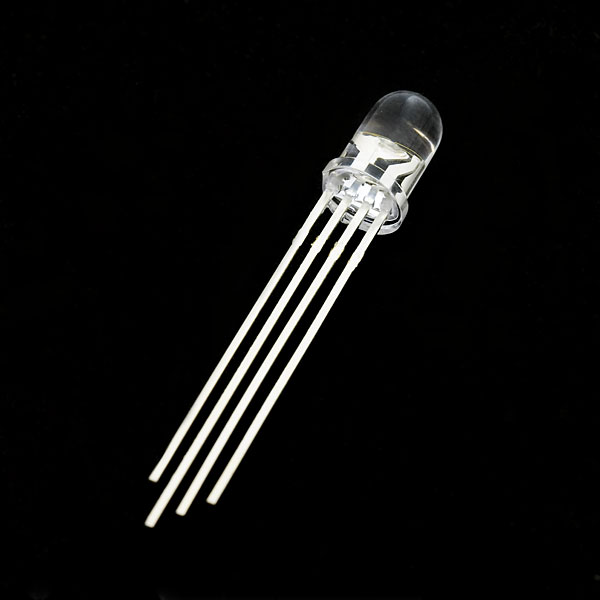

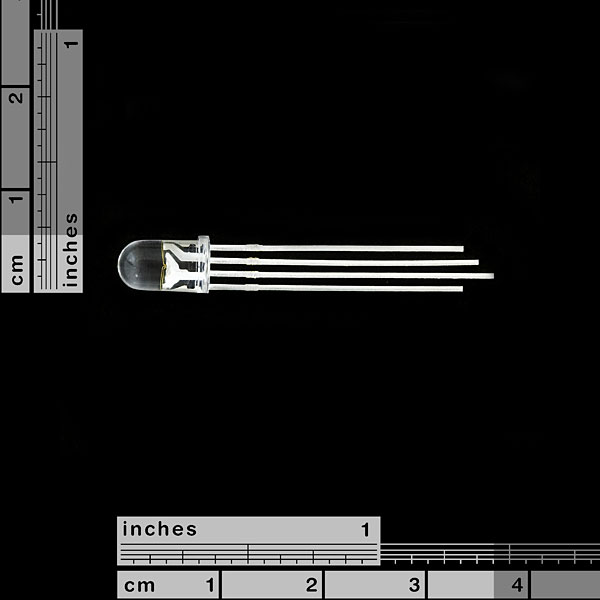

LED - RGB Clear Common Anode - 5mm

147 pc(s)
DIS-01583

$1.90

Ever hear of a thing called RGB? Red, Green, Blue? How about an RGB LED? These 5mm units have four pins: one for each color and a common anode. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Note: The datasheet below is for the common...
+

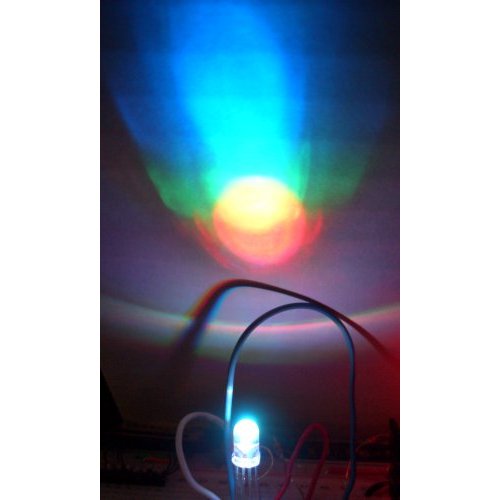

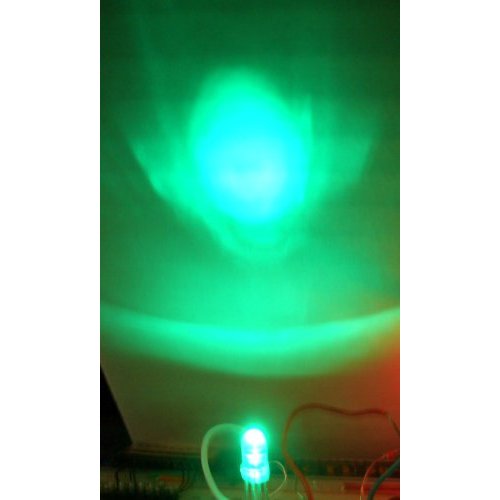

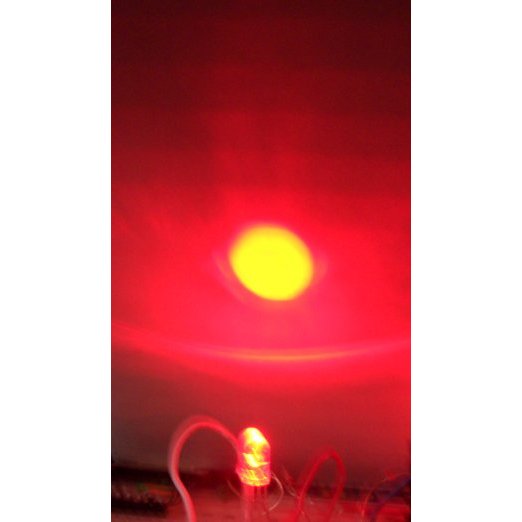

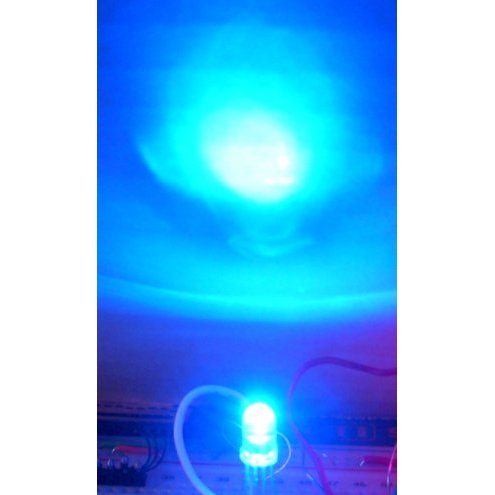

Ever hear of a thing called RGB? Red, Green, Blue? How about an RGB LED? These 5mm units have four pins: one for each color and a common anode. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors!

Note: The datasheet below is for the common cathode version of these LEDs, all of the values are the same except that instead of sharing a cathode, these share an anode. An updated datasheet will be added as soon as possible.

Features:

  • Forward Voltage (RGB): (2.0, 3.2, 3.2)V
  • Luminosity (RGB): (800, 4000, 900)mcd

Documents:

Good to know
