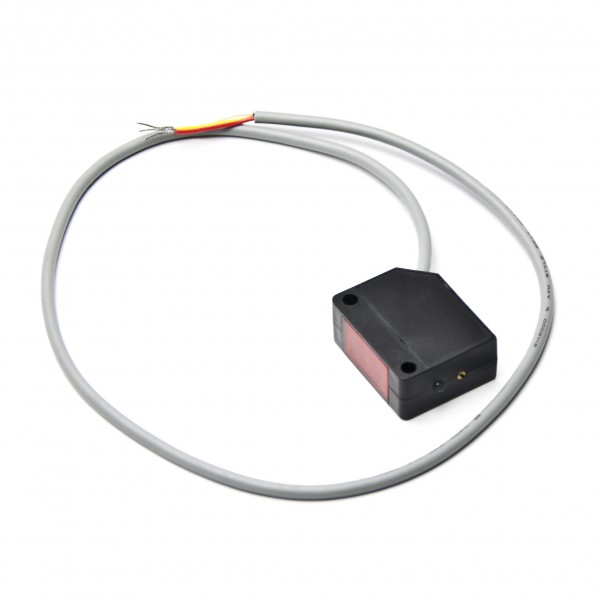

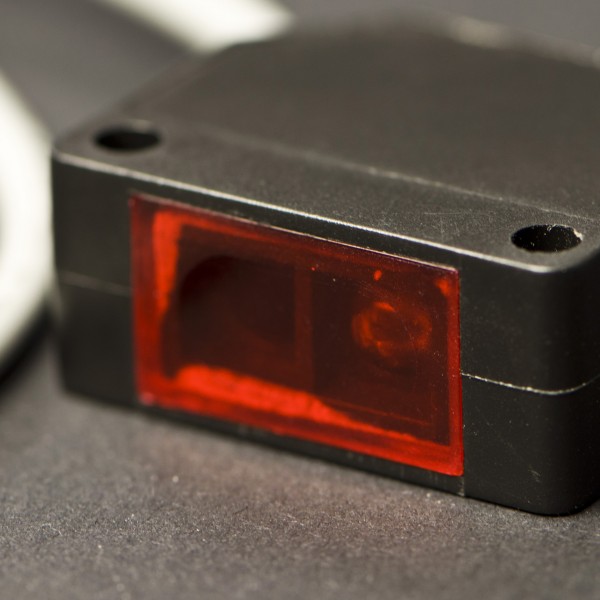

Adjustable Infrared Reflection Sensor (3- 50cm)

10 pc(s)
SEN-01552

$16.50

This is a simple to use infra-read sensor switch. Power it up with 5V and it can detects object within 3 to 50cm. It is widely used in mobile robot for obstacle detection, interactive media, industrial assembly line and many other applications. The detection distance can be adjusted from 3-...
+

This is a simple to use infra-read sensor switch. Power it up with 5V and it can detects object within 3 to 50cm. It is widely used in mobile robot for obstacle detection, interactive media, industrial assembly line and many other applications.

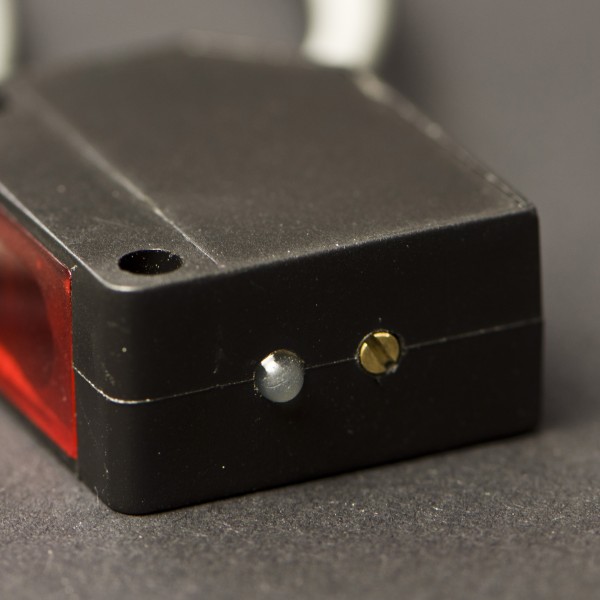

The detection distance can be adjusted from 3- 50cm. It comes with a LED to show the sensing status.

The output pin is an open collector meaning you will need a pull up resistor on the output pin. The open drain setup allows multiple sensors to be connected on a single input pin. If any of the motion sensors go off, the input pin will be pulled low.

Pinout

  • Red - 5V
  • Yellow - Open collector Output
  • White - GND

Features

  • Adjustable detection distance
  • Low power consumption
  • Compact size

Specifications

  • Power supply: 5V
  • Working current: <100mA
  • Detection distance: 3 - 50cm
  • Response time: <2ms
  • Digital output

Dimensions: 30mm(L) x 20mm(W) x 13mm(H)
