DRV8833 Dual Motor Driver Carrier

11 pc(s)
RBT-01521

$7.50

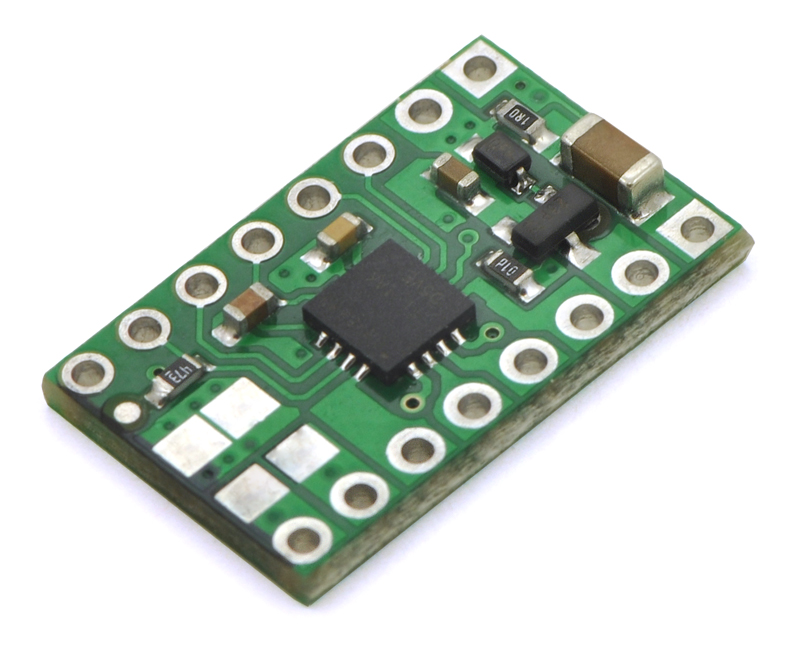

This tiny breakout board for TI’s DRV8833 dual motor driver can deliver 1.2 A per channel continuously (2 A peak) to a pair of DC motors. With an operating voltage range from 2.7 to 10.8 V and built-in protection against reverse-voltage, under-voltage, over-current, and...
+

This tiny breakout board for TI’s DRV8833 dual motor driver can deliver 1.2 A per channel continuously (2 A peak) to a pair of DC motors. With an operating voltage range from 2.7 to 10.8 V and built-in protection against reverse-voltage, under-voltage, over-current, and over-temperature, this driver is a great solution for powering small, low-voltage motors.

Features

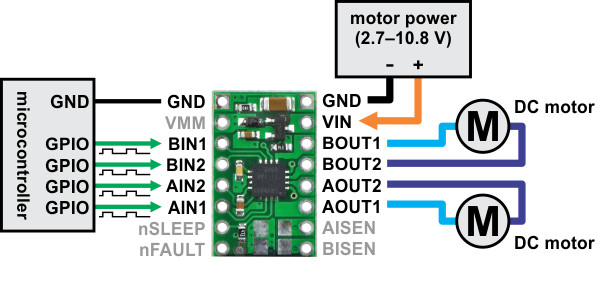

  • Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
  • Operating voltage: 2.7‌‌–10.8 V
  • Output current: 1.2 A continuous (2 A peak) per motor
  • Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor
  • Inputs are 3V- and 5V-compatible
  • Under-voltage lockout and protection against over-current and over-temperature
  • Reverse-voltage protection circuit
  • Current limiting can be enabled by adding sense resistors (not included)

Specifications:

  • Motor driver: DRV8833
  • Motor channels: 2
  • Operating voltage: 2.7V to 10.8V
  • Continuous output current per channel: 1.2A
  • Peak output current per channel: 2A
  • Continuous paralleled output current: 2.4A
  • Reverse voltage protection: Yes

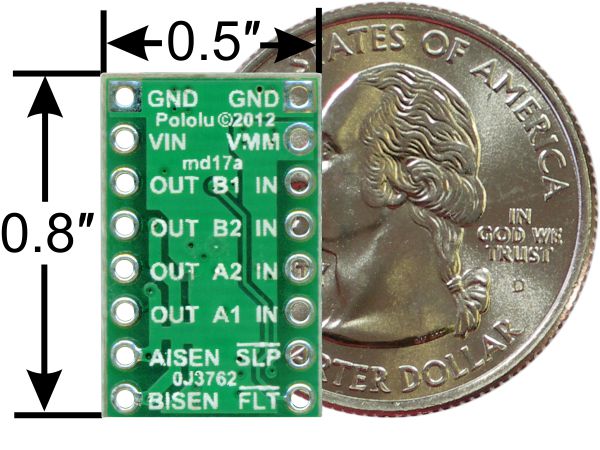

Dimensions:

  • Size: 0.5" x 0.8"
  • Weight: 1.0g
